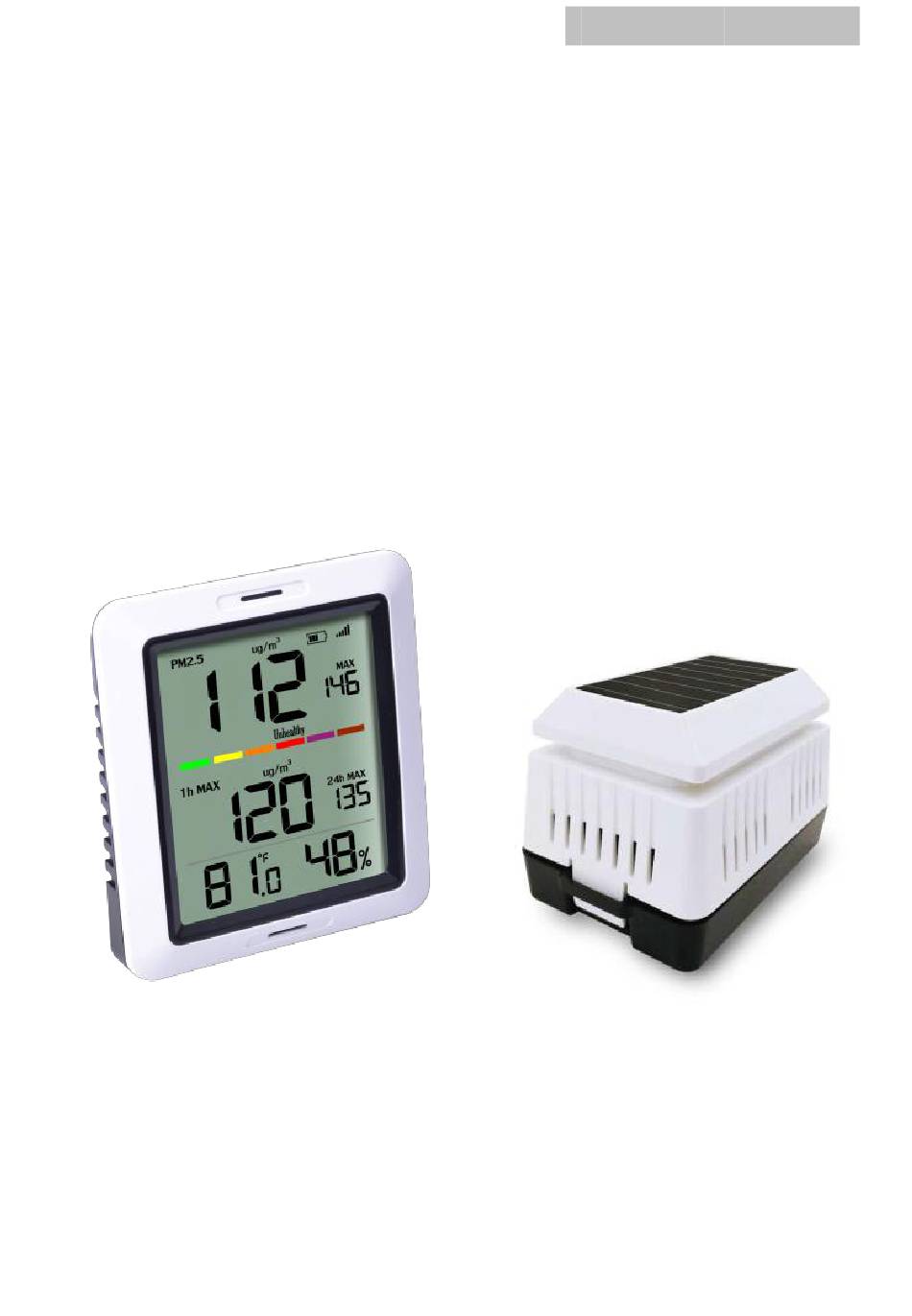

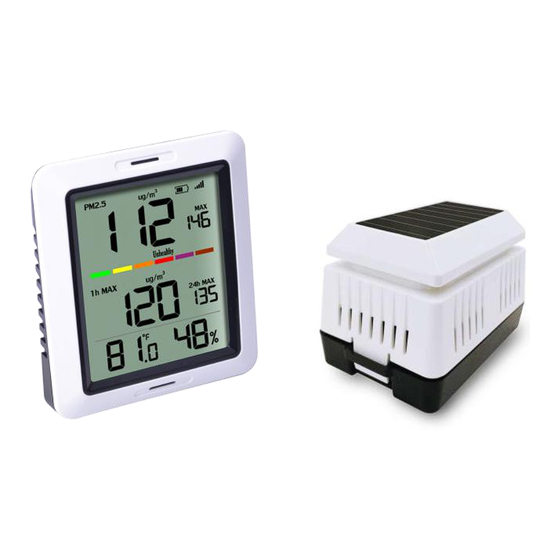

- Page 1 Instruction Manual Wireless Air Quality Monitor with Indoor Temperature and Humidity Model: WH0290...
-
Page 2: Table Of Contents
Instruction Manual Contents 1. Introduction............2 2. Get Started............2 2.1 Parts List............2 2.2 Air Quality Sensor Set Up......3 2.3 Display Console Set Up......5 2.3.1 Display Console Layout......7 3. Wireless Sensor Installation......8 4. Console Operation..........9 4.1 °C/°F............9 4.2 MAX............9 5. -
Page 3: Introduction
Instruction Manual 1. Introduction Thanks for your purchasing of the WH0290 Wireless Quality Monitor with Indoor Temperature and Humidity. To ensure the best product performance, please read this manual and retain it for future reference. 2. Get Started Note: Power up sequence can be performed in... -
Page 4: Air Quality Sensor Set Up
Instruction Manual 2.2 Air Quality Sensor Set Up 1. Remove the battery door on the base of the air quality sensor as shown in Figure 1 Figure 1... - Page 5 Instruction Manual Solar panel Battery Compartment Cover Red LED Indicator (RF transmission) Blue LED Indicator (charging status) USB Port Battery Compartment 2. Insert two AA battery. 3. After inserting the battery, the remote sensor LED indicator will light for 4 seconds, and then flash once per 10 minutes thereafter.
-
Page 6: Display Console Set Up
Instruction Manual 2.3 Display Console Set Up Move the remote about 2 to 3m away from the display console (if the sensor is too close, it may not be received by the display console). Remove the battery door on the back of the display, as shown in Figure 2. - Page 7 Instruction Manual All of the LCD segments will light up for a few seconds to verify all segments are operating properly. Full Display Replace the battery door, and fold out the desk stand and place the console in the upright position. The console will instantly display indoor temperature and humidity.
-
Page 8: Display Console Layout
Instruction Manual 2.3.1 Display Console Layout Figure 3 1. Current PM 2.5 value 2. Air Quality Level 3. 1h MAX PM 2.5 value 4. Indoor Temperature 5. Indoor Humidity 6. 24h MAX PM 2.5 value 7. History MAX PM 2.5 value 8. -
Page 9: Wireless Sensor Installation
Instruction Manual 3. Wireless Sensor Installation Outdoor Installation Use four screws to fix the base of the outdoor sensor on a flat surface. -
Page 10: Console Operation
Instruction Manual 4. Console Operation Note: The console has two buttons for easy operation: 【 °C/°F 】 button (on the left), and 【MAX】button (on the right). 4.1 °C/°F Short press 【 °C/°F 】 button to select the temperature unit: °C/°F 4.2 MAX Press the MAX button for 5s to clear the history max and 24h max PM 2.5 value. -
Page 11: Best Practices For Wireless Communication10
Instruction Manual 6. Best Practices for Wireless Communication Note: To insure proper communication, place the remote sensor on a flat surface. Do not lean or upside down it to avoid any damage. Keep the console several feet away from computer monitors and TVs. 7. -
Page 12: Appendix
Instruction Manual 8. Appendix About the Air Quality Levels (ug/m3, Health Implications Cautionary Statement Pollution 24-hour (for PM2.5) Level average) Air quality is considered satisfactory, and air 0 - 50 Good 0.0-12.0 None pollution poses little or no risk Air quality is acceptable;... -
Page 13: Specifications
Instruction Manual 9. Specifications 9.1 Wireless Specifications Line of sight wireless transmission (in open air): 300feet(100meters) Frequency: 433/915/868 MHz (optional) Update Rate: 10 minutes 9.2 Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution... -
Page 14: Fcc Statement
Instruction Manual NI-MH batteries(battery life: 3 weeks) 2. It's recommended recharge outdoor sensor every two week. 3. Charge time: 3h (The blue LED indicator will light when in charge and be off when full charged) 4.Charge Method: USB charge(USB Cable included) 10. - Page 15 Instruction Manual interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 16: Warranty Information
Instruction Manual other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. 11. Warranty Information We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized. We provide a 1-year limited warranty on this product against...
