AEV 311 2018/2019

User Manual

Table of Contents

Summary of Contents for AEV 311

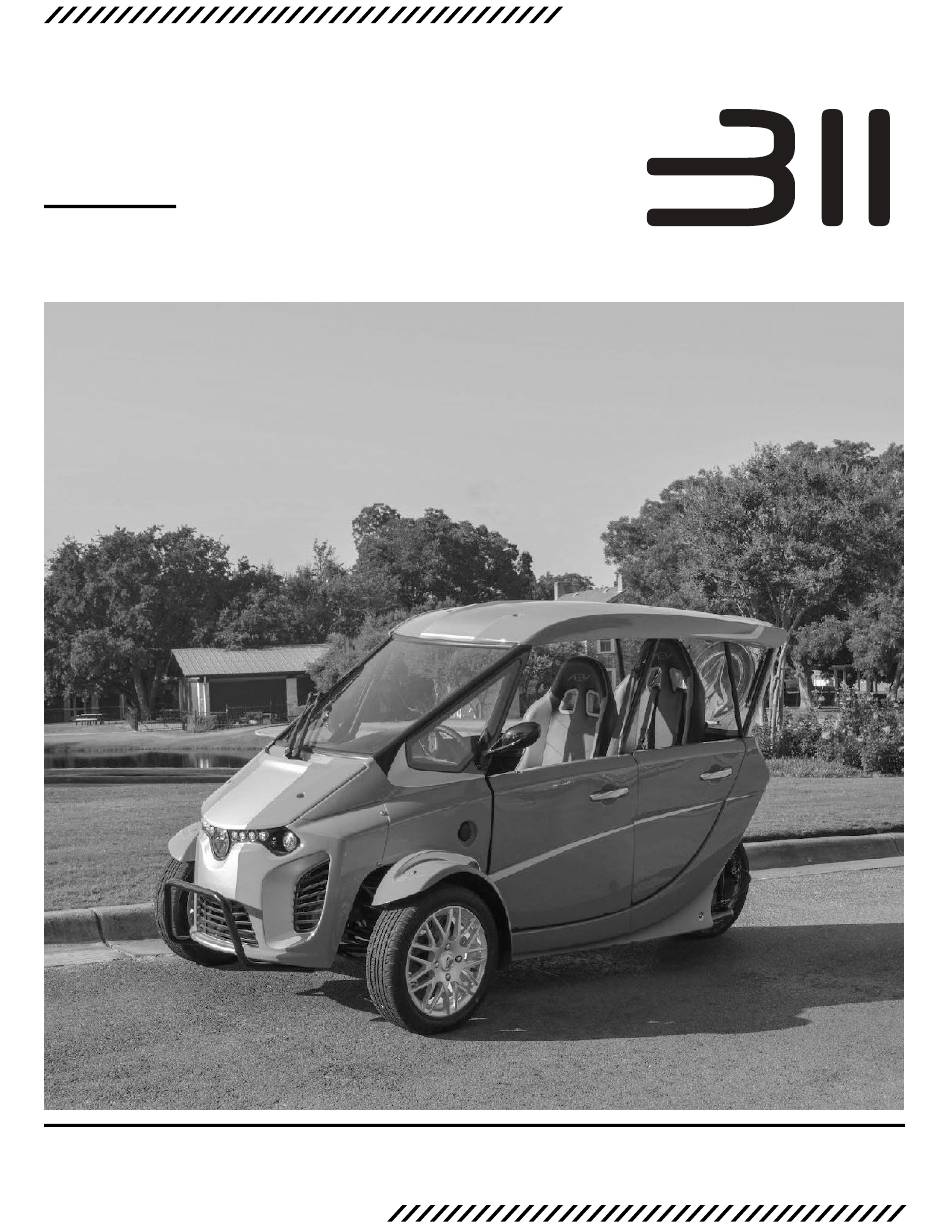

Page 1   AEV 311 2018/2019 User Manual...
Page 2: Table Of Contents
Table of Contents Table of Contents Welcome Important Safety Information Getting to Know Your AEV 311 Batteries & Charging Operation Maintenance Warranties Page ! of ! Document #: A311UM-R3...
Page 3: Welcome
Descriptions, depictions and/or procedures in this document are intended for reference only. No liability can be accepted for omissions or inaccuracies. AEV reserves the right to make changes at any time, without notice and without incurring obligation to to make the same or similar changes to vehicles previously manufactured.
Page 4: Important Safety Information
Important Safety Information For the safe and enjoyable operation of your AEV 311 vehicle, be sure to to follow the instructions and recommendations in this manual. We recommend you keep the Quick Start Guide with your vehicle, and a digital copy of this manual at home. Upon operator or ownership changes or if your owner’s manual is lost please contact your authorized AEV Dealer, AEV Customer Support or visit our website to download a current version.
Page 5: Safety Guidelines
Helmet Laws License Requirements Street Legal Helmet Laws vary from state to The classification of your AEV 311 Your AEV 311 meets all legal state and are dependent on AEV is state dependent. Most states requirements and is equipped for 311 classification.
Page 6 ★ Until you are thoroughly familiar with your AEV 311 and its controls, practice driving where there is little or no traffic and in different weather conditions. ★ Practice braking in a safe area to become familiar with the feel of the AEV 311 brakes before driving in traffic.
Page 7 Your authorized AEV dealer can provide battery-related service. ★ Do not carry a passenger until you are comfortable with all components of this vehicle, including acceleration, braking and turning.
Page 8 Use Only Approved Parts Equipment Modifications Warranty Never install any equipment or The warranty on your vehicle is Use only AEV-approved make vehicle modifications to terminated if any equipment has accessories, and familiarize increase the speed or power of been added to the vehicle, or if yourself with their function and the vehicle.
Page 9 ★ Insulate any tools used within the battery area to prevent sparks or battery explosion caused by shorting the battery terminals or wiring. Remove the batteries, or cover the exposed terminals with an insulating material. FOR MORE INFORMATION ABOUT SAFETY PLEASE CONTACT AEV CUSTOMER SERVICE.   Page ! of ! Document #: A311UM-R3...
Page 10: Getting To Know Your Aev 311
Getting to Know Your AEV 311 Visual Tour- Exterior Features Vehicle Dimensions Page ! of ! Document #: A311UM-R3...
Page 11: Vehicle Specifications
Vehicle Specifications PERFORMANCE SAFETY Chassis: Reinforced Steel / Coated   Top Speed: Up to 50 mph / 80 km/h Grade: Up to 25%  Suspension - Front: Double A-Arm Independent Payload Capacity: 2 passenger / 1 Passenger + Cargo Suspension - Rear: Rigid Fork Swing Arm  Turning Radius: 30 ft.
Page 12 To Start the AEV 311 with the key present: ★ « D » position: « Full power» mode of the vehicle. ★ Ensure the parking brake is engaged in the up This is the normal driving mode.
Page 13 ★ The Gear Selector is lighted to indicate its use. ★ Special Notes - since the AEV 311 is an Electric ★ Make sure the Gear Selector is in the « N » Vehicle (EV) there is no engine sound upon startup.
Page 14: Digital Speedometer
If you discover signs of wear or damage, do not ★ Battery Status: The Digital Reading shown on the operate the vehicle. Your authorized AEV dealer can Speedometer (lower left corner) is indicated by 6 provide service. bars.
Page 15 Back-Up Camera AEV 311 vehicles are equipped with an accessory back-up camera. The back-up camera is not intended to replace standard driving practices of checking your surroundings before operating in reverse. Always check for pedestrians, vehicles and other obstacles before operating in reverse.
Page 16 Controls & Switches Personal Thermal Control (PTC) Button Fan On/Off Button When pushed this switch engages the on-board heater. The Fan On/Off button engages the onboard fan to The default position is in the off position to allow normal circulate air via the two vents. This circulates ambient air operation of the vehicle.
Page 17 Gear Selector & Start/Stop Button. It is only activated when the vehicle is plugged in using the provided charging cable. (See How to Charge Your AEV 311) for full steps to charge. ★ The Light Ring around the gauge will light Red when 1st plugged into external power to indicate charging is active.
Page 18 Controls & Switches - Steering Column Light & Turn Indicator Control This combination switch is located on the left side of the steering wheel on the column. It controls both front and ★ When you turn right: operate the lever upwards. rear lights as well as turn indicator.
Page 19 Controls & Switches - Steering Column Windshield Wiper Controls This combination switch is located on the right side of the To spray washer fluid onto the windshield to clean during steering wheel on the column. It controls use and speed of wiping depress the button at the tip of the lever.
Page 20 LCM - Multi-Function Display On-Board Digital Command Center - This system is located to the right of the steering wheel Pro Tips just below the PTC, Fan and Hazard Switches. The LCM is ★ There are manual controls familiar to many users for a touchscreen based system that operates/controls 3 actions such as Volume Up/Down, Radio Station primary functions:...
Page 21 WARNING Driving while distracted can result in loss of vehicle control, crash and serious injury or death. Use extreme caution when using any device that may take your focus off the road. Make sure you are aware all applicable local laws that may affect the use of electronic devices while driving.
Page 22 ON. floor. ★ AEV 311 uses hydraulic brakes. This type of braking Holding the accelerator pedal down continuously will system requires a bit more pressure to slow or stop.
Page 23 ★ The park brake is adjustable and should be checked periodically as outlined in the Periodic ★ To set the park brake, pull the park brake lever Maintenance Chart. Your authorized AEV dealer upward. can assist. ★ To release the park brake, press and hold the park brake release and move the lever to the disengaged position.
Page 24 Seat Adjustments - Front and Rear Positioning Seatback (shown above) The seat adjustment Lever is located on the front side of The Seatback Adjustment Lever is located on the right side the each seat and mounted to the seat. of the of each seat and mounted within the seat. ★...
Page 25: Seat Belt Inspection
Seatbelts The AEV 311 is equipped with safety belts for both driver and passenger seats. The driver seat is equipped with a three-point lap and diagonal seat belt. The passenger seat is equipped with a four-point lap and shoulder seat belt. Each will be shown below.
Page 26 Drivers Seat Belt Procedure To wear the seat belt properly, follow this procedure: 1. Pull the seat belt latch downward and across your chest toward the buckle at the inner edge of the seat. 2. Slide the buckle up the webbing as far as needed for the belt to reach across your hips. The belt should fit snugly across your hips and diagonally across your chest.
Page 27 Passenger Seat Belt Positioning To wear the seat belt properly, follow this procedure: 1. Slide one arm through the upper shoulder belt, repeat for the other arm. Make sure the shoulder belts are not twisted. 2. Push the latch plate into the buckle until it clicks. 3.
Page 28: Batteries & Charging
Each vehicle is programmed at the factory for a particular battery type. Switching battery types should be done only by an authorized service technician. Your authorized AEV dealer can provide battery-related service. Battery Performance Tips ★ New batteries will not perform to their fullest capacity until they have been discharged and recharged 20 to 30 times.
Page 29 Avoid temperature extremes when choosing a storage area. If the combined voltage of all batteries reaches 36 volts or less, a safety feature in the on- board charger will not allow the charger to activate. Please contact AEV customer support. Battery Charging...
Page 30 Your vehicle is equipped with a standard charge receptacle. The battery charge receptacle is located on the front left side of the vehicle behind the access door. Battery Charge Receptacle The following information applies to use of the standard charge receptacle: When charging the vehicle, always use a standard 3-wire grounded extension cord of one of the following types: ★...
Page 31   Pro Tip: Always use a 110-volt AC, 20 amp breaker outlet. A GFI (Ground Fault Interrupt) receptacle is recommended. See your authorized AEV dealer if you do not have a GFI receptacle at your regular recharge site. Page !
Page 32 NOTICE The majority of garage and external outlets are wired to support >16 amp devices which supports charging of the AEV311 as outlined in this section. In the event, you are charging from a GFCI-enabled outlet, with <16 amp support you may trip circuit interruption.
Page 33: Operation
Operation Pre-Ride Inspections To keep your vehicle in safe operating condition, always perform the recommended pre-ride inspections before each use of the vehicle. This is especially important when removing the vehicle from storage. WARNING Failure to perform the recommended pre-ride inspections could result in component failure while riding, which could result in serious injury or death.
Page 34 ITEM REMARKS PAGE Brake Fluid Ensure proper level Indicator lights/switches Ensure operation Headlamp Check operation Brake light/tail lamp Check operation Turn signals Ensure operation of all signal lamps Mirrors Adjust mirrors for proper side and rear view Seat belts Check length of belt for damage, check latches for proper 26-27 operation Steering...
Page 35 State laws, regulations and requirements within your region of operation. . The AEV 311 handles differently than 2-wheel motorcycles, other 3-wheel and 4-wheel vehicles. The following information will help you understand the features and characteristics that make operation and handling of this vehicle different from the operation and handling of other on-road vehicles.
Page 36 Driving Procedure 1. Disconnect the charging cable. 2. Sit in the driver's seat and fasten the seat belt. Make sure passengers are seated with seat belts secured. 3. Adjust mirrors as needed. 4. Apply the brakes. 5. Press the Stop/Start button to power the vehicle ON. 6.
Page 37: Driving In Reverse
WARNING A rolling vehicle can cause serious injury or death. Always set the park brake when leaving the vehicle unattended. Driving In Reverse Follow these precautions when operating in reverse: 1. Always check for obstacles or people behind the vehicle. Always inspect left and right fields of vision before backing.
Page 38: Parking The Vehicle
★ Set the parking brake. Transporting the Vehicle When transporting the AEV 311 on a trailer, always use a trailer with an approved load rating greater than the AEV 311’s curb weight plus any installed accessories or cargo. Refer to the specifications section beginning on page 11/12.
Page 39 Transport the vehicle in a closed trailer if possible. Use the following guidelines when transporting the vehicle on an open trailer. 1. Always transport the AEV vehicle facing forward on the trailer. 2. Set the park brake. Remove the key to prevent loss.
Page 40: Maintenance
Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, genuine AEV parts are available from your authorized AEV dealer. WARNING Always wear safety glasses or approved eye protection when servicing the vehicle.
Page 41: Brake Fluid
MONTHLY MAINTENANCE PAGE Wash tops and terminals of batteries and allow to dry Check cables and terminal connections Check for worn insulation or frayed wires Check tires for correct air pressure and wear 44-45/11 Check brake fluid reservoir for proper brake fluid level. 41-42 Check for system leaks.
Page 42: Brake Inspection
2. Check the brake pedal for excessive travel or a spongy feel. If there is excessive travel or a spongy feel, verify brake fluid level (See Page 43). If there is sufficient brake fluid, then refer to an authorized AEV service center.
Page 43: Fuses And Relays
If you experience electrical failures not related to the batteries, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. If you suspect a relay or diode needs replacement, your authorized AEV dealer can assist. WARNING Before servicing the vehicle’s electrical system, always disconnect the main power...
Page 44 Fuse Diagram - Open the panel to access the fuse box. The fuse box is located under the hood on the left side of the vehicle behind the brake fluid reservoir. Autodesk RD/Y 1 BK/W 1 RD/Y W 1 BK/W Controller DC-DC G /W...
Page 45 Wheel Removal & Installation ★ In the event you need to remove or install a wheel, please contact and make arrangements with your Authorized AEV Dealer or contact AEV customer support for connection to the appropriate AEV Authorized Service Center.
Page 46 Poor lighting can result in reduced visibility when driving. Clean lights frequently and replace burned out lamps promptly. AEV 311 uses LED lights for all exterior lamps and signals. If an LED light fails to work properly, the entire assembly must be replaced. Your authorized dealer can provide service.
Page 47 Battery Compartment There are 6 batteries in the AEV 311 and they located within a designated area under the front and passenger seats.
Page 48 Check Battery Cables and Wiring Check the battery compartment for any signs of worn insulation, frayed cables or damaged cable ends. If found, see your authorized AEV dealer or other qualified service person for service before operating. WARNING Improper handling of high voltage wiring, batteries or control systems could result in serious injury or death by electric shock.
Page 49: Battery Replacement
Battery Replacement Battery and electrical system service must be performed only by an authorized service facility. When battery replacement is necessary, your authorized AEV dealer can provide this service. WARNING Handling batteries and electrical components improperly can result in serious injury or death.
Page 50: Cleaning The Interior
Cleaning the Seats AEV Foaming All Surface Cleaner can be used to clean the seats. Rubbing seats with warm water and a clean, damp cloth will also remove dirt. Substances such as tar, asphalt and other soils will stain if not removed quickly.
Page 51: Storing The Vehicle
Do not cover the vehicle while the charger is connected. Dangerous levels of hydrogen gas could accumulate. Inspect and Lubricate Have your authorized AEV dealer inspect all cables and lubricate all areas of the vehicle as part of servicing. Page ! of !
Page 52: Removal From Storage
Check Fluid Levels Inspect the fluid levels. Add or change fluids as recommended. Change brake fluid every two years and any time the fluid looks dark or contaminated. Removal from Storage Any time the vehicle will be parked for more than 10 days, follow the recommended storage procedures: 1.
Page 53: Warranties
Warranties Limited Warranty Austin EV, Inc. (AEV), 21 Cypress Blvd, Suite 1080, Round Rock, TX, 78665 gives a TWO YEAR or 8,000 MILE (12,900 km), whichever comes first, LIMITED WARRANTY on all components (except batteries) of your AEV vehicle against defects in material or workmanship.
Page 54 25% of the cost of an approved AEV battery at a AEV dealer REGISTRATION At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to AEV within thirty (30) days. Upon receipt of this registration, AEV will record the registration for warranty. No verification of registration will be sent to the purchaser as the copy of the Warranty Registration Form will be the warranty entitlement.
Page 55 AND BATTERY PACK WARRANTY LIMITATIONS OF WARRANTIES AND REMEDIES This AEV limited warranty excludes any failures that are not caused by a defect in material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling.
Page 56 LIMITATIONS OF WARRANTIES AND REMEDIES The exclusive remedy for breach of this warranty shall be, at AEV’s sole option, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
Page 57: How To Get Service
HOW TO GET SERVICE Warranty or Service Bulletin repairs must be done by an authorized AEV dealer. If you move or are traveling within the country where your vehicle was purchased, Warranty or Service Bulletin repairs may be requested from any authorized AEV dealer. ...
Page 58 AUTHORIZED LOCATION. This policy does not apply to products that have received authorization for export from AEV. Dealers may not give authorization for export. You should consult an authorized dealer to determine this product’s warranty or service coverage if you have any questions. This policy does not apply to products registered to government officials or military personnel on assignment outside the country of the selling dealer’s authorized location.
Page 59 Page ! of ! Document #: A311UM-R3...
Page 60 Page ! of ! Document #: A311UM-R3...
Page 61 AEV Technologies, Inc. 21 Cypress Boulevard, Suite 1080  Round Rock, TX 78665 aevgo.com Page ! of ! Document #: A311UM-R3...
