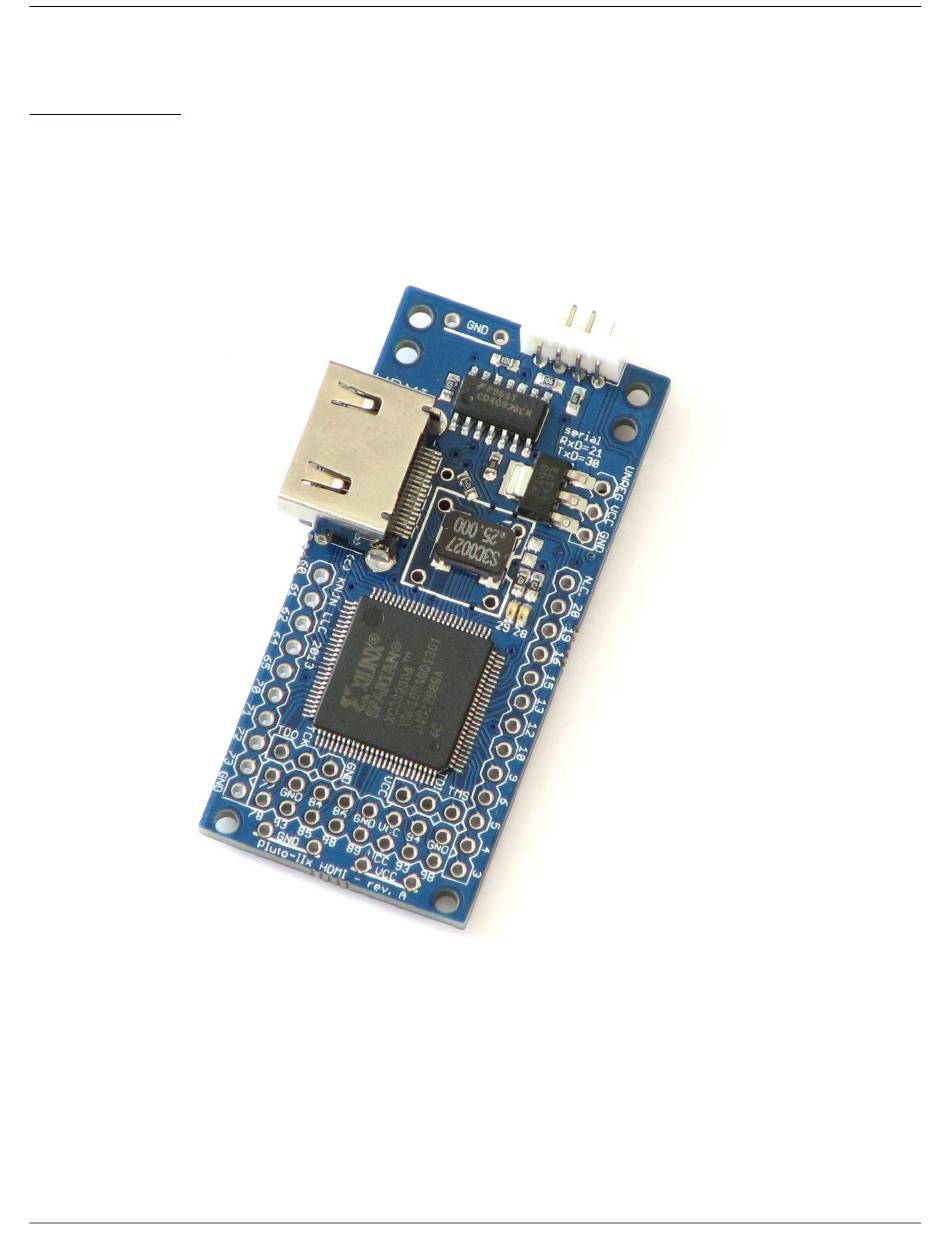

KNJN Pluto Manual

Fpga rs-232 development boards
Hide thumbs
Table of Contents

Advertisement

Quick Links

FPGA RS-232 development boards
© 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 KNJN LLC
http://www.knjn.com/
This document applies to the following boards:
●
Pluto rev. F
●
Pluto-II rev. H
●
Pluto-IIx rev. A
●

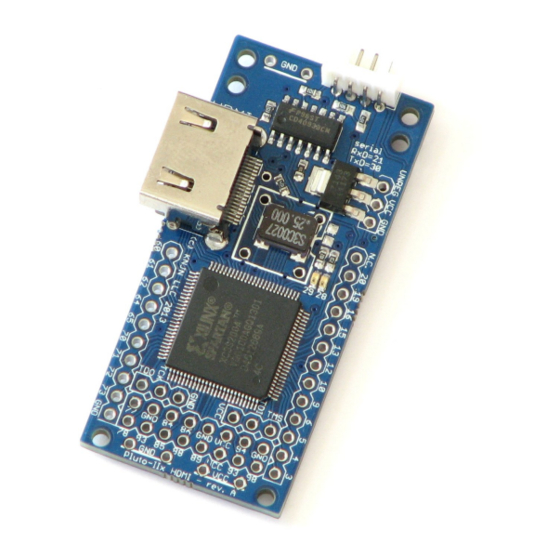

Pluto-IIx HDMI
●
Pluto-3 rev. B and C
Document last revision on October 19, 2017
FPGA RS-232 development boards
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pluto and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KNJN Pluto

  • Page 1 FPGA RS-232 development boards © 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 KNJN LLC http://www.knjn.com/ This document applies to the following boards: ● Pluto rev. F ● Pluto-II rev. H ● Pluto-IIx rev. A ●...

  • Page 2: Table Of Contents

    5 FPGAconf extras................................9 5.1 Auto configuration mode............................. 9 5.2 Scrollbar..................................9 5.3 Terminal..................................9 6 FPGA configuration using Quartus-II JTAG support (Pluto-II/-3)..................10 6.1 JTAG requirements..............................10 6.2 JTAG configuration..............................10 7 FPGA project using Quartus-II (Pluto/-II/-3)........................11 7.1 Create a new project..............................11 7.2 A simple start................................
  • Page 3 14.3 Power consumption..............................19 14.4 Voltage regulator temperature..........................19 15 Connecting the Pluto boards to a PC..........................20 15.1 Serial connection..............................20 15.2 With a TXDI................................20 15.3 With a TXDI/MAX232 or TXDI/FTDI........................20 15.4 Without a TXDI............................... 20 16 Sample C code for RS-232 Win32 send & receive......................21 17 Board checklist................................
  • Page 4 FPGA RS-232 development boards Page 4...

  • Page 5: Welcome

    1.3 The Pluto boards This guide applies to five different boards (Pluto, Pluto-II, Pluto-IIx / HDMI and Pluto-3). Along this document, when a paragraph apply to all of them, they are collectively named “the Pluto boards” or “the FPGA boards”.

  • Page 6: Software Tools

    2 Software tools 2.1 Important downloads Each KNJN FPGA board is provided with a “startup-kit” that includes the board documentation and other files (mainly example source code). The startup-kit doesn't include some important software tools that are required as you experiment...

  • Page 7: Fpgaconf

    4. “Use alternate COM port for the terminal” (useful if you want the terminal window to use a different port) 5. “Keep COM port open after configuration” (some PCs reset the Pluto board unless this is enabled) 6. “Turbo mode” (allows faster FPGA configuration, works on most boards)

  • Page 8: Fpga Boot-Prom (Pluto-Ii/-Iix/-Iix Hdmi/-3)

    For Pluto-IIx, use ISE iMPACT (part of ISE WebPACK). ● 4.5 Boot-PROM on-demand FPGA configuration On the Pluto-IIx/HDMI/-3 boards, the boot-PROM can also configure the FPGA “on-demand” (i.e. under software control after power-up). Here's a summary of all the boot-PROM features.

  • Page 9: Fpgaconf Extras

    FPGAconf has a “scrollbar window” that is activated by pressing CTRL-S. Every time the scrollbar position is changed, a byte between 0 and 255 is sent to the Pluto board (depending of the bar position). That can be used to control easily a servomotor for example, or other simple applications that can be controlled by a single byte.

  • Page 10: Fpga Configuration Using Quartus-Ii Jtag Support (Pluto-Ii/-3)

    6 FPGA configuration using Quartus-II JTAG support (Pluto-II/-3) 6.1 JTAG requirements To use the JTAG port, you need a compatible JTAG cable (like an Altera ByteBlaster-MV/II or USB-Blaster) connected to your board's JTAG connector (chapter 10). 6.2 JTAG configuration Follow these steps: In Quartus-II, open the “Programmer”...

  • Page 11: Fpga Project Using Quartus-Ii (Pluto/-Ii/-3)

    7 FPGA project using Quartus-II (Pluto/-II/-3) Pluto, Pluto-II and Pluto-3 are configured from SOF or RBF files generated by Altera’s Quartus-II software. 7.1 Create a new project 1. Run Quartus-II, and click on menu → File → New Project Wizard.

  • Page 12: Fpga Projects With Xilinx's Ise (Pluto-Iix/Hdmi)

    8 FPGA projects with Xilinx's ISE (Pluto-IIx/HDMI) The Pluto-IIx board is configured from BIT files generated by Xilinx's ISE software. 8.1 Create a new project 1. Run ISE Project Navigator, and click on menu → File → New Project. 2. Choose a project name, select the project location, and click Next.

  • Page 13: Fpga Connections

    Pluto-IIx board: it doesn't have a native HDMI port but can be fitted with an optional HDMI adapter. ● Pluto-IIx HDMI board: it has a native HDMI port, and can also use an optional HDMI adapter, so in effect has two ●...

  • Page 14: Txdi Connector

    Pins 2 & 3 are two FPGA IO pins. The board includes series termination resistors, and Zener protection diodes on ● these 2 signals (Pluto/-II/-3 only). Some revisions of Pluto-II have another secondary connector on the right side of the board, below the power ● header. FPGA RS-232 development boards Page 14...

  • Page 15: Jtag Connection

    The Pluto-IIx JTAG signals are accessible on pin headers next to the FPGA. 10.4 JTAG on Pluto-3 Pluto-3 has the regular Altera-style 10 pins header. A matching shrouded connector must be added to the board, like KNJN items 2450 or 2451, so that an Altera or compatible JTAG cable can easily be used.

  • Page 16: Flashy Boards

    Limited (1) Limited (1) No Pluto-II Pluto-IIx / HDMI Yes Pluto-3 (1) Pluto's FPGA cannot hold all the FlashyDemo functionality at once, so two FlashyDemo bitfiles are provided. Each covers a different set of features. (2) The KNJN color LCD item#5300 option can work as a FlashyDemo external display.

  • Page 17: Fpga Configuration Through Rs-232

    8.6µs, while sending 0xFE sends a pulse twice that long. Pulses are positive (inactive level is “0”) and they need to be separated by 30µs or so between them. To un-configure Pluto (before sending the RBF), send a “break”...

  • Page 18: Quartus-Ii Jtag Indirect Mode (Pluto-Ii/-3)

    Pluto-3, and a filename for a “.jic” file. 3. In “Input file to convert”, select the Cyclone EP1C3 for Pluto-II or EP2C5 for Pluto-3 as “Flash loader”, and the SOF file that you want to use for the boot-PROM as “SOF Data”.

  • Page 19: Power Requirements

    14 Power requirements The Pluto boards have their own voltage regulator, so don't have stringent requirements on a power supply. 14.1 Wall adapter Most common (semi-regulated) 5V to 10V “wall adapter” DC supply works fine. In practice, the Pluto boards work with an input voltage as low as 4.5V, or as high as 15V (although the voltage regulator...

  • Page 20: Connecting The Pluto Boards To A Pc

    FT_PROG utility if required). ● 15.4 Without a TXDI In the absence of a TXDI, the Pluto boards are shipped with a small cable. Connect it to a DB-9 female connector as follow: White wire to DB-9 pin 3. ●...

  • Page 21: Sample C Code For Rs-232 Win32 Send & Receive

    16 Sample C code for RS-232 Win32 send & receive #include <windows.h> HANDLE hCom; void ExitOnError(char*message) printf("%s error", message); exit(1); void OpenCom(char* COM_name) DCB dcb; COMMTIMEOUTS ct; hCom = CreateFile(COM_name, GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL); if(hCom==INVALID_HANDLE_VALUE) ExitOnError(COM_name); // can't open COM port if(!SetupComm(hCom, 4096, 4096)) ExitOnError("SetupComm");...

  • Page 22: Board Checklist

    If the FPGA doesn’t configure, check the following: 1. Make sure the board is powered with a correct voltage. You need 5V minimum at the input of your Pluto board. If you use a TXDI with an integrated 5V regulator, it requires at least 7V to be able to provide 5V to Pluto.

  • Page 23: Board Connectors And Headers, With Io Pin Assignments

    18 Board connectors and headers, with IO pin assignments 18.1 Pluto Pluto has 39+2 IOs available (the +2 are one clock and one dedicated input). Pin 39 is a dedicated clock input. ● Pin 38 can also be used as a clock input.

  • Page 24: Pluto-Ii

    18.2 Pluto-II Pluto-II has 50+1 IOs available (the +1 is one dedicated clock input). Pin 66 is a dedicated clock input. Pins 34, ● 72, 84 and 92 can also be used as clock inputs. All IOs use 3.3V powered banks that can use different IO standards like LVTTL3.3 or LVCMOS3.3 ●...

  • Page 25: Pluto-Iix

    18.3 Pluto-IIx All IOs use 3.3V powered banks that can use different IO standards like LVTTL3.3 or LVCMOS3.3 Pluto-IIx IOs are not directly 5V tolerant. Check the Spartan-3A user guide for more details. FPGA RS-232 development boards Page 25...

  • Page 26: Pluto-Iix Hdmi

    18.4 Pluto-IIx HDMI All IOs use 3.3V powered banks that can use different IO standards like LVTTL3.3 or LVCMOS3.3 Pluto-IIx IOs are not directly 5V tolerant. Check the Spartan-3A user guide for more details. An optional DIL8 oscillator can be added in the middle of the board (feeds FPGA clock pin 41).

  • Page 27: Pluto-3

    18.5 Pluto-3 Many pins can be used as clock: CLK6 (pin 89), CLK7 (pin 88), DPCLK2 (pin 47), DPCLK4 (pin 64), DPCLK6 (pin ● 87), DPCLK7 (pin 93), DPCLK8 (pin 119), DPCLK10 (pin 136). Also CLK3 (pin 22) is available on a pad.

  • Page 28: Mechanical Drawings

    19 Mechanical drawings All dimensions are given in inches (1” = 25.4mm). The grid is drawn using 0.1” steps (2.54mm). 19.1 Pluto FPGA RS-232 development boards Page 28...

  • Page 29: Pluto-Ii/-Iix/-Iix Hdmi

    19.2 Pluto-II/-IIx/-IIX HDMI FPGA RS-232 development boards Page 29...

  • Page 30: Pluto-3

    19.3 Pluto-3 FPGA RS-232 development boards Page 30...
