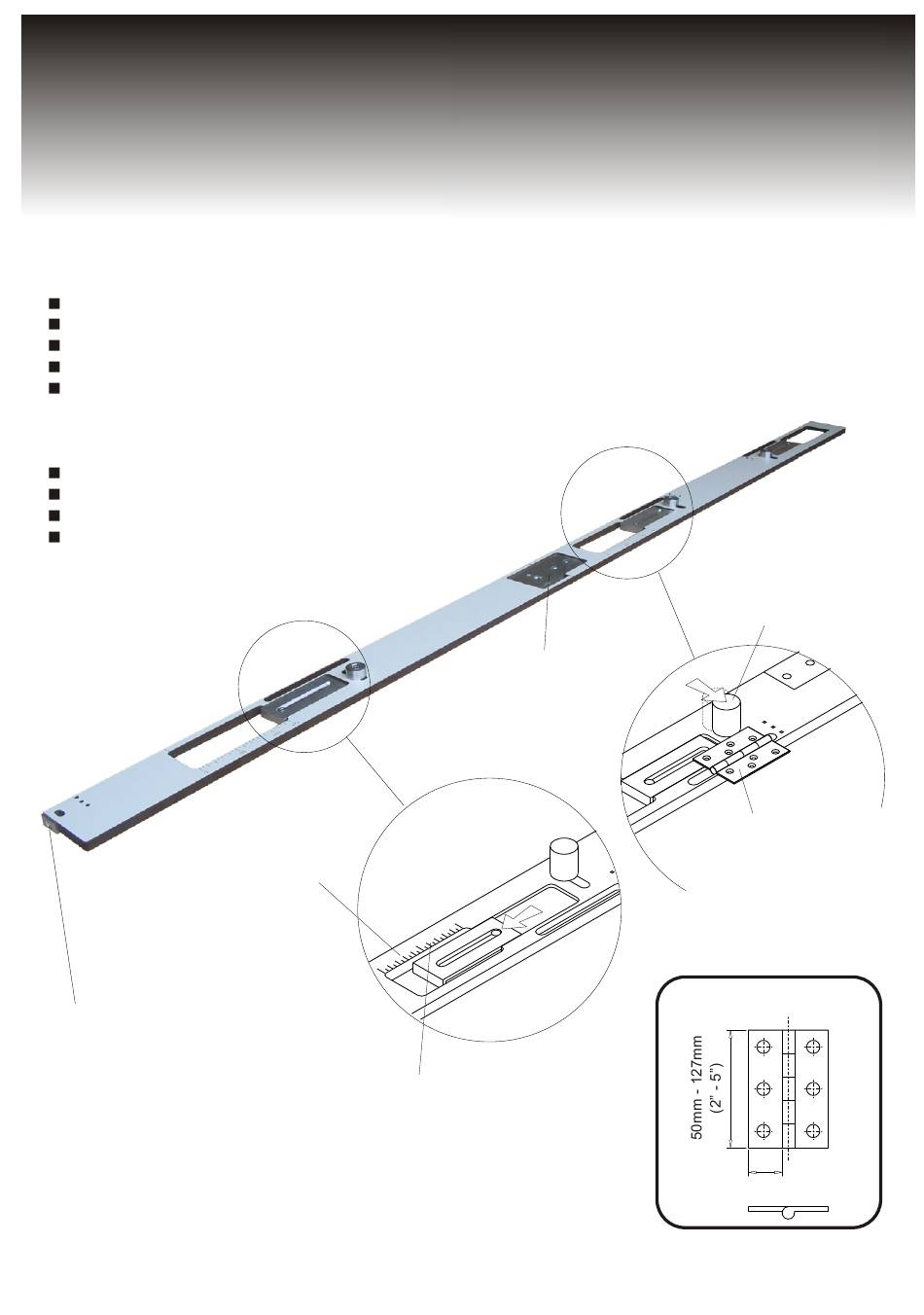

Adjustable Hinge Jig

Three adjustable hinge apertures.

For hinges 50mm(2") - 127mm(5") x 6.5mm - 35mm.

Comes in two parts for easy storage.

Based on a 2 metre door, the hinge positions are 6" from top, 9" from base, and middle.

End datum stop to control the 3mm gap between the top of the door and frame.

Other Equipment required:-

12mm diameter straight cutter.

16mm diameter guide bush.

At least two bradawls to secure jig to door/frame.

Philips screwdriver to adjust hinge apertures.

Engraved marking allows

easy hinge measurement

and setting.

A datum end stop

provides accurate

hinge positioning on

the door and frame.

Instruction Leaflet

A sliding plate allows hinge

length adjustment.

Adjustable

Connecting Plate

The depth datum

butts up against the

door or frame to

control the depth of

the hinge.

The depth of the

hinge can easily be

set. The hinge sits

in place within the jig

and the depth datum

is adjusted to suit.

Hinge sizes possible

6.5 - 35mm

Need help?

Do you have a question about the Adjustable Hinge Jig and is the answer not in the manual?

Page 1 Adjustable Hinge Jig Adjustable Hinge Jig Adjustable Adjustable Instruction Leaflet Instruction Leaflet Three adjustable hinge apertures. For hinges 50mm(2”) - 127mm(5”) x 6.5mm - 35mm. Comes in two parts for easy storage. Based on a 2 metre door, the hinge positions are 6” from top, 9” from base, and middle.
Page 2 Adjustable Hinge Jig 1. Assemble the Hinge Jig 1. Assemble the Hinge Jig The two individual parts assemble together by a connecting plate. Use the keyhole slot to capture the head of the screw and pull both parts of the jig together in the direction shown in the diagram.
Page 3 Adjustable Hinge Jig 3. Set up the Hinge Depth 3. Set up the Hinge Depth 1. Loosen the depth datum by hand by turning(do not need to use a hex key) 2. Place the knuckle of the hinge in the slot as shown in the diagram, and push in the direction shown.
Page 4 Adjustable Hinge Jig Rout hinge Recesses in Door cont... Rout hinge Recesses in Door cont... 6. Secure the jig to the door with bradawls. 7. Set your router to the depth or slightly deeper than the hinge - refer to your routers manual for Bradawl instructions on how to do this.
