CoxOrb Platinum User Guide
Congratulations on purchasing your new CoxOrb. It has been designed to be as easy as
possible to use but the following information will help you get the most from it. If you
do have any questions please email us at queries@active-tools.com or contact your
local distributor.

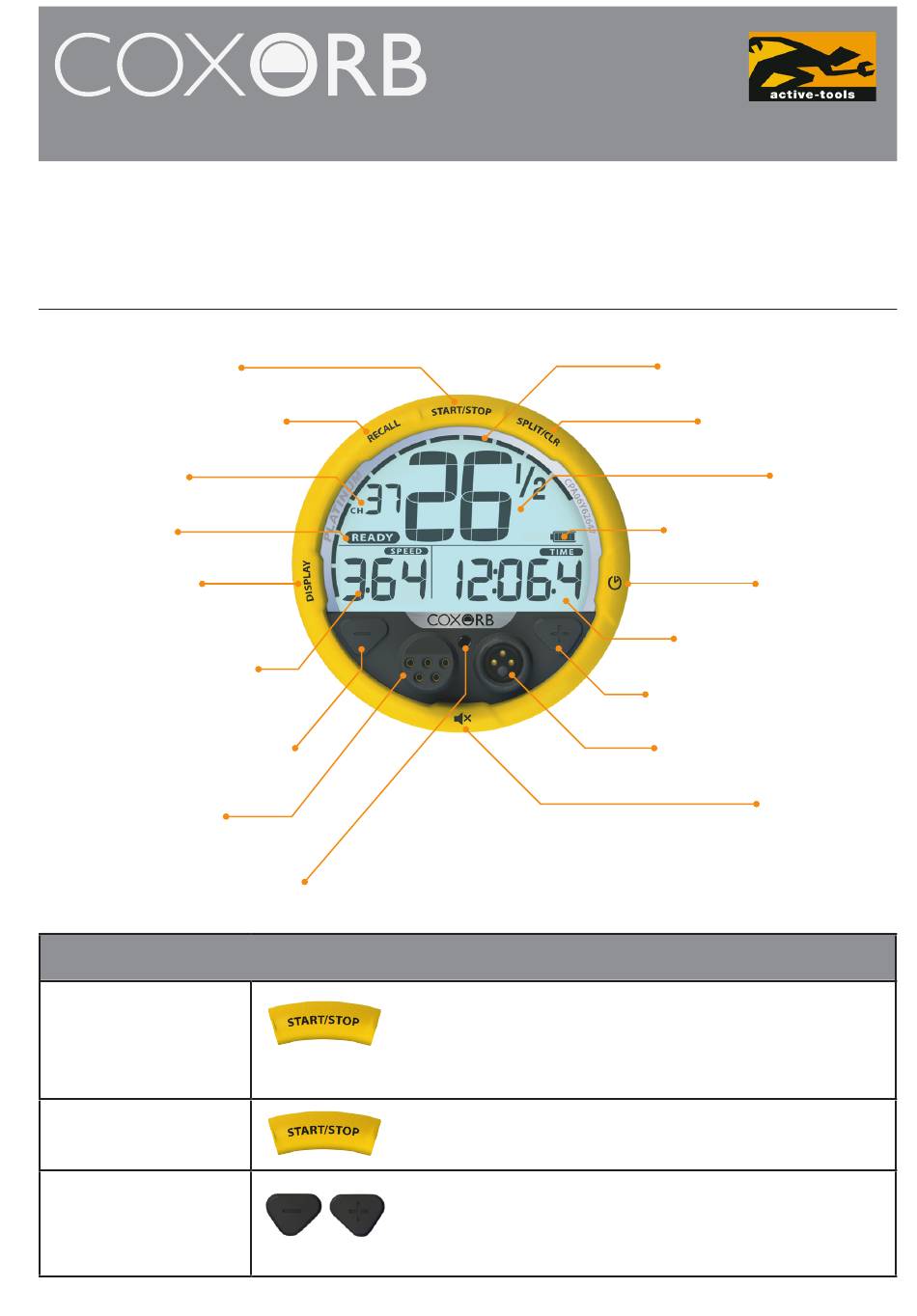

Start / Stop Button
Recall / Workout Button
Stroke Count /
Stop / Ready
Display Button
Speed /
Distance per Stroke /
Average Speed
Decrease Volume Button
Audio / Charging
/ USB Connector
Light Sensor for Backlight
Turn On
Turn Off
Volume Control
(for units with P01.33 or later firmware)
Basic Operation
Press & hold START/STOP for 2 seconds.
The unit will turn on in 'STOP' mode and Rate, Stroke
Count (or Check Factor) and Speed/Average Speed (or
Distance Per Stroke) will be displayed.
Press & hold START/STOP for 3 seconds.
Press INCREASE VOLUME / DECREASE VOLUME.
Volume level is displayed on the 'Volume Level Indicator'
and the level is saved when the unit is turned off.
Volume Level Indicator
Split / Clear Button
Stroke Rate
Battery Level Indicator
Clock Button
Distance/Timer/Clock
Increase Volume Button
Microphone Connector
Mute Button
Advertisement
Table of Contents
Related Manuals for Active Tools CoxOrb Platinum
Summary of Contents for Active Tools CoxOrb Platinum
- Page 1 CoxOrb Platinum User Guide (for units with P01.33 or later firmware) Congratulations on purchasing your new CoxOrb. It has been designed to be as easy as possible to use but the following information will help you get the most from it. If you do have any questions please email us at queries@active-tools.com or contact your...
- Page 2 Press & hold MUTE. Mute The unit will be muted and the ‘Volume Level Indicator’ bars will disappear . Clock Press & hold CLOCK. The Time of Day Clock will be displayed. Recording a Work Piece Go To Ready Press START/STOP. Unit will go to ‘READY’...
- Page 3 Configuring the Display Configure Area 1 Press & hold DISPLAY and press DECREASE VOLUME to cycle between Stroke Count, making this area blank, and Check Factor. Configure Area 2 Press & hold DISPLAY and press INREASE VOLUME to cycle between ‘SPEED’ , Average Speed (AS), and Distance per Stroke ( ).
- Page 4 Selecting Work Press INCREASE VOLUME / DECREASE VOLUME. Piece to View Work Pieces are labelled with the Time of Day they were recorded. The highlighted work piece will flash and if you leave it highlighted for more than 2 seconds it will be selected.
- Page 5 GPS speed is displayed automatically unless an impeller is detected. By default it is averaged over three strokes and can be displayed as a 500m split or in m/sec. Adjusting Number Press and hold the ‘DISPLAY’ and ‘CLOCK’ buttons for of Strokes GPS 3 seconds.
- Page 6 Stream Compensation When using GPS speed on moving water it is recommended that you use the stream compensation feature to give more accurate readings. Setting Stream Put CoxOrb in ‘STOP’ mode and have the blades square Compensation in the water so that the boat is moving with the stream. Press ‘SPLIT/CLR’...
- Page 7 Data and Audio Upload The information from stored work pieces can be transferred onto a Mac or PC using the USB cable. 1. Ensure your CoxOrb is turned off and then press ‘RECALL’ until ‘USB’ is displayed. 2. Connect the USB cable supplied to the USB port on your computer and to the connector on your CoxOrb.
-
Page 8: Frequently Asked Questions
Adjusting the Microphone The microphone arm can be bent to bring the microphone closer to your mouth, however this must be done gently. Please note that the warranty on the microphone only covers manufacturing faults. The CoxOrb must never be picked up and carried using the microphone cable. Mounting Your CoxOrb CoxOrbs can be supplied with a mounting cup and will also fit existing mounting cups and moulded-in holders.
