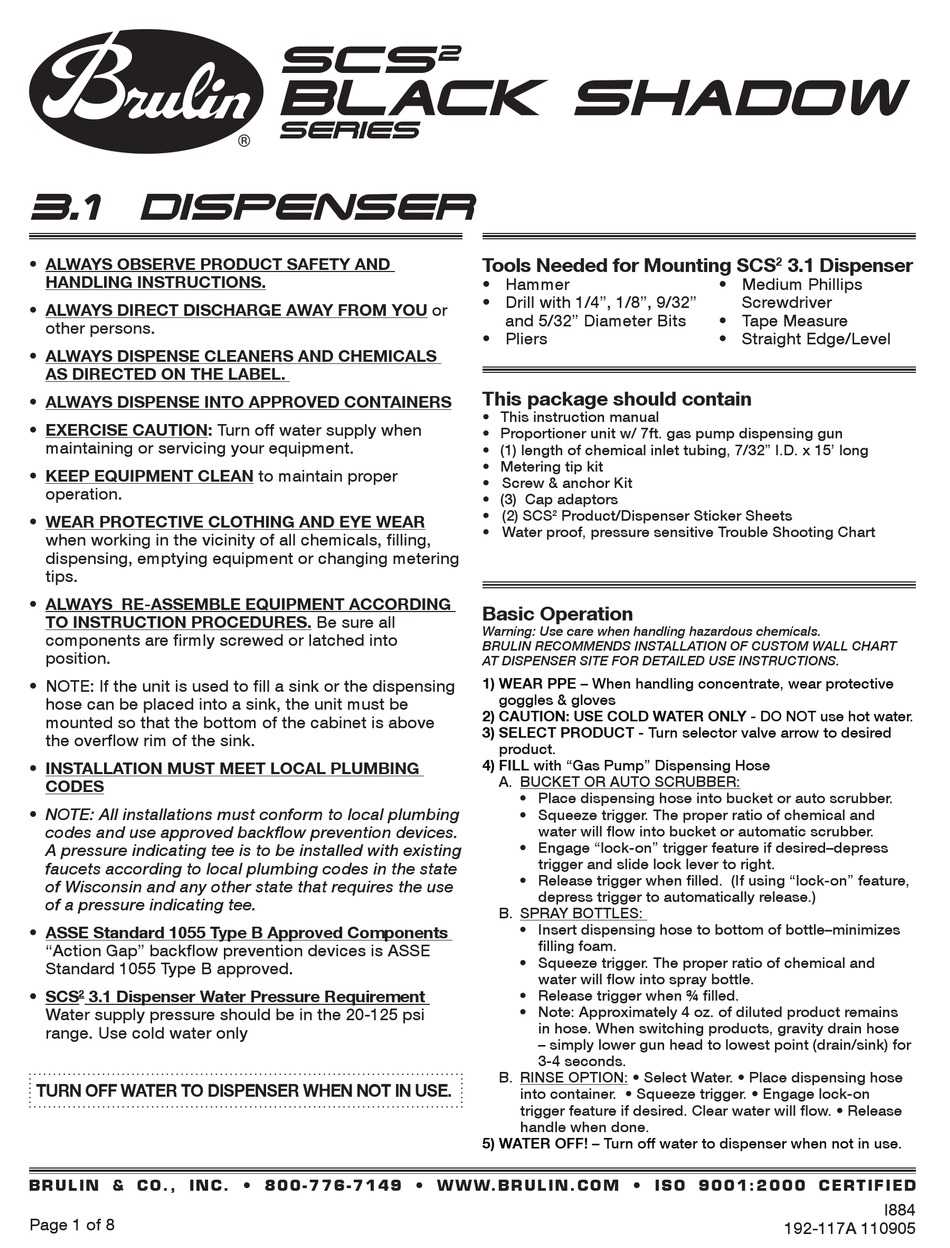

Brulin SCS2 BLACK SHADOW SERIES Manual

3.1 DISPENSER
• ALWAYS OBSERVE PRODUCT SAFETY AND
HANDLING INSTRUCTIONS.
• ALWAYS DIRECT DISCHARGE AWAY FROM YOU or
other persons.
• ALWAYS DISPENSE CLEANERS AND CHEMICALS
AS DIRECTED ON THE LABEL.
• ALWAYS DISPENSE INTO APPROVED CONTAINERS
• EXERCISE CAUTION: Turn off water supply when
maintaining or servicing your equipment.
• KEEP EQUIPMENT CLEAN to maintain proper
operation.
• WEAR PROTECTIVE CLOTHING AND EYE WEAR
when working in the vicinity of all chemicals, filling,
dispensing, emptying equipment or changing metering
tips.
• ALWAYS RE-ASSEMBLE EQUIPMENT ACCORDING
TO INSTRUCTION PROCEDURES. Be sure all
components are firmly screwed or latched into
position.
• NOTE: If the unit is used to fill a sink or the dispensing
hose can be placed into a sink, the unit must be
mounted so that the bottom of the cabinet is above
the overflow rim of the sink.
• INSTALLATION MUST MEET LOCAL PLUMBING
CODES
• NOTE: All installations must conform to local plumbing
codes and use approved backflow prevention devices.
A pressure indicating tee is to be installed with existing
faucets according to local plumbing codes in the state
of Wisconsin and any other state that requires the use
of a pressure indicating tee.
• ASSE Standard 1055 Type B Approved Components
"Action Gap" backflow prevention devices is ASSE
Standard 1055 Type B approved.
• SCS 3.1 Dispenser Water Pressure Requirement
2
Water supply pressure should be in the 20-125 psi
range. Use cold water only
TURN OFF WATER TO DISPENSER WHEN NOT IN USE.
B R U L I N & C O . , I N C . • 8 0 0 - 7 7 6 - 7 1 4 9 • W W W. B R U L I N . C O M • I S O 9 0 0 1 : 2 0 0 0 C E R T I F I E D
Page 1 of 8
SCS
2
BLACK SHADOW
SERIES
Tools Needed for Mounting SCS
• Hammer
• Drill with 1/4", 1/8", 9/32"
and 5/32" Diameter Bits
• Pliers
This package should contain
• This instruction manual
• Proportioner unit w/ 7ft. gas pump dispensing gun
• (1) length of chemical inlet tubing, 7/32" I.D. x 15' long
• Metering tip kit
• Screw & anchor Kit
• (3) Cap adaptors
• (2) SCS Product/Dispenser Sticker Sheets
2
• Water proof, pressure sensitive Trouble Shooting Chart
Basic Operation
Warning: Use care when handling hazardous chemicals.
BRULIN RECOMMENDS INSTALLATION OF CUSTOM WALL CHART
AT DISPENSER SITE FOR DETAILED USE INSTRUCTIONS.
1) WEAR PPE – When handling concentrate, wear protective
goggles & gloves
2) CAUTION: USE COLD WATER ONLY - DO NOT use hot water.
3) SELECT PRODUCT - Turn selector valve arrow to desired
product.
4) FILL with "Gas Pump" Dispensing Hose
A. BUCKET OR AUTO SCRUBBER:
• Place dispensing hose into bucket or auto scrubber.
• Squeeze trigger. The proper ratio of chemical and
water will flow into bucket or automatic scrubber.
• Engage "lock-on" trigger feature if desired–depress
trigger and slide lock lever to right.
• Release trigger when filled. (If using "lock-on" feature,
depress trigger to automatically release.)
B. SPRAY BOTTLES:
• Insert dispensing hose to bottom of bottle–minimizes
filling foam.
• Squeeze trigger. The proper ratio of chemical and
water will flow into spray bottle.
• Release trigger when ¾ filled.
• Note: Approximately 4 oz. of diluted product remains
in hose. When switching products, gravity drain hose
– simply lower gun head to lowest point (drain/sink) for
3-4 seconds.
B. RINSE OPTION: • Select Water. • Place dispensing hose
into container. • Squeeze trigger. • Engage lock-on
trigger feature if desired. Clear water will flow. • Release
handle when done.
5) WATER OFF! – Turn off water to dispenser when not in use.
3.1 Dispenser
2
• Medium Phillips
Screwdriver
• Tape Measure
• Straight Edge/Level
