Operating instructions
AMBUS
®
Net
Software versions 1.01.xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMBUS Net and is the answer not in the manual?

Questions and answers

Summary of Contents for INTEGRA Metering AMBUS Net

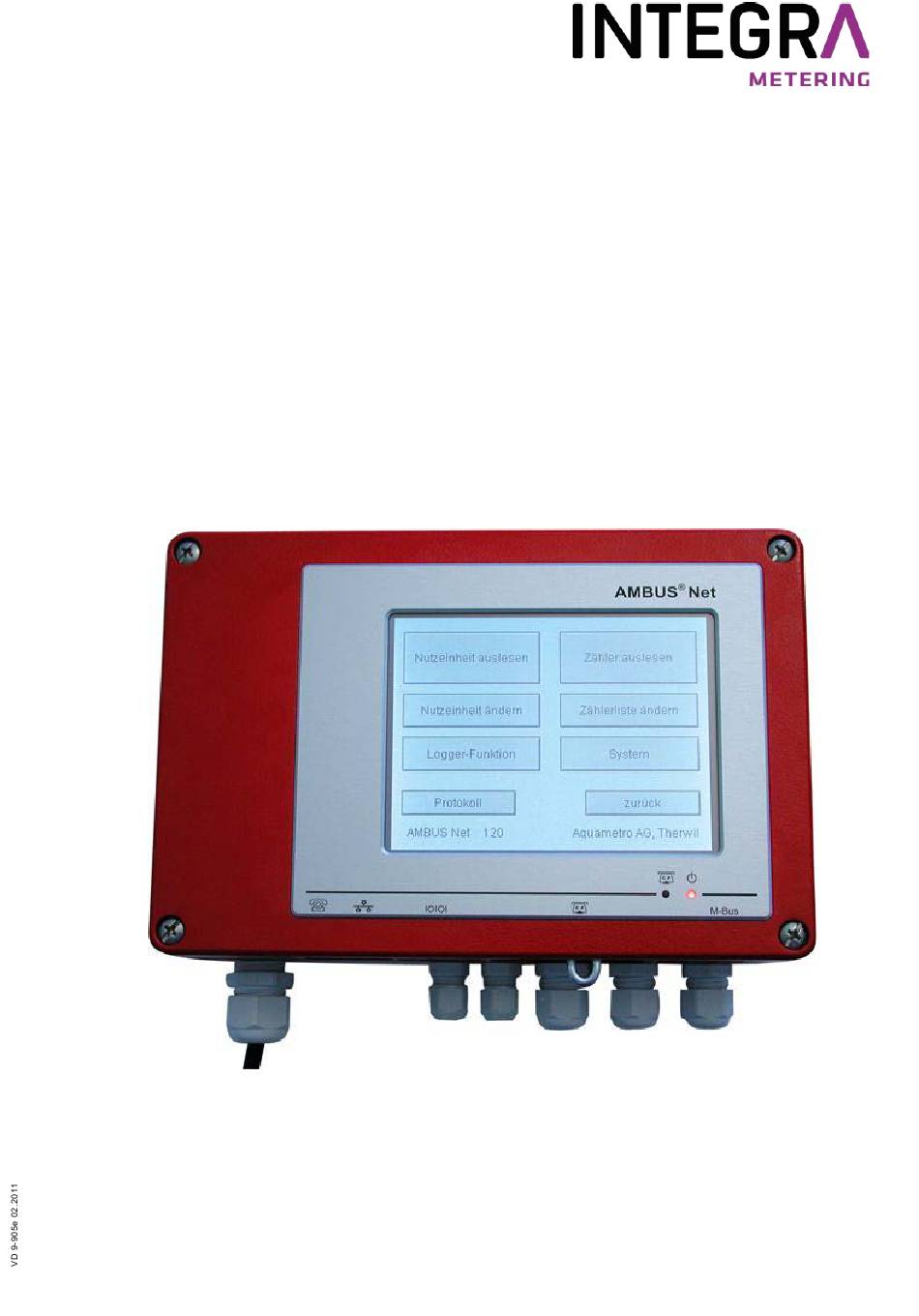

  • Page 1 Operating instructions AMBUS ® Software versions 1.01.xx...

  • Page 2: Table Of Contents

    Table of contents Introduction ..............................3 Applications ............................3 Components ............................... 4 Housing and power supply ........................4 Processor .............................. 4 Interfaces .............................. 4 Technical data of interfaces ........................5 Memory board and serial flash ......................6 Multilingual feature with HTML tags ...................... 6 Communication and security.........................

  • Page 3: Introduction

    Introduction AMBUS® Net is an integrated extension of AMBUS ZS and enables intelligent M-Bus central units to be ® configured, operated and monitored by M-Bus plants as complete systems with state-of-the-art technology and customer-friendly operation. The ¼ VGA touch screen display ensures easy-to-handle on-site operation without the need of a PC. Because it contains a Web server, the instrument can also be remotely operated via either a direct telephone link (analog, ISDN or GSM) or an Intranet/Internet network.

  • Page 4: Components

    Components 2.1 Housing and power supply ® AMBUS Net is protected by a rugged, red-lacquered aluminium pressure die-cast housing for wall or control cabinet mounting. The power supply is a 230 VAC mains voltage. For information on installation refer to the installation instructions AMBUS ®...

  • Page 5: Technical Data Of Interfaces

    Ethernet network AMBUS® Net is an Internet-supported device and can be connected to a network (LAN, Local Area Network) via the Ethernet RJ-45 interface. It works at a speed of 10 Mbit/s. Two LEDs on the pc board indicate if it is linked to the network (for diagnosis and only visible when the in- strument is opened): Significance LINK...

  • Page 6: Memory Board And Serial Flash

    2.5 Memory board and serial flash CF card ® AMBUS Net with the "data logger" option can record plant and meter data at period- ical intervals. This requires e CF card being used as a removable data carrier be- tween the AMBUS Net and a PC.

  • Page 7: Communication And Security

    Communication and security Four versions of the AMBUS Net are available: AMBUS® Net LCD120 and AMBUS® Net LCD250 have a ® touch screen and are therefore to be used when a local display and on-site operation are required. The gateway versions AMBUS® Net 120 and AMBUS® Net 250 do not have touch screens and are therefore to be installed in plants where remote readout and operation are required and where a more rapid network connection is available.

  • Page 8: Versions

    2.8 Versions Four versions of the AMBUS ® Net are available: AMBUS® Net LCD120 and AMBUS® Net LCD250 have a touch screen and are therefore to be used when a local display and on-site operation are required. The gateway versions AMBUS® Net 120 and AMBUS® Net 250 do not have touch screens and are therefore to be installed in plants where remote readout and operation are required and where a more rapid network connection is available.

  • Page 9: Commissioning

    Commissioning 3.1 Power supply and display Connecting the power supply Check that the power supply cable is connected to the correct terminals and switch on the power supply. Refer to the installation instructions AMBUS® Net for connecting the power supply correctly The display lights up.
  • Page 10 By pressing the display the following are called up: Access code AMBUS® Net differentiates between two access authorizations, both of which are protected by a coded number. 1. System access code (shown on the right) 2. Usage unit access code (see sect. 4.4 The usage units) When touching the field "Access-Code", a keyboard is displayed;...

  • Page 11: Meter List, Commissioning The M-Bus And Automatic Meter Search

    The communication parameters are checked and set via the menu "System / Network": System / Network menu Settings of the Ethernet interface: • IP address, subnet mask and standard gateway are described in greater detail in Section: 3.4 Network (Windows). Entries are only required when using the network.
  • Page 12 Select the meters to be read from the main menu: Read out meter • Select the appropriate address in the drop-down list to read out a specific meter • An additional text field is available for more detailed identifi- cation. More information is given in 4.3 Reading the meter ®...

  • Page 13: Network (Windows)

    3.4 Network (Windows) For configuring the network, you require the following instrument data that are found in the system / network: Parameter Factory settings Subnet mask 255.255.255.0 Standard gate- Mac address In range 00 0A FF F0 00 00 ... 00 0A FF F0 FF FF Parameter Factory settings...
  • Page 14 Select an IP address that is located in the same group: (The first 3 bytes must be identical.) • ’Use the following IP address:’ • IP address: 192.168.1.1 (AMBUS® Net is delivered with 192.168.1.10 as standard) • Subnet mask: 255.255.255.0 ®...
  • Page 15 Start your Internet browser and select: http://192.168.1.10 The AMBUS Net offers two options that can be selected: ® • CF Device / (Access the files on the CF card) • start.html (remote operation, start page) If AMBUS Net has been equipped with the option: "data logger", ®...

  • Page 16: Communication Via Modem

    3.5 Communication via modem ® Modem settings on the AMBUS Communication between the PC and AMBUS® Net can also be made using a telephone connection. Step Type of modem: Analog ISDN Plug in bridges for analog or ISDN modem Select type of modem Analog ISDN Set MSN No.
  • Page 17 Step 4: Connect the telephone cable Connect the AMBUS® Net to the telephone connection using the modem cable supplied. AMBUS® Net connection system modem / RJ-45 Step 5: Secure and connect the GSM antenna Attach the stick-on antenna supplied to where the best possible GSM reception is obtained (check this out beforehand using a cellular phone from the same provider).
  • Page 18 Select with Data encryption: • Optional encryption (connect even if no encryption) • With Allow these protocols only: Unencrypted password (PAP) • End with OK • Confirm the following security messages with Yes Select the label Networking • Select as Type of dial-up server: PPP: Windows 95/98 NT4 2000, Internet •...

  • Page 19: Data Logger / Cf Card

    Geben Sie im Browser als URL die fixe IP address for Modem • http://192.168.0.1 http:192.168.0.1  AMBUS Net can now be remotely operated using a modem connection! ® 3.6 Data logger / CF card AMBUS Net can record the data in the network on a compact flash ®...

  • Page 20: Operation

    Operation The large touch screen display has made it possible to achieve a high degree of operating skill never previous- ly found with an instrument of this class. The plain text in a language of your choice enables the device to be ®...

  • Page 21: Reading The Meter

    4.3 Reading the meter The basic features for reading the meter are described in Section 3.3 Meter list, commissioning the M-Bus and automatic meter search. • Selecting the meter: The meter is selected with a drop-down list, which lists all me- ters by their address.
  • Page 22 Select from the main menu to create a usage unit: Modify usage unit • With the button "New usage unit", the designation of a new Usage Unit (UU) can be entered via the keypad which is then displayed. To the left, near the designation is the internal number of the UU.

  • Page 23: Monitoring The Meters: The Analysis Usage Unit

    Modify usage unit / Delete meter Meter readings that are incorrectly entered or no longer required can be removed from the usage unit. • The button "Delete meter" calls up the delete menu: • Select the meter reading to be deleted, •...

  • Page 24: Data Logger (Optional)

    4.6 Data logger (optional) The optional data logger records event- or time-controlled data and stores these in the plug-in data memory (CF card).The time interval can be set to between 1 minute and 12 months. If the AMBUS® Net is not equipped with the logger function option, then the update rate is fixed at once per day. The reading is carried out shortly before 24.00. The logger function (optional) The keys on either side are used to determine: 1.
  • Page 25 Setting the logger time interval The logger time interval can be entered in the entry field on centre screen to the right. This value determines the time intervals in which the meters are to be read. It can be set to the following ranges: Minutes Hours Days...

  • Page 26: Meter List, Manual Meter Readings

    Checking the logger interval To check the logger interval, first read all meters and proceed as follows: 1 Activate the button "Check" in the field "Meter list" 2 Activate the button "All meters" 3 Wait until the reading time is shown in the field in the centre at the bottom (example "0:00:25“) 4 Set the logger interval time to at least this time in the field "Logger function"...
  • Page 27 Removing meters To delete the entire list, select: • Delete – all meters If individual meters are to be removed, select: • Delete – single meter (having first entered the address to be deleted in field "Adr") • AMBUS Net displays, e.g.: "all meters deleted or Meter deleted" ®...
  • Page 28 This option can cause the readout to be considerably delayed. Select the "Auto-Req" option only if other important data are to be read! 1.1.1.7 Data in Mem(ory) Parameters for meters which store the actual meter reading in memory 1 (e.g. EAM current meter). 1.1.1.8 Std-Sel (Standard Selection) Activates the option Any VIF (alternative method for App Reset).

  • Page 29: Remote Operation And System Integration

    1.1.1.9 Remote operation and system integration 5.1 SOAP: Creating a client with .Net SOAP is an XML-based interface that enables direct data connections to be created between clients over the Internet, e.g. management software and servers (AMBUS Net). ® AMBUS Net makes available data from meters and the usage units via a SOAP interface.
  • Page 30 Features of a usage unit If a usage unit is loaded with the function "getUsageUnit(…)", then it is possible to use it like a local instance. A usage unit has various features and is structured as follows: public class UsageUnit public class Entry public int...
  • Page 31 3. The final step is to link the SOAP service to the code. In the example given, the Web reference is called “NetService“. If another name is selected then this name must be used in the code. Note that a timeout of approx.

  • Page 32: Download Protocol

    5.2 Download protocol Section 3.4 Network (Windows) explained how all protocol files that AMBUS Net stored ® on the CF card can be saved to the PC using a network. By entering the address: http://192.168.1.10/CF_Device/ you get the file directory of the protocol files from AMBUS Net From which you can select.

  • Page 33: Troubleshooting

    Troubleshooting Symptom Cause Remedy Check power supply including power isolating • No power supply Power symbol does not light terminal acc. to installation instructions Check the M-Bus (4-wire) acc. to installation in- • Short-circuit in the structions AMBUS ® Net. M-Bus Display should be connected with three cables to •...

  • Page 34: T Able 6: T Roubleshooting

    Modem does not function Check the installation of the modem. • Modem incorrectly in- stalled Check the rider position acc. to sect. 3.5 • Incorrect jumper position on pc board Check the cable and the power outlet. • RJ-45 cable incorrect Analog modem does not function Do not enter a MSN No.

  • Page 35: Appendix

    Temperature difference: Channel 3 Read out: 30.09.2004 08:42 Meter 1: Meter 2: Meter 3: Meter 4: Power: Flow: Temperature hot side: Temperature cold side: Temperature difference: made out with AMBUS Net, Aquametro AG, Therwil Table 7: Example of meter protocol...

  • Page 36: T Able 8: E Xample Of U Sage Unit Protocol

    0 Appt 1st floor 22222222 Distributor 2 Cold water W-170 30.09.2004 08:48 -4.432 m3 0 Made out with AMBUS Net, Aquametro AG, Therwil Flow: Temp. hot side: Temp. cold side: Temp. difference: Nbr operating hours: Nbr hours on alarm: Type: Manufacturer: m3/h 129.8...

  • Page 37: T Able 9: E Xample I Nstallation Protocol

    Heat 30.09.2004 08:48 0.204 22222222 Device 2 Main circuit Heat 30.09.2004 08:48 54321 Made out with AMBUS Net, Aquametro AG, Therwil Meter reading 4: Power: Flow: Temp. hot side: Temp. cold side: Temp. difference: Nbr operating hours: Nbr hours on alarm Type:...
  • Page 40 Art. Nr. 20275 info@integra-metering.com www.integra-metering.com...
