Summary of Contents for RDM PR0029L-ACF

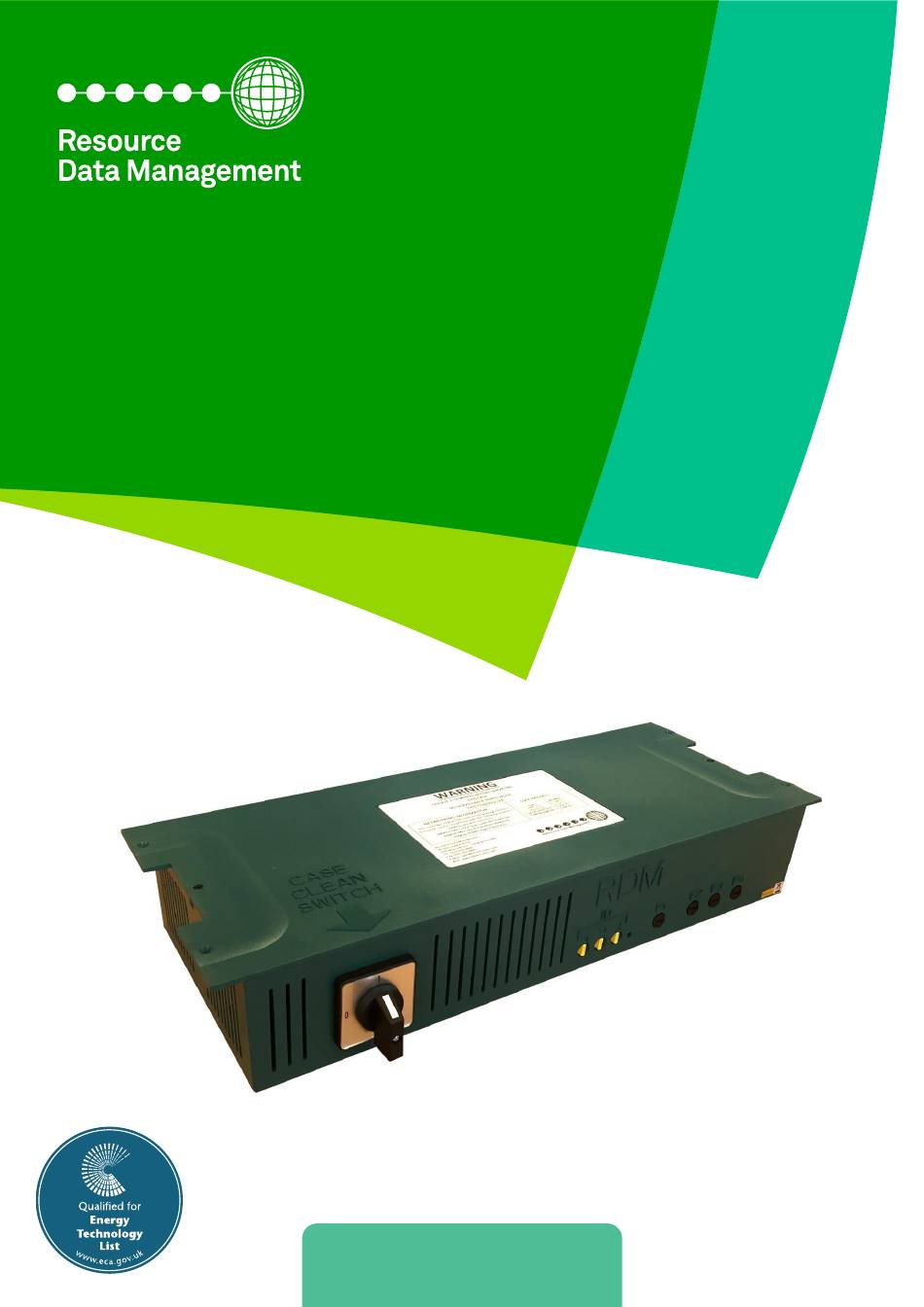

- Page 1 Brooklands Case Controller Commissioning/User Guide Revision 2.2c PR0029L-ACF...
-
Page 2: Table Of Contents
Brooklands Case Controller | Document Revision 2.2c Contents Description ......................3 Addressing ......................3 Id ........................3 Parameter Settings ..................... 3 Valve Type Selection ................... 3 Case Lights ......................4 On Line Status ....................4 Connections ....................... 4 Case Clean Switch ....................4 Default Parameter settings .................. -
Page 3: Description
PWM (Pulse width modulated) output for controlling intelligent evaporator fans. The controller has a “CO2 App parameter” to allow them to be used in conjunction with an RDM Data Manager, Plant Pack Controller and CO2 Pump Station for load shedding on CO2 sites. -
Page 4: Case Lights
Brooklands Case Controller | Document Revision 2.2c Case Lights Timers either locally in the tray or remotely at the front end normally control the case lights automatically. If there are no timers set up from the front end or if there is no network connection, the lights default to on. On Line Status The case status indicator is used to display the network status: - Alternate Red/Green: - logging on... - Page 5 Brooklands Case Controller | Document Revision 2.2c Parameter Range Step Units Default Evap Select Local/ Remote Local Div Value 0 to 100 Ctrl Probe Type Air Probe/ Air Probe ...
- Page 6 Brooklands Case Controller | Document Revision 2.2c Parameter Range Step Units Default Sun Lights On 00:00 to 23:59 00:01 hh:mm 08:00 Sun Lights Off 00:00 to 23:59 00:01 hh:mm 20:00 ...
-
Page 7: Parameter Descriptions
Brooklands Case Controller | Document Revision 2.2c Parameter Descriptions Parameter Description Yellow Cycle temp. When the temperature band is set to yellow range (see Temp. Band Parameter Below) this will be the cut in temperature. Red Cycle temp. When the temperature band is set to red range (see Temp. Band Parameter Below) this will be the cut in temperature. - Page 8 Brooklands Case Controller | Document Revision 2.2c Parameter Description Green OT Alarm Over temperature alarm set point when set to green range. This alarm uses the air off temperature Yellow Product UT Alarm Logging probe under temperature alarm set point when set to yellow range. Yellow Product OT Alarm Logging probe over temperature alarm set point when set to yellow range.
-
Page 9: Probe Allocations
(Rem Evap Temp) connected to the switch and along with the suction temperature probe local to the controller the superheat is calculated. Please note that RDM recommended that the evaporator in temperature probe is fitted as the controller will use this to calculate the superheat in the event of a communication loss with the Mercury Switch. -
Page 10: Servicing
Brooklands Case Controller | Document Revision 2.2c Servicing There are no serviceable parts. The only parts that are replaceable on this tray are the front panel mounted fuses. If replacement fuses are required they must match the original size. Fuses: HRC conforming to IEC60127 (32 x 6.3mm) Fans (F1) 3.15A (T) Lights (F2) 3.15A (T) -
Page 11: Hardware Options
Brooklands Case Controller | Document Revision 2.2c Hardware Options Part Number EEV Control LLV Control PWM Fans 230VAC Fans LED Lighting PR0029L PR0029L ACF PR0033 PR0033E PR0037 External Tray Features FRONT M&S... -
Page 12: Wiring Loom (Pr0024)
There is no requirement for forced cooling ventilation No protective Earth is required and none should be fitted. Earth connection Class 2 Insulation is functional only. Relay and probe: RDM wiring harness PR0024 Connections Power: 3 pin GST18 Lights: 3 pin M12... - Page 13 Brooklands Case Controller | Document Revision 2.2c 240V Fans: 2 pin M12 RS232: RJ45 Relay Specification Relay 1, EEV, Solid State (PR0029L, 29L-ACF, 33E, 37) Output Current Rating 3A max, 20mA min Output Voltage Rating 24-240 VAC Note: Valve supply and return are limited by internal 24Vac 12VA transformer Relay 1, Valve, Mechanical (PR0033E) Contact Type...
- Page 14 Visit www.resourcedm.com/support for more information on RDM solutions, additional product documentation and software downloads. While every effort is made to ensure the information given within this document is accurate, Resource Data Management Ltd shall not be liable for errors or omissions, for incidental or consequential damages, directly or indirectly, in connection with the furnishing, performance or misuse of this product or document.
