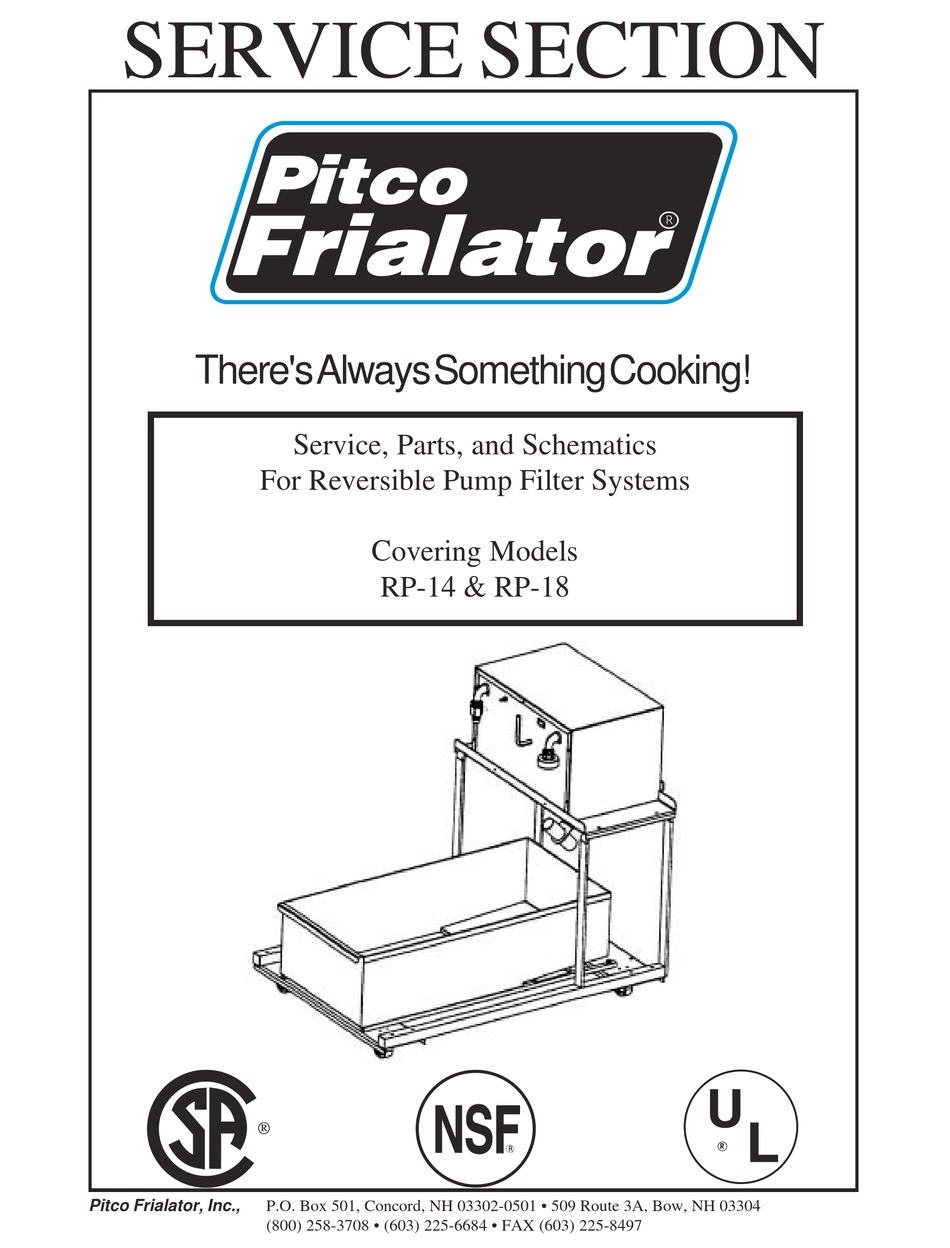

- Page 1 There's Always Something Cooking! Service, Parts, and Schematics For Reversible Pump Filter Systems Covering Models RP-14 & RP-18 P.O. Box 501, Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304 Pitco Frialator, Inc., (800) 258-3708 • (603) 225-6684 • FAX (603) 225-8497...
- Page 2 MTS # PF28-04 Pitco Frialator #L20-091-02 Original Rev. Date 12/27/93...
-
Page 3: Table Of Contents
Table of Contents Section Title Page Table of Contents (Service) ......................i List of Tables and Figures ....................... ii Chapter 4: Service ........................4-1 REPLACEMENT PROCEDURES ................4-1 4.1.1 Pump/Motor Removal ..................4-1 TROUBLESHOOTING FILTER SYSTEMS ............4-2 Chapter 5: Parts ......................... -
Page 4: List Of Tables And Figures
List of Tables and Figures Figure Title Page Reviersible Pump Filter System ................. 5-4 Table No. Title Page Reversible Pump Filter System .................. 5-1... -
Page 5: Chapter 4: Service
Chapter 4: Service This chapter provides the qualified technician with the replacement and troubleshooting procedures necessary to service the Pitco filter system. REPLACEMENT PROCEDURES These procedures are provided to the qualified technician as a guide to removal and replacement of various filter system components. -
Page 6: Troubleshooting Filter Systems
TROUBLESHOOTING FILTER SYSTEMS Filter unit is not working properly. Check the Is the Is the filter Is filter Is the building pump circuit breaker motor overload filter plugged circuit running? tripped? tripped breaker Turn the filter power switch Allow the motor to Plug in the off. - Page 7 Scrape the filter layer down to the metal Does the scraping screen. Once the pan is empty, filter leave tighten the pick up tube nut against the excessive oil in sediment screen. Inspect the filter paper for the filter pan? tears and change if torn.
-
Page 9: Chapter 5: Parts
The alphabetical part list is arranged in alphabetical order according to the part name. Each part name also has the Pitco Frialator part number. The numerical list is in Pitco Frialator part number order. A brief description of each component is provided for each part. - Page 10 Table 5-1 Reversible Pump Filter System Item Pitco Frialator Quantity Number Part Number Description Per Unit B7402601 Filter Carriage Frame #14 B7402701 Filter Carriage Frame #18 P5045160 Cap, Plastic P6071062 Caster, PMF 2 (W/Top Plate) B6602405 Filter, Hose Hi-Pressure 60"...
- Page 11 Table 5-1 Reversible Pump Filter System (Continued) Item Pitco Frialator Quantity Number Part Number Description Per Unit B6624901 Filter, Pan Weldment RP14 B6624902 Filter, Pan Weldment RP18 B6620002 Filter, Rack Weldment RP14,RP18 B6617002 Filter, Screen Clip RP14,RP18 A6681802 Filter, Coupling Top...
- Page 12 Figure 5-1 Reversible Pump Filter System...
-
Page 13: Alphabetical Part List
ALPHABETICAL PART LIST Pitco Frialator Part Description Part No. CAP, PLASTIC P5045160 CASTER, PMF 2 (W/TOP PLATE) P6071062 CONNECTOR, COUPLER-VALVED 3/8" PP10113 CONNECTOR, FILTER 3/8" MALE P6071123 CONNECTOR, STRAIN RELIEF PP10146 CORD, PLUG, 14-3, 10' PP10139 COUPLING, BLACK 3/8" NPT X 1/2" TUBE P7037796 ELBOW, STREET 3/8"... - Page 14 ALPHABETICAL PART LIST (Continued) Pitco Frialator Part Description Part No. NUT, HEX, 1/4-20 P0093300 O-RING, VITON .688 ID X .875 OD PP10409 PLUG, HOLE 7/8" P6071490 PUMP/MOTOR, 1/3 HP, 115/230VAC, 50/60HZ PP10101 RING, RETAINING-INTERNAL PP10820 RING, RETAINING-INTERNAL .875" PP10629 SCREW, 1/4-20 X 3/8"...
-
Page 15: Numerical Part List
NUMERICAL PART LIST Pitco Frialator Part No. Part Description A6657202 FILTER, BRACKET ELECTRIC CORD A6681802 FILTER, COUPLING TOP A6688102 FILTER, PANEL FRONT RP14,RP18 A6688202 FILTER, PANEL REAR RP14,RP18 A6688402 FILTER, BRACKET, T-STAT, RP14,RP18 A6689002 FILTER, BRACKET SWITCH, MICRO RP14,RP18 B6602405 FILTER, HOSE HI-PRESSURE 60"... - Page 16 NUMERICAL PART LIST (Continued) Pitco Frialator Part No. Part Description P7037796 COUPLING, BLACK 3/8" NPT X 1/2" TUBE PP10039 HEATER, TAPE 165W, 110 VAC, 1/2" X 79" PP10101 PUMP/MOTOR, 1/3 HP, 115/230VAC, 50/60HZ PP10113 CONNECTOR, COUPLER-VALVED 3/8" PP10139 CORD, PLUG, 14-3, 10'...
-
Page 17: Chapter 6: Schematics
Chapter 6: Schematics Schematic Description Schematic Number SCHEMATIC, FILTER RP14, RP18 115 VAC 700160 SCHEMATIC, FILTER RP14, RP18 220 VAC 700161 SCHEMATIC, FILTER RP14, RP18 240 VAC 700162... - Page 18 P5047171 SWITCH, LIMIT-SPDT 1-C17 THE INFORMATION CONTAINED PITCO FRIALATOR, INC. ON THIS DOCUMENT IS THE PROPERTY OF PITCO FRIALATOR P.O. BOX 501 CONCORD, NH 03302-0501 INC. AND MAY NOT BE REPRO- DUCED , COPIED, OR DISSEM- INATED TO THIRD PARTIES...
- Page 19 P5047171 SWITCH, LIMIT-SPDT 1-C17 THE INFORMATION CONTAINED PITCO FRIALATOR, INC. ON THIS DOCUMENT IS THE PROPERTY OF PITCO FRIALATOR P.O. BOX 501 CONCORD, NH 03302-0501 INC. AND MAY NOT BE REPRO- DUCED , COPIED, OR DISSEM- INATED TO THIRD PARTIES...
- Page 20 P5047171 SWITCH, LIMIT-SPST 1-C17 THE INFORMATION CONTAINED PITCO FRIALATOR, INC. ON THIS DOCUMENT IS THE PROPERTY OF PITCO FRIALATOR P.O. BOX 501 CONCORD, NH 03302-0501 INC. AND MAY NOT BE REPRO- DUCED , COPIED, OR DISSEM- INATED TO THIRD PARTIES...
