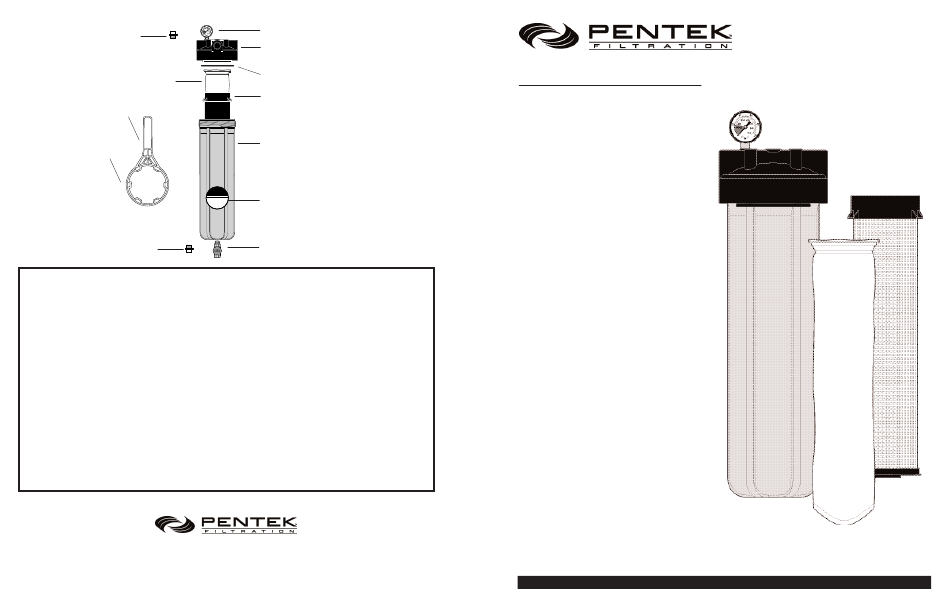

Pentek PBH-410 Installation And Operating Instructions

1/4" VENT PLUG - 144162
REPLACEMENT BAG
SW-3 - 150296 for PBH-410
SW-4 - 144368
for PBH-420
3/8" NPT DRAIN PLUG - 144362
PENTEK LIMITED WARRANTY
Bag Filter Systems
Pentek warrants to the original owner (under normal use): Bag Filter Housings to be free from defects in material and/or workmanship one (1) year from the date of
purchase. Any replacement products furnished will be free from defects in material and/or workmanship for the remainder of the original warranty period. This warranty
does not cover: (1) replacement bag filters (2) defects not reported within the above time period, (3) items manufactured by other companies, (4) problems arising from
failure to comply with Pentek instructions, (5) problems and/or damage arising from acts of nature, abuse, misuse, negligence or accident by any party other than Pentek, (6)
problems and/or damage resulting in whole or in part from alteration, modification, repair or attempted alteration, modification or repair by any party other than Pentek, (7)
noncompliance with applicable codes/ordinances.
If a defect in workmanship and/or material in a product or part covered by the warranty should arise, Pentek, at its sole discretion, will repair or replace the defective
product or part (Pentek may consider, in good faith, the customer's preference).
All claimed defective product must: (1) be authorized for return by Pentek with an RGA number (2) include proof of the purchase date of the product or part (3) returned to
Pentek prior to the expiration of the warranty date, at the customer's expense, shipment pre-paid, (4) be accompanied by a letter detailing the Model Number, Serial Number
(if any), and a brief description of the problem.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, PENTEK DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCTS, PARTS AND ANY
ACCOMPANYING WRITTEN MATERIALS.
To the maximum extent permitted by applicable law, Pentek shall not be liable for any damages whatsoever (including, but not limited to, loss of time, inconvenience,
expenses, labor or material charges incurred in connection with the removal or replacement of the Bag Filter Systems, special, incidental, consequential, or indirect
damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of the use of or inability to
use the defective products or parts, even if Pentek has been advised of the possibility of such damages.
Penteks' maximum liability under any provision of this Limited Warranty shall be limited to the amount actually paid for the Bag Filter System.
NOTE: Because some states do not allow the exclusion or limitation of incidental or consequential damages, the above limitations or exclusions may not apply.
THIS WARRANTY GRANTS SPECIFIC LEGAL RIGHTS, AND OTHER RIGHTS MAY APPLY. SUCH RIGHTS VARY FROM STATE TO STATE.
502 Indiana Ave • Sheboygan, WI 53081
Toll Free Technical Support: 800-861-8758 • Technical Support: 920-451-9301
supportspecialist@pentekfiltration.com • www.pentekfiltration.com
Phone: 920-457-9435 • International Fax: 920-457-2417 • international@pentekfiltration.com
Mfg. by Pentair Water Treatment © 2003
GAUGE - 144369
FILTER CAP 1-1/2"- 154508
1" - 154515
BT - 154512
O-RING - 151122
BASKET BODY
10" - 155374-03
20" - 155373-03
FILTER SUMP
BB w/3/8" DRAIN
10" - 153098
20" - 153097
BUNA-N
1/4" GASKET - 157405
BALL VALVE - 144357
PVC 3/8" MPT x 3/8" FPT
142977 Rev C 10/03
Page 4
Over-the-Top Bag Filter System
Installation and Operating Instructions
PBH-410/PBH-420
Models:
PBH-410 BT/PBH-420 BT
Specifications
Maximum Pressure: PBH-410/PBH-410 BT
100 psi
(6.89 bar)
PBH-420/PBH-420 BT
90 psi
(6.2 bar)
Maximum Temperature: 100° F (37.8° C)
Recommended Service Flow Rate: 3 psid @ 35 gpm (132 Lpm)
Maximum Service Flow Rate: 3 psid @ 50 gpm (189 Lpm)
Materials of Construction
Filter cap Polypropylene
Filter sump10-inch Polypropylene
Filter sump 20-inch Polypropylene
Basket 10-inch Polypropylene
Basket 20-inch Polypropylene
Basket Gasket Buna-N
O-ring (Sump) Buna-N
Vent plug Polypropylene
Drain plug Polyethylene
Drain valve PVC
Gauge Brass & Bronze
Spanner wrench Polypropylene
Dimensions
10-Inch Bag Filter System 7 1 / inch Diameter x 13 5 / inch Height
4 8
20-Inch Bag Filter System 7 1 / inch Diameter x 23 7 / inch Height
4 8
Patent #5,484,529
Technical Support: 1-800-861-8758 Mon–Fri., 7:30 AM–5 PM CST
Page 1
