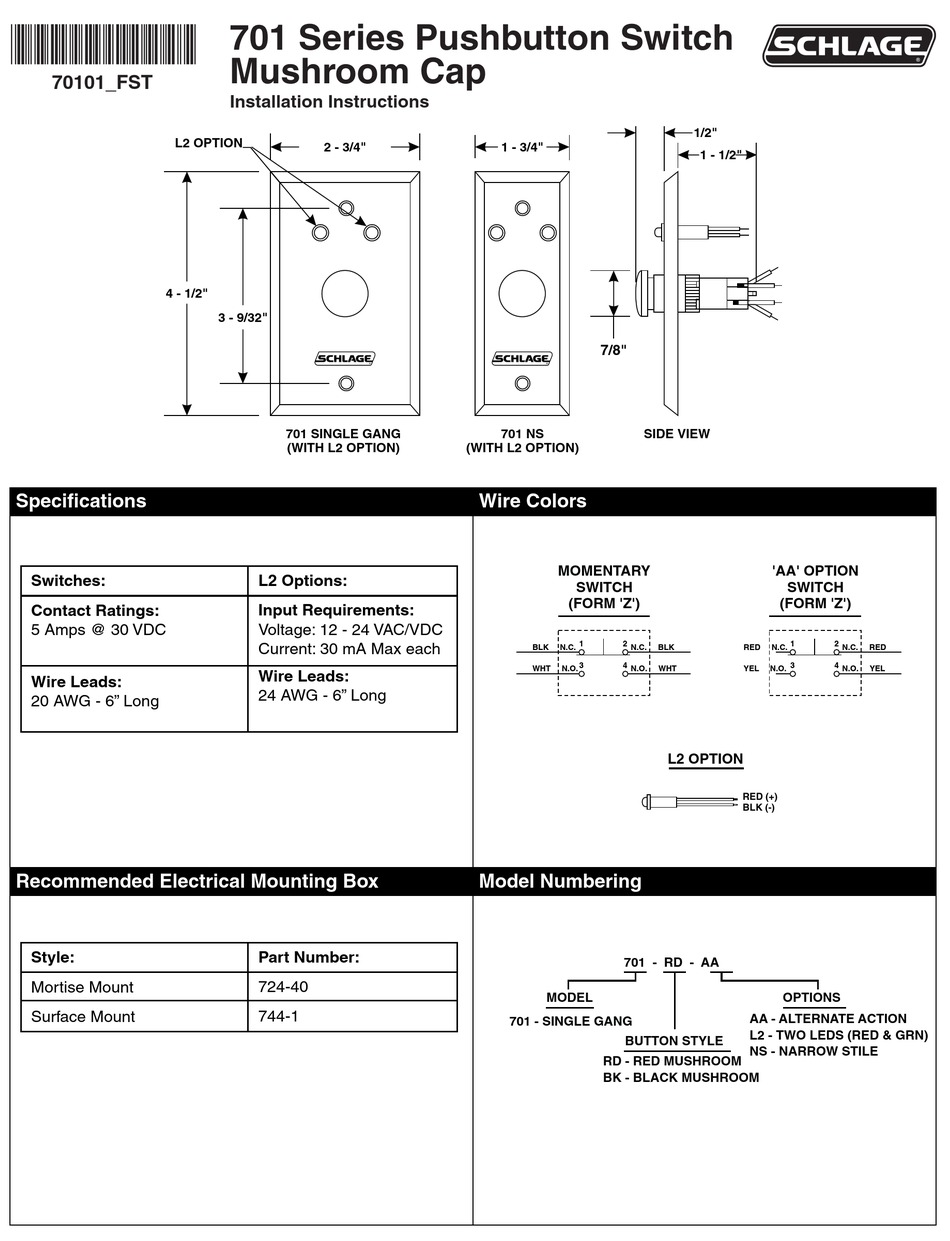

Schlage 701 Series Installation Instructions


70101_FST
L2 OPTION
4 - 1/2"
Specifications
Switches:
Contact Ratings:
5 Amps @ 30 VDC
Wire Leads:
20 AWG - 6" Long
Recommended Electrical Mounting Box
Style:
Mortise Mount
Surface Mount
701 Series Pushbutton Switch
Mushroom Cap
Installation Instructions
2 - 3/4"
3 - 9/32"
701 SINGLE GANG
(WITH L2 OPTION)
L2 Options:
Input Requirements:
Voltage: 12 - 24 VAC/VDC
Current: 30 mA Max each
Wire Leads:
24 AWG - 6" Long
Part Number:
724-40
744-1
1 - 3/4"
7/8"
701 NS SIDE VIEW
(WITH L2 OPTION)
Wire Colors
MOMENTARY
SWITCH
(FORM 'Z')
1 2
BLK N.C. N.C.
3 4
WHT N.O. N. . O
Model Numbering
701 - RD - AA
MODEL
701 - SINGLE GANG
BUTTON STYLE
RD - RED MUSHROOM
BK - BLACK MUSHROOM
1/2"
1 - 1/2"
'AA' OPTION
SWITCH
(FORM 'Z')
1 2
BLK RED N.C.
3 4
WHT YEL N.O.
L2 OPTION
RED (+)
BLK (-)
OPTIONS
AA - ALTERNATE ACTION
L2 - TWO LEDS (RED & GRN)
NS - NARROW STILE
N.C. RED
N. . O YEL
