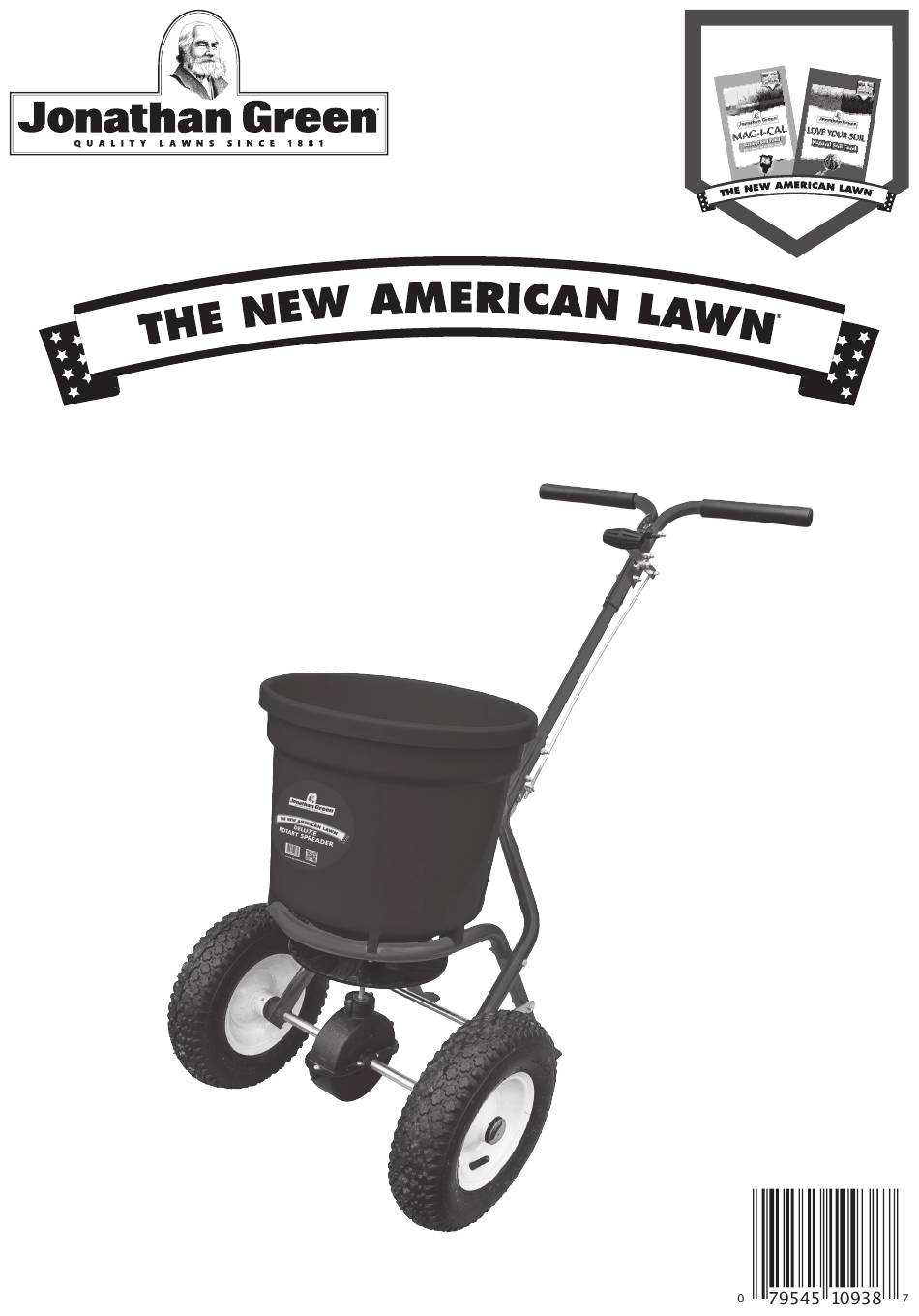

REMEMBER TO
"FEED YOUR SOIL"

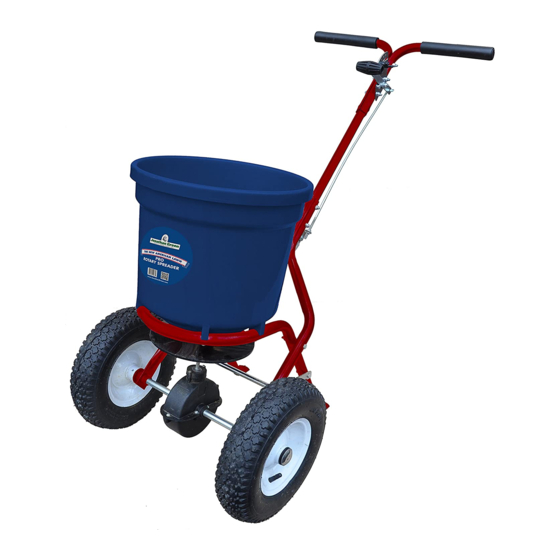

DELUXE ROTARY
SPREADER
Instruction
Manual
www.jonathangreen.com
www.newamericanlawn.com
Read the instructions and precautions before using this spreader.
Spreader holds up to 15,000 sq. ft. of most products.
Do not discard - contains spreader settings.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELUXE ROTARY SPREADER and is the answer not in the manual?

Questions and answers

Related Manuals for Jonathan Green DELUXE ROTARY SPREADER

Summary of Contents for Jonathan Green DELUXE ROTARY SPREADER

  • Page 1 REMEMBER TO "FEED YOUR SOIL" DELUXE ROTARY SPREADER Instruction Manual www.jonathangreen.com www.newamericanlawn.com Read the instructions and precautions before using this spreader. Spreader holds up to 15,000 sq. ft. of most products. Do not discard - contains spreader settings.

  • Page 2: Table Of Contents

    Helpful Hints, Component & Hardware ........3 Assembly Instructions ............. 4, 5, 6 Using Your Spreader ............7 Spreading Instructions ............8 Jonathan Green Product Spreader Settings ....... 9 Maintenance and Storage ............ 10 General Warnings and Rules ..........11 Hazard Signal Word Definitions ........... 12...

  • Page 3: Helpful Hints, Component & Hardware

    • This product requires some assembly before use. See “Assembly” section for instructions. Because of the weight and size of the New American Lawn Deluxe Rotary spreader, it is recommended that another adult be present to assist with the assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components are missing or damaged.

  • Page 4: Assembly Instructions

    Assembly Instructions STEP 1: a) Attach nylon washers and wheel to the right side of the axle then inserting a M5 x 45 bolt and fastening with lock nut M5. Attach end cap by tapping with a wooden or rubber mallet. b) Push another Wheel onto the axle.
  • Page 5 STEP 3: a) Insert bolts M6 x 45 through the upper left handle, then through the handle spacer and upper handle on the right side, screw with flat washer Ø6 and lock nut M6. Slide gauge and lever assembly onto the bolts and fasten with lock nut M6. b) Tighten lock nuts securely.
  • Page 6 STEP 5: Insert the adjust connect rod into the shut off plate. Then secure the adjust connect rod to the shut off plate, using one flat washer and two lock nuts. Insert the adjust connect rod into the shut off plate Nylon Lock Nut M6 Flat Washer Ø6 Nylon Lock Nut M6...

  • Page 7: Using Your Spreader

    Using Your Spreader 1. Determine approximate square footage of area to be covered and estimate amount of material required. 2. Before filling the hopper, make sure the flow control arm is in the off position and the closure plate is shut. 3.

  • Page 8: Spreading Instructions

    Spreading Instructions CALCULATING AMOUNT OF MATERIAL NEEDED To calculate the amount of fertilizer you will need to cover your lawn, divide the coverage amount listed on the label by the weight of the fertilizer bag. For example a 10 lb. bag of fertilizer with coverage of 10,000 square feet will distribute 1 lb.

  • Page 9: Jonathan Green Product Spreader Settings

    Jonathan Green Product Spreader Settings CAUTION These are approximate settings and are intended as a guide only. Variations in materials, walking speed, terrain, weather conditions, age and condition of spreader, etc. can affect setting. If unsure, start at a lower setting and increase if necessary. Always calibrate your spreader before using.

  • Page 10: Maintenance And Storage

    Maintenance and Storage WARNING Improper maintenance and storage of this spreader may void your warranty. Maintenance • After each use clean material out of hopper. • Rinse/dry inside and outside of the spreader after each use. • Before operating make sure the tires have the RECOMMENDED TIRE PRESSURE 25 PSI. •...

  • Page 11: General Warnings And Rules

    Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the New American Lawn Deluxe Rotary spreader could result in serious injury to the operator or bystanders.

  • Page 12: Hazard Signal Word Definitions

    ABOUT YOUR NEW AMERICAN LAWN DELUXE ROTARY SPREADER This New American Lawn Deluxe Rotary spreader is designed to spreader a wide range of materials (Fertilizer and Grass Seed). Never exceed the rated load capacity when operating the spreader.

  • Page 13: Parts Drawing & Parts List

    Parts Drawing 9 10 Parts List REF# DRAWING NO. DESCRIPTION N570-00012-000 Handle Spacer 9114-06025-DG Carriage Bolt M6x25 9315-08000-DG Teeth Washer Ø8 N570-10000-000 Gauge & Lever Assembly N570-00001-000 Adjust Handle Pole N570-00014-000 Adjust Handle A N570-00015-000 Adjust Handle B 9199-04018-DG Screw ST4.2x18 N510-00016-000 Spacer N510-00019-000...
  • Page 14 REF# DRAWING NO. DESCRIPTION N570-00009-000 Handle Cover N570-00013-000 Hopper N578-00001-000 R Pin N570-00019-000 Hopper Bushing N570-30000-000 Pivot & Bracket Assembly N570-00007-000 Wheel Assembly Frame 9201-06000-DG Hex Nut M6 T680-00003-000 End Cover N570-00006-000 Handle 9206-06000-DG Lock Nut M6 N570-00003-000 Control Rod A N570-00005-000 Handle Shaft N510-00023-000...
