EHA Transprint HP 2010 User Manual

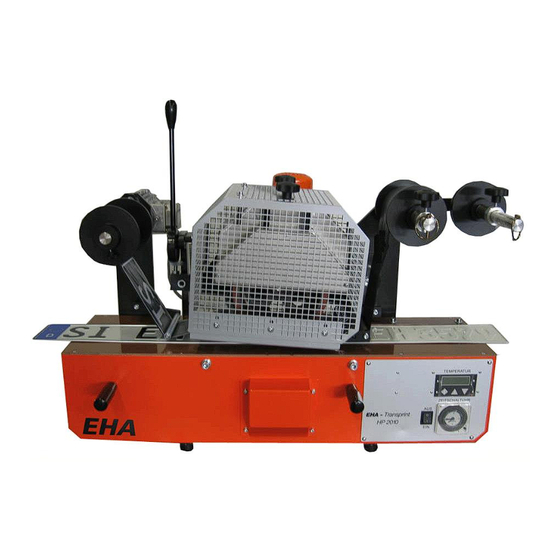

Hot stamping machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EHA
Transprint HP 2010
EHA
Hoffmann International GmbH

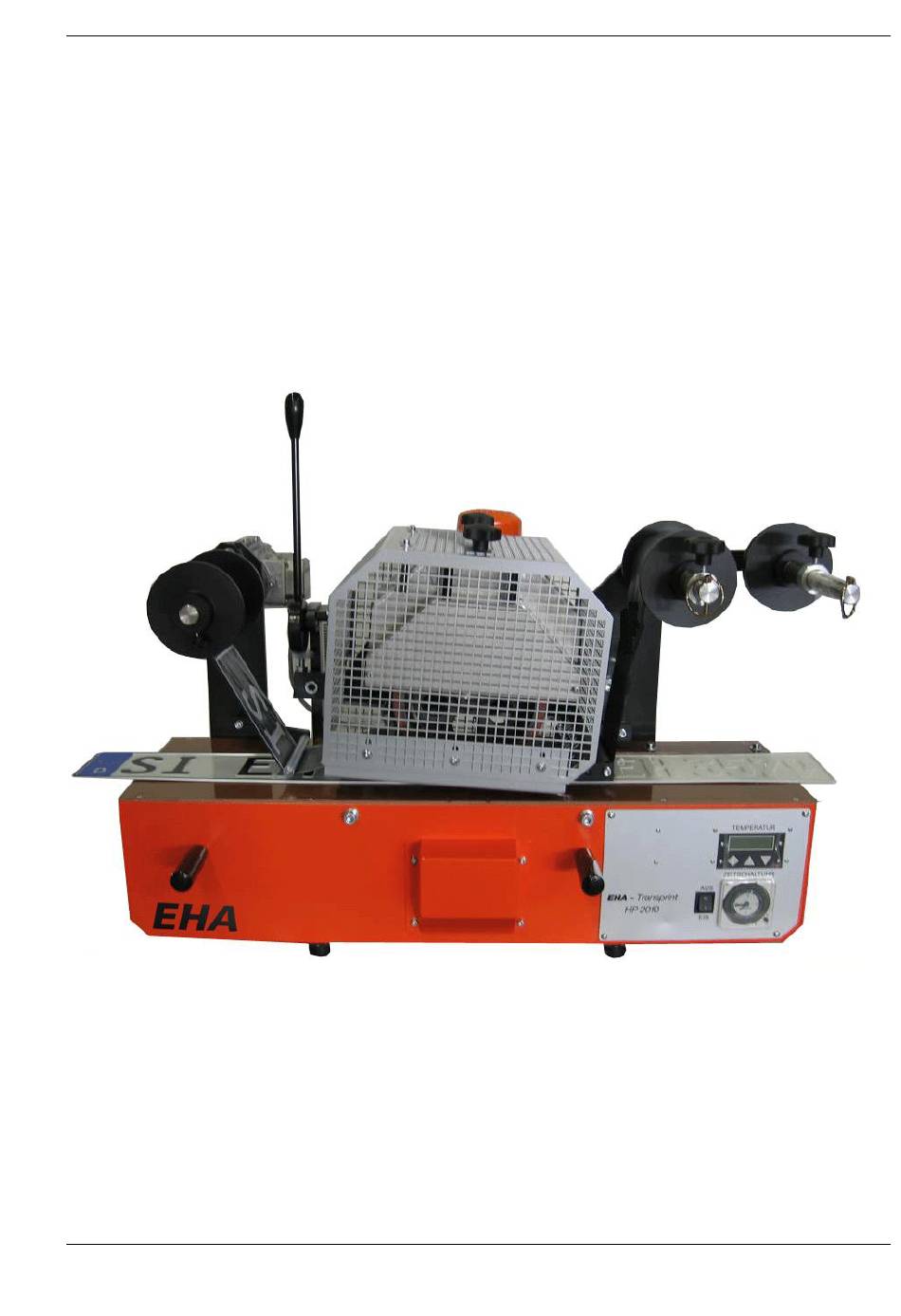

User manual EHA-TRANSPRINT HP 2010
Machine-No.:
EHA
Hoffmann International GmbH
Michelsbergstraße 24
D-57080 Siegen
Telephone: +49 271 39 32 - 0
Telefax:
+49 271 39 03 37
E-mail:
info@eha-group.com
Chapter: User manual
File:
BAL-QS-004/ENG
Year:
Version: 01
Page 1 of 23
Date: 02-12-2016
Release: M. Klein

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transprint HP 2010 and is the answer not in the manual?

Questions and answers

Summary of Contents for EHA Transprint HP 2010

  • Page 1 Transprint HP 2010 Hoffmann International GmbH User manual EHA-TRANSPRINT HP 2010 Machine-No.: Year: Hoffmann International GmbH Michelsbergstraße 24 D-57080 Siegen Telephone: +49 271 39 32 - 0 Telefax: +49 271 39 03 37 E-mail: info@eha-group.com Chapter: User manual Version: 01...
  • Page 2 All technical and technological information included in this user manual as well as any drawings and technical specifications made available remain the property of EHA Hoffmann International GmbH. They shall not be used (other than for the operation of this product),...

  • Page 3: Table Of Contents

    Transprint HP 2010 CONTENTS TYPE DESCRIPTION Introduction Technical specifications ................6 SAFETY Obligations of the owner ................7 Obligations of the personnel ................. 7 Dangers caused by operation of the machine ..........7 Intended use ....................8 Safety features ..................... 8 Informal safety measures ................

  • Page 4: Type Description

    Transprint HP 2010 TYPE DESCRIPTION Transprint HP2010 is a machine specially built for high quality hot stamping by means of heat and pressure. The machine has been developed to be used exclusively for the hot stamping of designated vehicle number plates with embossed edges.
  • Page 5 Transprint HP 2010 Liability The data included in this manual is based on the latest information available at the time of writing. It may be subject to future changes. We reserve the right to make changes to the design and / or construction of our products without being obligated to adapt previously supplied machines.

  • Page 6: Technical Specifications

    Transprint HP 2010 Work safely! EHA Hoffmann International GmbH had made every effort to inform you as correctly and completely as possible on any dangers associated with the operation of the machine. You must ensure and are responsible for compliance with these behavioural guidelines.

  • Page 7: Safety

    Transprint HP 2010 SAFETY Transprint HP 2010 is provided with safety equipment to ensure safe machine operation. You should, however, take due note of the following: Danger of getting injured by hot parts. Be careful with hot parts to avoid burns. The heated roller may have a surface temperature of 220°C.

  • Page 8: Dangers Caused By Operation Of The Machine

    Transprint HP 2010 Dangers caused by operation of the machine Transprint HP2010 is built according to accepted engineering standards and safety regulations. Despite that operating the machine could result in danger for life and limb of the operator or bystander or cause damage to the equipment or other property.

  • Page 9: Safety Measures For Normal Operation

    Transprint HP 2010 Safety measures for normal operation Check the machine for obvious damage and the safety cover is being functional at least once every shift. Only operate the machine if the safety cover is fully functional. Before start-up of the machine ensure that no other individuals are to be at risk.

  • Page 10: Machine Description

    Transprint HP 2010 3 MACHINE DESCRIPTION Description main components: 1. Wind up motor 12. Diversion axis 2. Wind up unit 13. Rubber feet 3. Setting Hot Stamping pressure 14. Guiding / Peeling shaft 4. Roller lever 15. Top roller (Silicone Rubber) 5.

  • Page 11: Transport

    Transprint HP 2010 4 TRANSPORT ►Consider the weight when moving the machine. ►To move the machine consider the usage of devices that can lift it safely. ►The Hot Stamping Machine must be lifted with at least 2 people hand- bulky. Use for it the carrying handles.

  • Page 12: Installation

    Transprint HP 2010 Operating conditions Temperature: 10°C ~ 50°C (50°F ~ 122°F) Do not expose the machine to direct sunlight; the temperature increase may affect the final product. Humidity: 30 % ~ 85 % The humidity should ideally be maintained at 55% (no condensation).

  • Page 13: General Operation

    Transprint HP 2010 GENERAL OPERATION Start up Turn the heating on for about 30 minutes in advance of using the machine to ensure that the roller has the required temperature and is well heated through. ► Only connect the power cable to a 230V, 50/60Hz socket, secured with a 16A fuse.

  • Page 14: Insert Foil

    Transprint HP 2010 Insert foil If the machine has already been in operation and the working temperature has been reached the roller and the roller heating cover will be hot. ► Pull the power plug of the machine before working with the foil.

  • Page 15: Prerequisites Vehicle Number Plates

    Transprint HP 2010 Prerequisites vehicle number plates The vehicle number plates must be: ► equipped with hp-resistant reflective foil. ► uniformly shaped, straight and flat. ► have a top surface that is clean, dry, and free from dust and grease.

  • Page 16: Unwind Brake

    Transprint HP 2010 ► The roller will continue to rotate for about 20 minutes to cool down. (The control panel will show COOLDOWN in the display) ► After the Cooldown phase the machine will turn off and go into standby mode (The control panel will show OFF in the display).
  • Page 17 Transprint HP 2010 Setting of Hot Stamping Pressure Loosen counter nut. (Spanner 13) Adjusting screw upwards or downwards. ► Turn clockwise, Screw downwards = lower hot-stamping pressure ► Turn counter clockwise, Screw upwards = higher hot-stamping pressure Fix the counter nut (Spanner 13)

  • Page 18: Control Panel

    Transprint HP 2010 Control panel The machine is equipped with a control panel: Display and button functions The functions of the buttons / display of the control panel are: Function or display = ENTER-button 2. Double function: - Increase temperature setting (press together with button 1) - Switch on button for manual heating on after switch on the rocker switch.

  • Page 19: Activate Control Panel

    Transprint HP 2010 6.10 Activate control panel and turn the machine on To activate the control panel and turn the machine on by setting the On / Off switch in the "I"-position. Timer with week program Display / Control Panel for, beside others, the setting or temperature 6.10.1 Activate manual...
  • Page 20 Transprint HP 2010 6.10.2 Activate Automatic with timer function To activate the timer switch the rocker switch to ON. Only then the machine switch on and off according to the setted weekly program. If the rocker switch is OFF, the Timer is switched off and the HP machine will not be started by the timer.

  • Page 21: Changing The Temperature Setting

    Transprint HP 2010 6.11 Changing the temperature setting  Activate the control panel (see chapter 6.10).  The machine is turned on when the display is turned on. (see picture 10, the machine is turned on). Temperature setting  4] displays the setting for the roller temperature (temperature setting) ...

  • Page 22: Changing The Display Language

     Press the button [1] to confirm the chosen language. Display language 6.14 Error messages If the display shows any of the following error messages contact EHA Hoffmann International GmbH or the local service partner. Error messages in the display:  F-SENSOR (Error roller rotation sensor (Fork sensor)) ...

  • Page 23: Maintenance

    Transprint HP 2010 MAINTENANCE Cleaning by the operator General information for the cleaning The cleaning and care of the machine must be carried out after completion of the production, if necessary. In the case of heavy soiling, it may be necessary to carry out this cleaning even at shorter intervals after visual inspection of the operator.
