INSTRUCTION MANUAL
MAN-RIDGEROCK-BG-2018-08-13
• To ensure you are using the most recent version of this manual visit: www.redcatracing.com/RIDGEROCK_BG_MANUAL.pdf

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ridgerock CRAWLER and is the answer not in the manual?

Questions and answers

Summary of Contents for DANCHEE Ridgerock CRAWLER

  • Page 1 INSTRUCTION MANUAL MAN-RIDGEROCK-BG-2018-08-13 • To ensure you are using the most recent version of this manual visit: www.redcatracing.com/RIDGEROCK_BG_MANUAL.pdf...

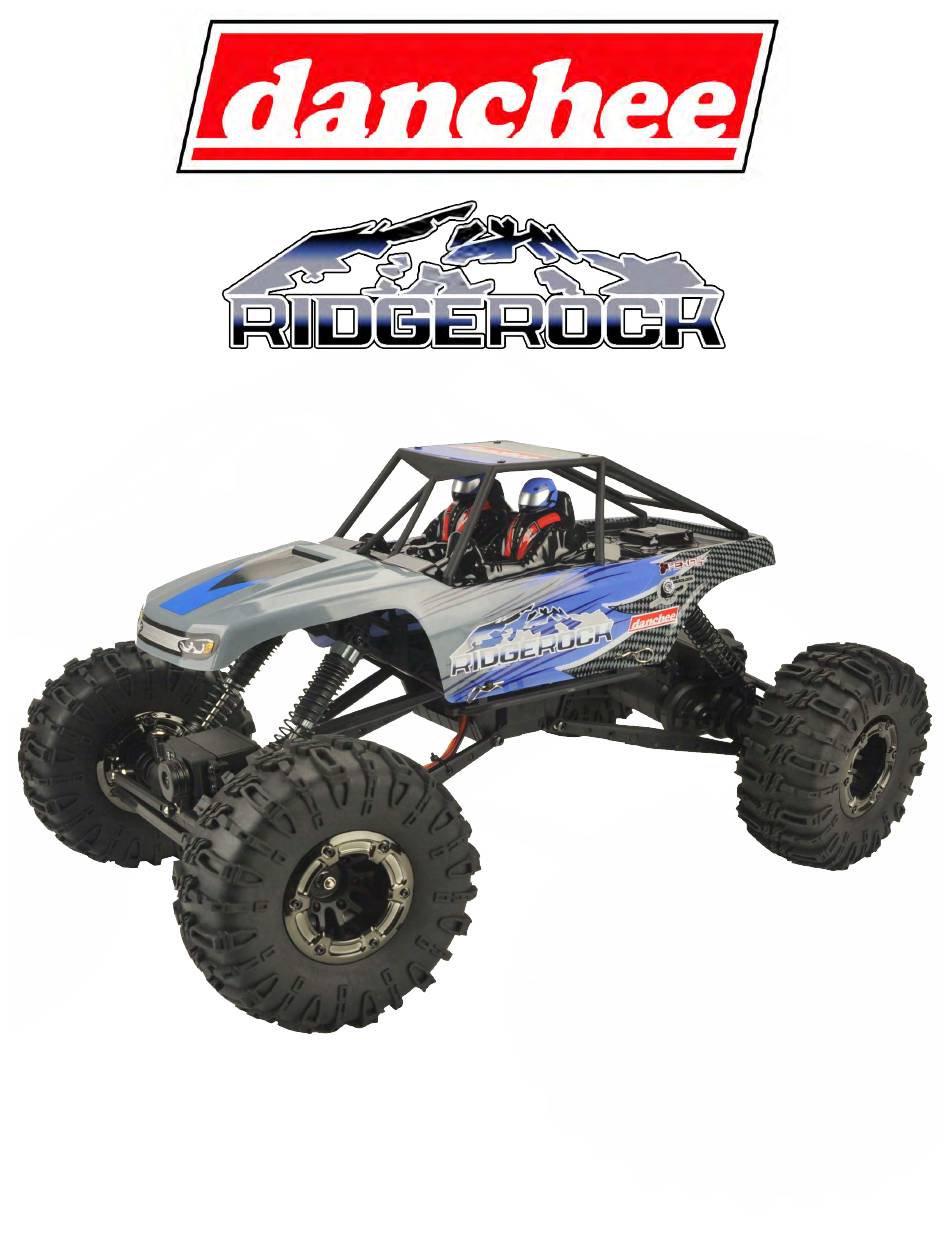

  • Page 2 RIDGEROCK 1:10 SCALE FOUR WHEEL STEERING ELECTRIC POWERED ROCK CRAWLER TECHNICAL DATA: GROUND TYPE WIDTH WHEELBASE WHEEL WHEEL GEAR RATIO LENGTH HEIGHT CLEARANCE DIAMETER WIDTH CRAWLER 440mm 230mm 275mm 320mm 81mm 132mm 57mm 40:1 MAIN FEATURES: - 2.4GHz Radio System - Scale Roll Cage With Realistic Cockpit And Drivers - 4 Wheel Drive/4 Wheel Steering - TVP Chassis Design...
  • Page 3: General Safety Information

    RIDGEROCK GENERAL SAFETY INFORMATION: Never operate the vehicle in crowds of people. Serious injury may occur. Never operate the vehicle on public streets as traffic accidents, personal injury and/or property damage may occur. This vehicle is ONLY to be driven in open areas safe for RC cars.
  • Page 4: Safety Notes

    RIDGEROCK INTRODUCTION: • This 1:10 scale, four wheel steering rock crawler is designed to be fun and uses quality parts for durability and performance. • This vehicle requires regular maintenance for best performance. • Failure to maintain this vehicle will harm its performance. The spare parts pages in the manual make buying broken or worn out parts easy.
  • Page 5 RIDGEROCK 2.4GHz RADIO SYSTEM: Read this section to familiarize yourself with the features of the 3-Channel 2.4GHz radio system included with this vehicle. Read and understand all warnings to ensure the safe operation of your radio control system. Steering Wheel Throttle Trigger Steering Trim Steering Trim...
  • Page 6 RIDGEROCK STEERING MODE - 2 STEERING MODE - 1 FRONT AND REAR WHEEL FRONT WHEEL STEERING. STEER IN OPPOSITE DIRECTION. Light is on solid. Light is on solid. PRESS IT TO CHANGE THE STEERING MODE PRESS IT TO CHANGE THE STEERING MODE STEERING MODE - 3 STEERING MODE - 4 FRONT AND REAR WHEEL...
  • Page 7: Turning On The Radio

    RIDGEROCK RUNNING THE VEHICLE: TURNING ON THE VEHICLE TURNING ON THE RADIO With a fully charged battery installed and properly Slide the radio power switch to the plugged in, press and hold the power button, “ON” position. located on the chassis, to power up the vehicle. "O"...
  • Page 8 RIDGEROCK RUNNING THE VEHICLE: CHECKING THE THROTTLE MOVE BACKWARDS MOVE FORWARDS STOP Pull the trigger to drive forward, release it to stop, and push it to drive in reverse. If the vehicle drives backwards when you pull the trigger, flip the “Throttle Reverse”...
  • Page 9: Turning Off The Radio

    RIDGEROCK RUNNING THE VEHICLE: Throttle Trim: Used to set the throttle neutral point. If the vehicle moves forward or reverse while the throttle trigger is centered, turn this knob until the vehicle remains still. TURNING OFF THE VEHICLE 2 TURNING OFF THE RADIO Press and hold the power button, located on the Slide the radio power switch to the “OFF”...
  • Page 10: Charging The Battery Pack

    RIDGEROCK CHARGING THE BATTERY PACK: NOT INCLUDED Charging time is approx. 5 - 5.5 hours. Smart Phone Charger Adapter Connect the battery pack to the USB charger (provided), and A smart Phone charger adapter Red LED (Charging LED) flashes plug the USB charger into an (5V, 1A - Not Included) can be while the battery pack is appropriate USB power supply.
  • Page 11: Regular Maintenance

    RIDGEROCK REGULAR MAINTENANCE: We recommend that you check and maintain this vehicle after each use. Follow the suggestions below to help ensure consistent performance of this vehicle. • Disconnect and remove the batteries from both the vehicle and the radio. •...
  • Page 12: Exploded View

    EXPLODED VIEW - 1 RIDGEROCK DRIVE SHAFT ASSEMBLY (FRONT/REAR) H007 R5622 S102 H022 R5612 59300 H007 59300 R5612 R5635 79513 R5612 79513 H007 R5621 Finished AXLE ASSEMBLY (FRONT/REAR) S018 S018 S018 S018 S018 S018 S018 79513 R5618 R5606 H032 S216 R5607 R5624 R5606...
  • Page 13 EXPLODED VIEW - 2 RIDGEROCK SERVO INSTALLATION (FRONT/REAR) R5623 S160 R5623 R5627 S160 R5607 R5611 H013 S160 R5611 S139 S160 R5611 H013 S215 R5603 S107 SERVO SAVER ASSEMBLY S215 H013 R5607 ROLL CAGE AND BODY INSTALLATION R5616 S093 S093 S093 Roof Of Body S093...
  • Page 14 EXPLODED VIEW - 3 RIDGEROCK CENTER UNIT ASSEMBLY 12225TA R5604 R5631+S097 R5603 R5631 R5604 R5617 R5630 R5601 R5631 R5630 +S097 H016 R5604 R5630 R5630 R5629TA H016 R5603 R5603 H016 S085 S030 S004 S030 S004 S085 S002 S002...
  • Page 15 EXPLODED VIEW - 4 RIDGEROCK CONNECT CENTER UNIT TO FRONT/REAR AXLE S107 S085 S107 S085 S107 TO FRONT AXLE (LEFT VIEW) TO FRONT AXLE (RIGHT VIEW) S107 S107 S085 S085 S107 TO REAR AXLE (LEFT VIEW) TO REAR AXLE (RIGHT VIEW) Finished...
  • Page 16 EXPLODED VIEW - 5 RIDGEROCK INSTALLING WHEELS COMPLETE TO FRONT/REAR AXLE R5605P S031 R5613 (sponge included) R5614 R5615P R5605P S031 S031 Finished Wheel Complete S031 R5615P H003 R5615P P120 P120 H022 H003 H022...
  • Page 17: Parts Identification

    PARTS IDENTIFICATION - 1 RIDGEROCK R5601 R5602 R5603 R5604 Lower Chassis Plate Roll Cage Suspension Links Chassis and Slider Rails R5605P R5606 R5607 R5608 Axle Housings w/Motor Wheel Bead Lock Rings Steering Links + Rings Steering Hub Carriers (PLATED) Guard R5609 R5610 R5611...
  • Page 18 PARTS IDENTIFICATION - 2 RIDGEROCK R5621 R5622 R5623 R5624 Pinion Gears (8T) Front Axle Shaft Rear Axle Shaft Servo Saver Spring Ring HX-6CP R5625 R5626 R5628 Gear Pins 2*12 Wheel Shaft Pins 2*8 3-Wire Servo (6KGS) RC-380 Motor R5629TA R5630 R5631 R5632DECH Body (Blue)
  • Page 19 PARTS IDENTIFICATION - 3 RIDGEROCK H020 P100 H032 H007 Body Clip A/B- Large Body Post Pads Ball Bearing 4*7*2 Ball Bearing 5*11*4 59300 79513 S002 S004 Round Head Self Round Head Self Tapping Ball Bearing 5*9*3 Ball Bearing 7.95*13*3.5 Tapping Screw 3*12mm Screw 3*18mm S018 S030...
  • Page 20: Additional Accessories

    PARTS IDENTIFICATION - 4 RIDGEROCK S215 S216 S097 S103 Round Head Self Step Screw 3*6.5-3.5*5 Step Screw 4*6.5-5*6.3 Set Screw 2.5*2.5mm Tapping Screw 3*22mm 12225TA 18859E-E001 R5635 Li-ion Battery Pack USB Charger Spur Gear Spacer (7.4V, 1500mAH W/Small Tamiya Plug) ADDITIONAL ACCESSORIES: INCLUDED: There are two additional servo horns and a small wrench included in this box.
