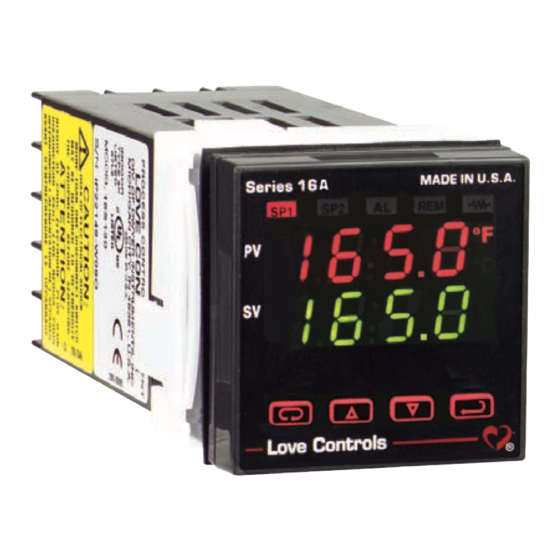

Love Controls 16A2 Series Instructions Manual

Microprocessor based temperature / process control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for the 16A2 & 16A3 Series
LOVE CONTROLS DIVISION
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A
uality Products Online at:
Microprocessor Based
Temperature / Process Control
GlobalTestSupply
www.
Bulletin 949-1265
Phone: 219/879-8000
www.love-controls.com
e-mail: love@love-controls.com
.com
sales@GlobalTestSupp

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16A2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Love Controls 16A2 Series

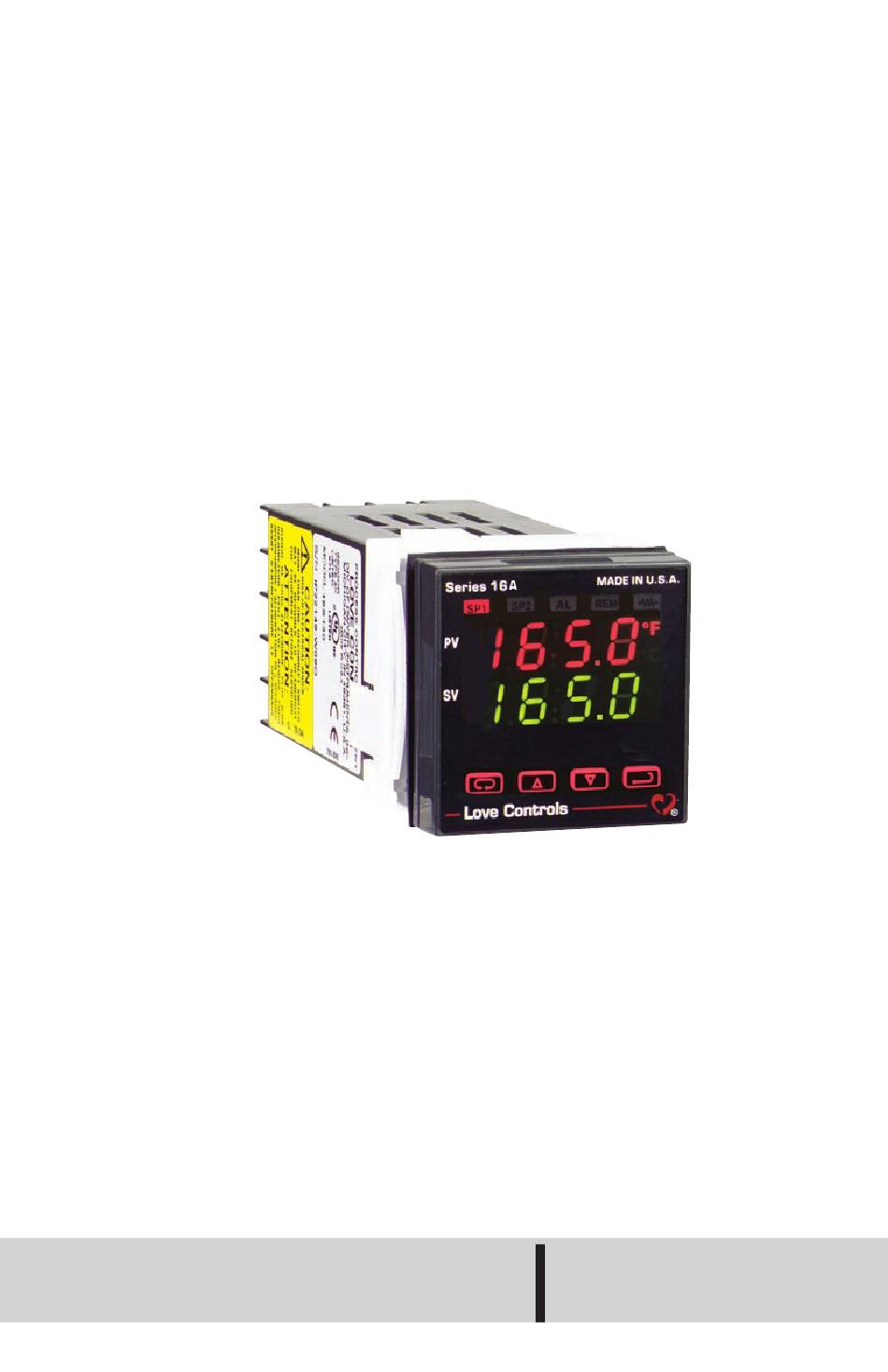

  • Page 1 Bulletin 949-1265 Instructions for the 16A2 & 16A3 Series Microprocessor Based Temperature / Process Control LOVE CONTROLS DIVISION Phone: 219/879-8000 DWYER INSTRUMENTS, INC. www.love-controls.com P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A e-mail: love@love-controls.com GlobalTestSupply www. .com uality Products Online at:...

  • Page 2: Table Of Contents

    CONTENTS GETTING STARTED ..........2 MODEL IDENTIFICATION .

  • Page 3: Model Identification

    ENTER keys for 5 Seconds (see Page 28.) Press the INDEX key until the dis- play shows and press the DOWN ARROW until the display shows P385 Don’t forget to press the ENTER key to retain your setting. Next, press the INDEX key to display Unit .

  • Page 4: Installation

    INSTALLATION Mount the instrument in a location that will not be subject to excessive temperature, shock, or vibration. All models are designed for mounting in an enclosed panel. Select the position desired for the instrument on the panel. If more than one instru- ment is required, maintain the minimum of spacing requirements as shown on the drawing below.

  • Page 5: Wiring

    WIRING Do not run RTD, thermocouple, or other class 2 wiring in the same conduit as power leads. Use only the type of thermocouple or RTD probe for which the control has been programmed. Maintain separation between wiring of sensor, optional inputs and outputs and other wiring.

  • Page 6: Wiring For 4 To 20Ma Transmitter Inputs

    OUTPUTS (Rear View showing center block of wiring terminals.) For AC SSR or relay type outputs (Output Codes 1 or 3), 15 & 16, and 17 Output A & 18 are normally open. See Rating Label for details. For Pulsed DC, Current, or DC SSR Output B ouputs (Output codes 2, 4, or 8), 15 &...
  • Page 7 OPTION/TERMINALS PV1 PV/SV Retransmission, Current (e.g. 4-20 mA) PV2 PV/SV Retransmission, Voltage (e.g. 0-10V) 992, 996 RS-485 Serial Communications 993, 995 RS-232 Serial Data In Data Out Signal Ground Communications Page 7 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...

  • Page 8: Front Panel Key Functions

    FRONT PANEL KEY FUNCTIONS The decimal point flashes when Self Tune is operating. Keys are illuminated when pressed. Key functions are as follows: INDEX: Menu Navigation. Pressing the INDEX key advances the dis- play to the next menu item. May also be used in conjunction with other keys as noted below.

  • Page 9: Security Level Selection

    ing the control (similar to turning power off and on). ‘Global Reset’ will allow recov- ery from errors and reset the following menu items: i.H: Alarm inhibit 0PEn 1nP: Input error nP: Input err CHEC CAL: Check calibration Correct the problems associated with the above conditions before using the reset keys.

  • Page 10: Notation Conventions For The Menus

    PASSWORD TABLE Security Level Displaying Value Password Value To Menu Status When Viewed Enter Primary Locked Secondary Locked 1110 Secure Locked Primary Unlocked Secondary Locked 1101 Secure Locked Primary Unlocked Secondary Unlocked 1011 Secure Locked Primary Unlocked Secondary Unlocked Secure Unlocked NOTATION CONVENTIONS FOR THE MENUS Because of the number of features available in this control, information is included...

  • Page 11: The Home Display

    THE HOME DISPLAY The home display is the normal display while the control is operating. If no errors or functions are active, the HOME display will indicate the Process Variable (the tem- perature, pressure, flow, RH, etc., that is being measured) on the top display and the Set Variable (Set Point 1) on the bottom.

  • Page 12: Program Setup

    to program the target set point and the time desired to reach that point. When the ramp segment is executed by the control, it calculates the ramp required to move the process from the starting value (current PV) to the desired value (programmed SP) in the time allowed.

  • Page 13: Ramp / Soak Operation

    to the target value desired for the first ramp. This value is in actual units just like . If the control is programmed for temperature, then the SP displays are in temperature. If the control is programmed for some other engineering unit, the SP is set in that unit.
  • Page 14 Pressing the AUTO / MANUAL key will also suspend the program operation. The difference is that AUTO / MANUAL also puts the control into manual mode. See Auto / Manual operation on page 14. StAt The function of the Primary Menu will change depending on the setting of the menu StAt item in the Secondary Menu.

  • Page 15: Auto / Manual Operation (16A3 Only)

    AUTO / MANUAL OPERATION (16A3 ONLY) The AUTO / MANUAL function allows you to manually adjust the output of the con- trol. This is normally used during process setup or start up. It can also be used for troubleshooting. To switch from AUTO to MANUAL press the AUTO / MANU- AL key and hold for three seconds.

  • Page 16: Operation Self Tune Function

    Operating of Self Tune Function Self Tune allows automatic selection of the necessary parameters to achieve best control operation from your 16A2 & 16A3 Series control. If you are using the con- 0n0F trol output as a simple on-off function ( set for ), none of the following will apply.

  • Page 17: Operation And Programming Of Options

    OPERATION AND PROGRAMMING OF OPTIONS Option 992, 993, 995, 996 Serial Communication The serial communications options allow the control to be written to and read from a remote computer or other similar digital device. Communication is allowed either through a RS-485 (Option 992, 996) port, or a RS-232 (Option 993, 995) port. Wire the communication lines as shown on Page 7.
  • Page 18 This is the type of memory that all Love Controls uses to save the settings your program in your con- trol. The reliability and longevity of the data retention is what allows us to guarantee a 10 year data retention without power.
  • Page 19 If you think about how long it would take a million changes to the control program- ming through the front key pad, you will see that it would take a very long time to get to use up the life of the EEPROM. Adding one of the computer communications options (e.g.

  • Page 20: Menu Selections

    MENU SELECTIONS PRIMARY MENU Press INDEX to advance to the next menu item. Press UP ARROW or DOWN ARROW to change the value in the display. Press ENTER to , the three program status retain the value. If StAt, (Secondary Menu [16A3]), is menu items shown on Page 14 will precede the folowing.
  • Page 21 0ut1 0n0F ProP Output selection: Select , or #PuL 0n0F A setting of 0n0F allows the control to operate in simple on/off mode. This setting forces the control to turn off at set point, and on at the set point plus the differential ( SP1d ).
  • Page 22 The following menu items apply only if your control is equipped with a sec- ond set point (last digit of model number is not zero). If your control does not have a second set point, jump to the tunE menu on the next page. 0ut2 ProP Output selection: Select OnOF, #...
  • Page 23 (Option 948, 4-Stage Set Point) Active Set Point Stage. Select 1SP1 25P1 35P1 45P1 . (See Page 17 for more detail.) 1SP1 Set Menu Items to display Stage 1 for view and change access. If SPSA is set for 1SP1 is made active.
  • Page 24 Automatic Reset Time. Select minutes. Select to switch to Manual Offset correction Select. Select percent. Select to switch to Rate Time. Select minutes. Derivative. PID values are preset for a slow response process. PID values are preset for a normal response process. FASt PID values are preset for a fast response process.
  • Page 25 FrtE 0.00 99.99 Fuzzy Logic Rate of Change: Select counts/second. For best initial setting, find the counts/second change of process value near Set Point FrtE 1 with output ON 100%. Multiply this value by 3. Set to this calculated value. The Peak feature stores the highest input the control has measured since the last reset or Power On.
  • Page 26 tbAS Select 60_S Ramp/Soak Time Base (16A3): Ramp/Soak time base is in 1 second increments. Program time 16ti is measured in seconds. 60_S Ramp/Soak time base is in 60 second increments (minutes). 16ti Program time is measured in minutes. The following items repeat in the following order: is pro- EUnt 16ti...
  • Page 27 LPbr 9999 Loop Break Protection: Select seconds. If, during operation, the output is minimum (0%) or maximum (100%), and the input moves less LPbr L00P bAd than 5°F (3°C) or 5 counts over the time set for , the mes- sage will appear.
  • Page 28 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
  • Page 29 Unit nonE. °F descriptor is On and temperature inputs will be displayed in actual degrees Fahrenheit. °C descriptor is On and temperature inputs will be displayed in actual degrees Celsius. nonE °F and °C descriptors will be Off. This is only available with Current and Voltage Inputs.
  • Page 30 APCt Select rEAL Manual and PctO display adjustment (16A3). rEAL Manual display will display output 0 to 100% relative to actual range of the output. Manual display will display output 0 to 100% relative to the settings. SEnC 4000 Sensor Rate of Change: Select °F, °C, or counts per 1 second period.
  • Page 31 S1St Set Point 1 state : Select dir or rE. Direct Action. As the input increases the output will increase. Most commonly used in cooling processes. Reverse Action. As the input increases the output will decrease. Most commonly used in heating processes. If 0ut1 (Page 21) is set for ##tP, #PUL, or ProP, then S10L and S10L appear.
  • Page 32 S1Pi Set Point 1 Power Interrupt. Select 0n or 0FF. Alarm Power Interrupt is 0n. Output will automatically reset on power-up if no alarm condition exists. Alarm Power Interrupt is 0FF. Output will be in the alarm condition on power-up regardless of condition of process.

  • Page 33: Alarm Type And Action

    force a full on condition for output devices which do not have bias adjustments. Factory set to 100 for all output codes. If 0ut2 is set to 0n0F (in the Secondary Menu), then the next three menu items can make the SP2 and SP2d settings act like a high or low alarm set point.
  • Page 34 example if a low alarm isrequired to be 5 degrees below the Set Point, then set A1Lo to -5. If a high alarm is required 20 degrees above the Set Point, then set A1Hi to +20. If the Set Point is changed, the alarm will continue to hold the same relationship as originally set.
  • Page 35 The following menu items apply only to the alarm. Alarm 1 function: Select 0FF, HiLo, EUnt Alarm 1 is disabled. No Alarm 1 menu items appear in the Secondary or Secure menus. A1Lo Low Alarm Only. appears in the Secondary Menu.
  • Page 36 A1LP 0oFF Alarm 1 Lamp: Select Alarm Lamp is ON when alarm contact is closed. 0oFF Alarm Lamp is OFF when alarm contact is closed. A1Lb Alarm 1 Loop Break. Select Loop Break Condition will cause an Alarm Condition. Loop Break will not affect the Alarm Condition. Addr (Option 992, 993, 995, 996, Serial Communications) Control Address: Set for Options 992 and 993.

  • Page 37: Error Messages

    ERROR MESSAGES Any error message may be cleared by using the ‘Global Reset’ by pressing and holding the INDEX & ENTER keys for five seconds. ACTION DISPLAY MEANING OUTPUTS REQUIRED This message Set point out- Correct the ambient tempera- ArEA appears if the puts ture...
  • Page 38 ERROR MESSAGES Any error message may be cleared by using the ‘Global Reset’ by pressing and holding the INDEX & ENTER keys for fi ve seconds. DISPLAY MEANING SP OUTPUTS ACTION REQUIRED Underflow or Overflow: Set point outputs May be normal if Input signals Process value has go above or below range ends.
  • Page 39 ERROR MESSAGES Any error message may be cleared by using the ‘Global Reset’ by pressing and holding the INDEX & ENTER keys for fi ve seconds. DISPLAY MEANING SP OUTPUTS ACTION REQUIRED Display is blank. Set point outputs Check that the power Instrument is not getting supply is on, measure No display...

  • Page 40: Specifications

    SPECIFICATIONS Selectable Inputs: Thermocouple, RTD, DC Voltage, or DC Current selectable. Input Impedance: Thermocouple = 3 megohms minimum. RTD current = 200 µA. Current = 10 ohms. Voltage = 5000 ohms. Sensor Break Protection: De-energizes control output to protect system after customer set time.
  • Page 41 Humidity Conditions: 0 to 90% up to 40°C non-condensing, 10 to 50% at 55°C non-condensing. Memory Backup: Nonvolatile memory. No batteries required. Control Output Ratings: SSR: 2.0 A combined outputs A & B @ 240 VAC at 25°C (77°F). Derates to 1.0 A @ 55°C (130°F). Relay: SPST, 3 A @ 240 VAC resistive;...
  • Page 42 -992 RS-485 Series Communications Port Compliance: EIA-485. Isolation: 500 VAC. Protocol: Lovelinks™ II. Address Range: 001H or 3FFH. Baud Rates: 300, 1200, 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, Mode: Half duplex. Character: 8 bits, 1 start, 1 stop, no parity. Number of units on line/ports : 32.
  • Page 43 Termination: 120 Ohms, balanced. Number can be increased through use of a repeater such as the Mother Node™. Consult factory for details. INPUT RANGES INPUT TYPE RANGE °F RANGE °C Type J or L Thermocouple -100 to +1607 -73 to +871 Type K Thermocouple -200 to +2500...
  • Page 44 FR# 949-1265 Rev. 9 ©Copyright 2012 Dwyer Instruments, Inc. Printed in U.S.A. 1/12 LOVE CONTROLS DIVISION Phone: 219/879-8000 DWYER INSTRUMENTS, INC. www.love-controls.com P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A e-mail: love@love-controls.com GlobalTestSupply www. .com uality Products Online at:...
