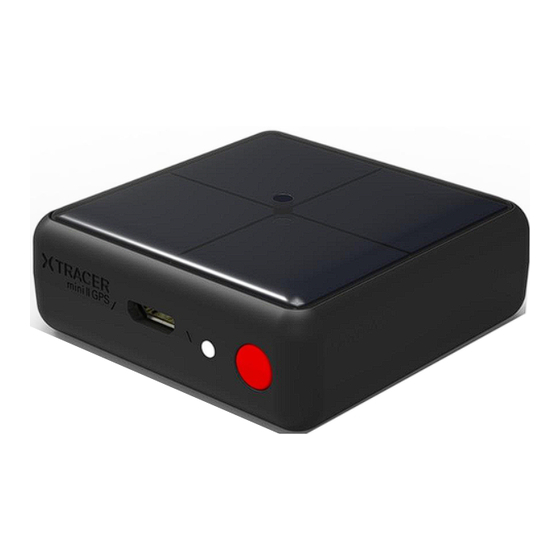

XC-Tracer XC Tracer Mini II GPS User Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
User Manual XC Tracer Mini II GPS
User Manual XC Tracer Mini II GPS
Rev 02 21.10.2018

Advertisement

loading

Summary of Contents for XC-Tracer XC Tracer Mini II GPS

  • Page 1 User Manual XC Tracer Mini II GPS User Manual XC Tracer Mini II GPS Rev 02 21.10.2018...
  • Page 2 Bluetooth Low Energy. Of course the variometer still indicates the lift / sink rate with beeping tones! Use the velcro to attach XC Tracer Mini II GPS to the shoulder strap of your harness, or to your cockpit, or onto your thigh.
  • Page 3 (this feature is described further below). It will then take a further 5-60 seconds for the GPS to get a fix. XC Tracer Mini II GPS will then make beep-beep-beeeeep and it’s now ready for flight.

  • Page 4: Battery Indicator

    Should it ever be necessary you can charge XC Tracer Mini II GPS using a Micro USB cable. It takes approximately 3 hours to fully charge the battery so it's best to leave it charging overnight.
  • Page 5 XC Tracer Mini II GPS Configuration File Connect XC Tracer Mini II GPS to a computer using a Micro USB Cable and once connected, switch the device on by briefly pressing the red button until you hear a beep-beep-beep. XC Tracer Mini II GPS is now running in USB-MSD (Mass Storage Device) mode.
  • Page 6 Enter the immatriculation number (if you have one) of your glider here. # create your own vario tone settings below beepOnlyWhenFlying=yes When this is set XC Tracer Mini II GPS will be silent before takeoff. This is very helpful when you beepOnlyWhenFlying=yes have configured some kind of a thermal sniffer. With...
  • Page 7 XC Tracer Mini II GPS doesn't actually save the new configuration into its internal memory until it starts up in normal flight mode. So, press the red button briefly to unmount / eject the device from your computer, disconnect it from the USB cable, then turn XC Tracer on as normal.

  • Page 8: Warranty

    SD card. Troubleshooting In the rare event that XC Tracer Mini II GPS doesn’t respond when you push the red button, you can perform a hard-reset by pressing and holding the red button for approximately 1 minute. The battery will then get disconnected from the electronics.
  • Page 9 State of the arte electronics including a 9-DOF IMU, GPS, BLE and mems pressure sensor Solar cell with 22.5% efficiency Runtime with fully charged battery min. 20h (no sunlight) Size: 44.5 x 44.5 x 17.0 mm Weight 34g User Manual XC Tracer Mini II GPS Rev 02 21.10.2018...
