STEP 1: TTMEBRIDGEV2-RSData Preparation
Connect the serial cable adapter (black end) to either black port on the
TTMEBRIDGEV2-RSData. Plug the serial cable into the serial TTMEBRIDGEV2-
RSData cable adapter. Ensure the screws on all serial connections are tight.
STEP 2: TT33003G and TTMEBRIDGEV2-RSData Installation
Connect the TT33003G to the TTMEBRIDGEV2-RSData (see the diagram for correct
connections) using the supplied harnesses. Connect the serial cable to the
spreader control so the wiring is secure and will not be damaged. Install both
the TT33003G and TMEBRIDGEV2-RSData devices in a secure position where they
will not be subject to moisture damage and cannot easily be found (preferably
under the dash).
Ensure the TT33003G is installed flat with the correct side pointing skyward with no
metal blocking the unit from the sky.
inches to the vehicle's radio or BCM( Body Control Module).

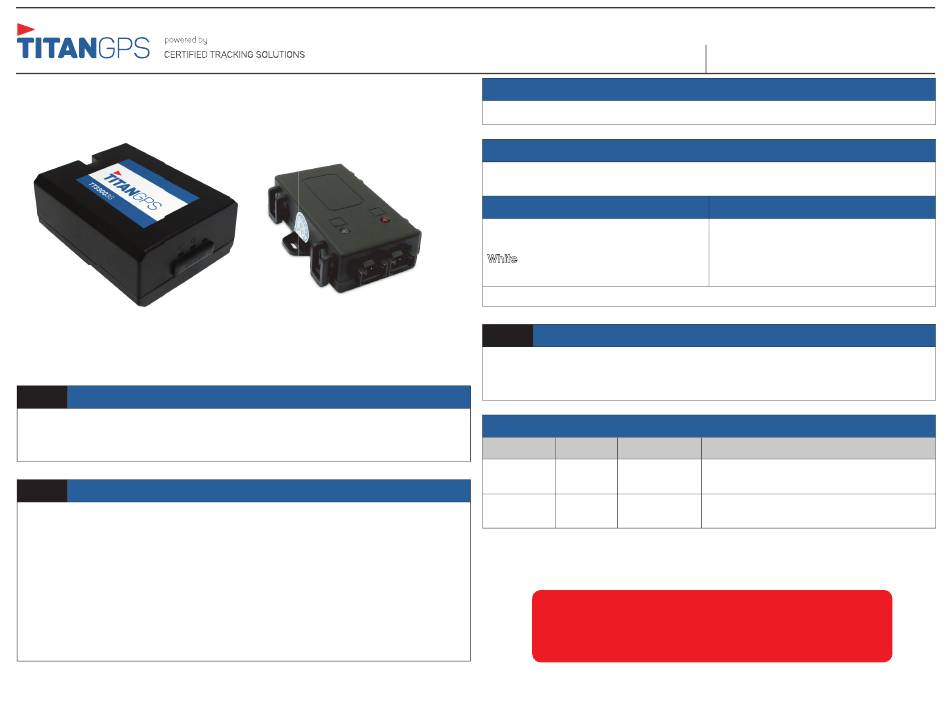

TT33003G TTMEBRIDGE2 - RSDATA
DO NOT install the devices closer than 18
Spreader Controls
Accucast 7000/7500 - Connection at back of cab to serial connection.
Primary Wire connections
The supplied harness comes pre assembled to give power to both the TT33003G
and the TTMEBRIDGEV2-RSData.
TT33003G
Black: Ground
Red:
12 Volts (Constant)
White: Ignition (MUST be a true ignition
source)
GROUND MUST BE CONNECTED DIRECTLY TO THE CHASSIS WITH PAINT REMOVED
STEP 3: Call to test
Call Certified Tracking Solutions at 1-780-391-3800 to test the modem to ensure it
is reporting correctly. This MUST be done to ensure proper installation. The hours of
operation are Monday to Friday, 8am to 6pm MST.
Confirm LED Status
LED Color
Type
LED Action
Blue
Double Blinks
Cellular
Green
GPS
Blinking
For Live Tech Support:
Call Certified Tracking Solutions at 1-780-391-3800.
8AM to 6PM Monday to Friday MST
www.TitanGPS.ca
QUICK INSTALL GUIDE
TTMEBRIDGEV2-RSData
Black: Ground
Red:
12 Volts (Constant)
Description
Indicates device has connected to the
cellular network
Indicates device has obtained a valid
GPS signal
REV032316
