Summary of Contents for Rak Ceramics RA-FS10

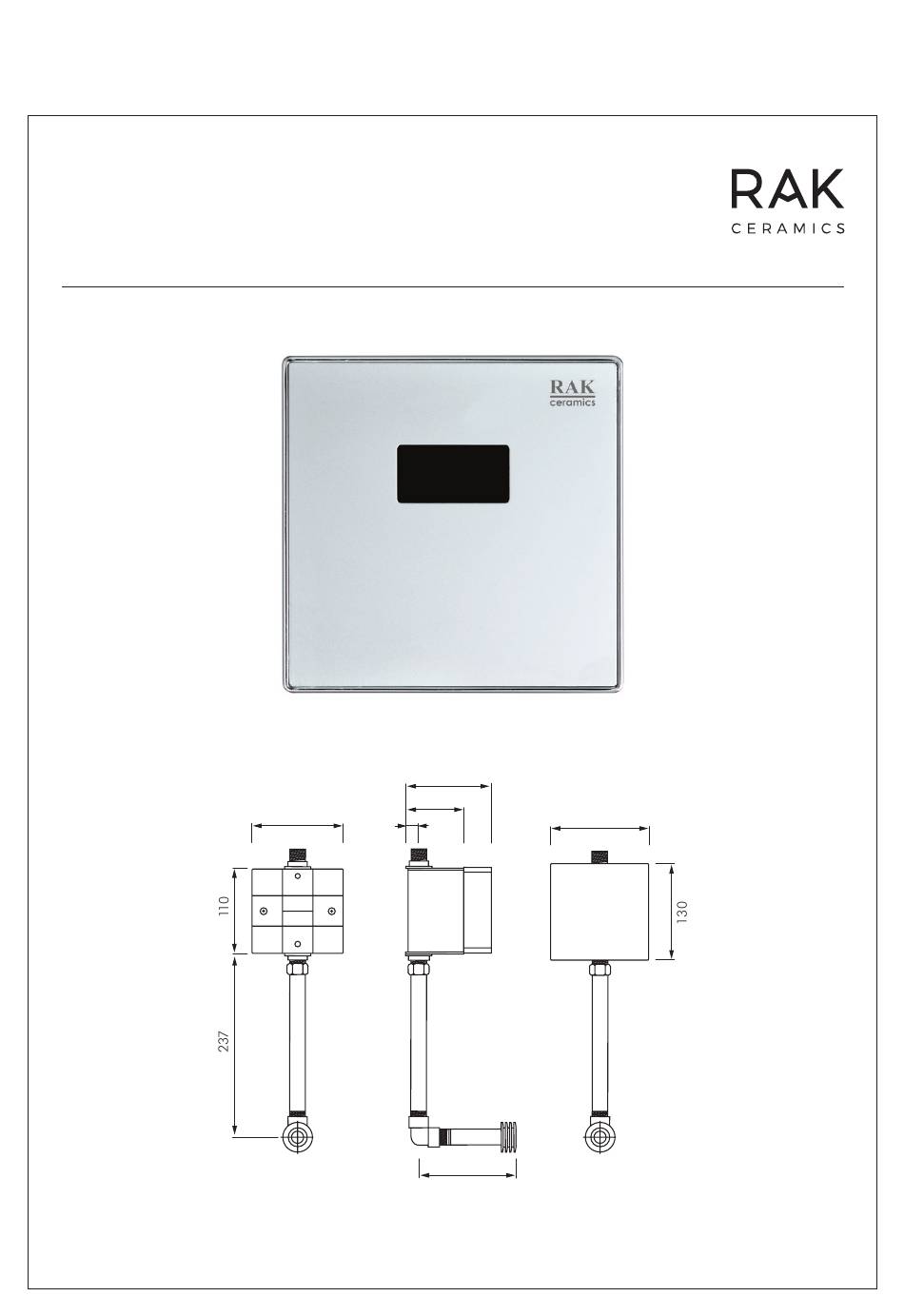

- Page 1 MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS RA-FS10 INDIVIDUAL ELECTRONIC URINAL SENSOR 16.5 G 1/2” www.macdonaldindustries.co.nz...
-
Page 2: Self-Cleaning
DESCRIPTION AND BENEFITS The RA-FS10 urinal sensor relies on infrared to detect a user and activate a flushing cycle. No physical contact with the sensor surface is necessary, assuring sanitary protection. Auto Closure For the AC powered product, the solenoid will always default to a closed position in case of power failure. -
Page 3: Installation Instructions
MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS suction cup www.macdonaldindustries.co.nz... -
Page 4: Specification Parameter
SPECIFICATION PARAMETER Model FS10RAK Power 4 “AA” size alkaline batteries AC: 100V ~240V/50 ~60Hz (Option) Working Environmental temperature:0-45C temperature Water temperature:4-45C Battery life About 2 years based on average 4000 flushing cycles per month. Sensing distance Factory set valve at 65cm (adjustable) Pre-flush There is no pre-flush when the time interval of usage is less than 1 minute. - Page 5 MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS Fuzzy Logic Controlled Water Volume AFTER USE FLUSH I. Automatically adjusts flush volume according to usage frequency. The flushometer delivers the ideal flush volume according to the frequency of use; - When the interval between use is short, which means high use frequency (as per drawing 1), the flushometer will automatically deliver about 0.7L per flush, for the first 5 flushes, and then increase...
-
Page 6: Usage Cautions
USAGE CAUTIONS The flushometer contains electronic components. Please note the following cautions; CLEANING AND MAINTENANCE 1. The sensor plate can be cleaned by soft rag with neutral liquid detergent. 2. Do not use eradicator, abrasive powder or oil, acid or alkali liquid detergent and nylon brush to clean the product, to avoid damage. - Page 7 MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTION Note Inside the water supply pipe, there might be sand, rust and other impurities that will influence life of solenoid valve. Hence always clean the supply pipe before installation. 125.7 125.7 125.7 85-105 85-105 85-105 www.macdonaldindustries.co.nz...
- Page 8 www.macdonaldindustries.co.nz...
-
Page 9: Battery Replacement
MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS BATTERY REPLACEMENT suction cup suction cup suction cup suction cup Use suction cup to remove face plate Use suction cup to remove face plate Use suction cup to remove face plate Use suction cup to remove face plate www.macdonaldindustries.co.nz... -
Page 10: Maintenance
MAINTENANCE 1. Water volume adjustment When there is too little or no water ushing the urinal, follow steps 2 and 3 on Page 9 to remove cover and outer box. Using a at screw driver, rotate the adjustor screw clockwise for less water or anti-clock- wise for more water. - Page 11 MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS M10 Hex wrench M10 Hex wrench M10 Hex wrench Follow steps 2 & 3 on Page 9 to M10 Hex wrench remove face plate and outer box. Follow steps 2 & 3 on Page 9 to Follow steps 2 &...
- Page 12 Problem Cause Solution Reference Steps Battery is out of electricity Replace new battery Reference page 9 Sensor window needs Remove the dirts cleaning Connect water supply and Water supply is cut off No flushing wait for the water Filter is dirty and causes Clean the filter Reference page 11 block...
