Summary of Contents for Aprove D9500SC

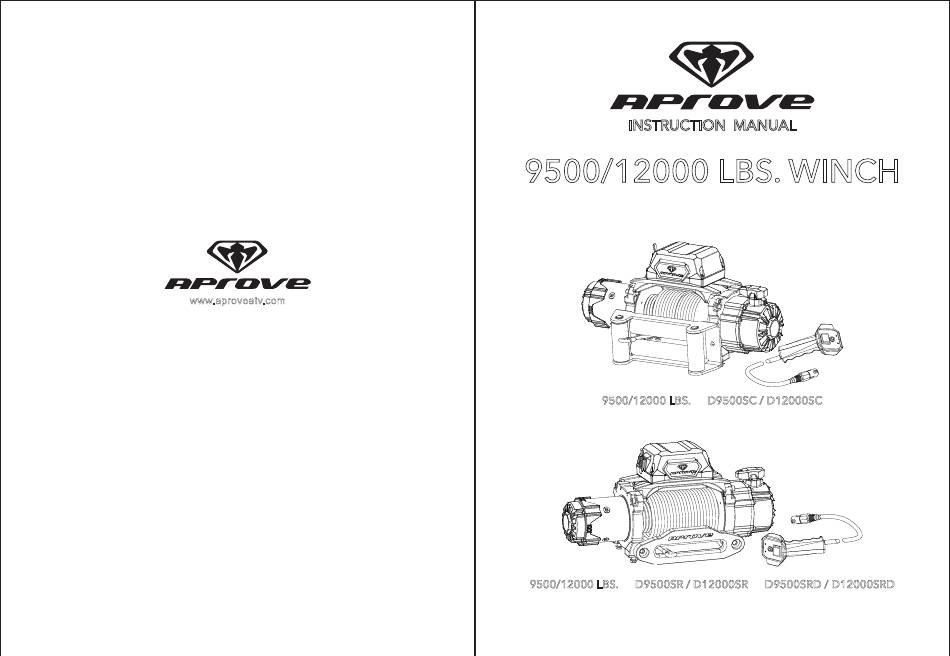

- Page 1 INSTRUCTION MANUAL 9500/12000 LBS. WINCH MODEL: D9500SC / D9500SR / D9500SRD D12000SC / D12000SR / D12000SRD www.aproveatv.com 9500/12000 LBS. D9500SC / D12000SC 9500/12000 LBS. D9500SR / D12000SR D9500SRD / D12000SRD...
-
Page 2: General Safety Precautions
Drum Diameter / Length: 2.5" / 8.8" (64 mm X 223 mm) MOVING PART HAZARDS TAKE YOUR TIME. Wire Rope: 91.84' , 0.33" Diameter (28 m , 8.3 mm Dia.) (for D9500SC) TO PREVENT SERIOUS INJURY AND SLOPPY RIGGING CAUSES ACCIDENTS. - Page 3 Mounting using the mounting frame. Fairlead: 4-Way Roller Fairlead (for D12000SC) (Sold separately. Please contact Aprove authorized distributors / retailers) Fairlead: Aluminum Hawse Fairlead (for D12000SR / D12000SRD) 1. Select a mounting site on the vehicle bumper, truck bed, boat trailer or other suitable location.
- Page 4 WASHER M10 SPRING WASHER M10 NUT M12 Figure B : 4-way roller fairlead and winch attachment to frame (for D9500SC / D12000SC) (Proportions and exact alignment may vary) Figure D : Three possible solenoid assembly locations 3. Mount the winch to the mounting frame using supplied bolts and lock washers.
-
Page 5: Operation
4. Attach the red, blue and yellow cables to the terminals on the winch. The winch terminals are color-coded. WARNING! 5. Attach the circuit breaker to the positive terminal on the battery. WARNING! LEAVE AT LEAST 5 FULL TURNS OF ROPE ON THE DRUM. 6. -
Page 6: Low Speed
APROVE Authorized Service Centers. Attach your name, address, telephone number, a description of the problem, and a copy of your receipt and original bill of sale bearing the APROVE serial number of the defective winch and date of purchase.
