Summary of Contents for RSL CG5

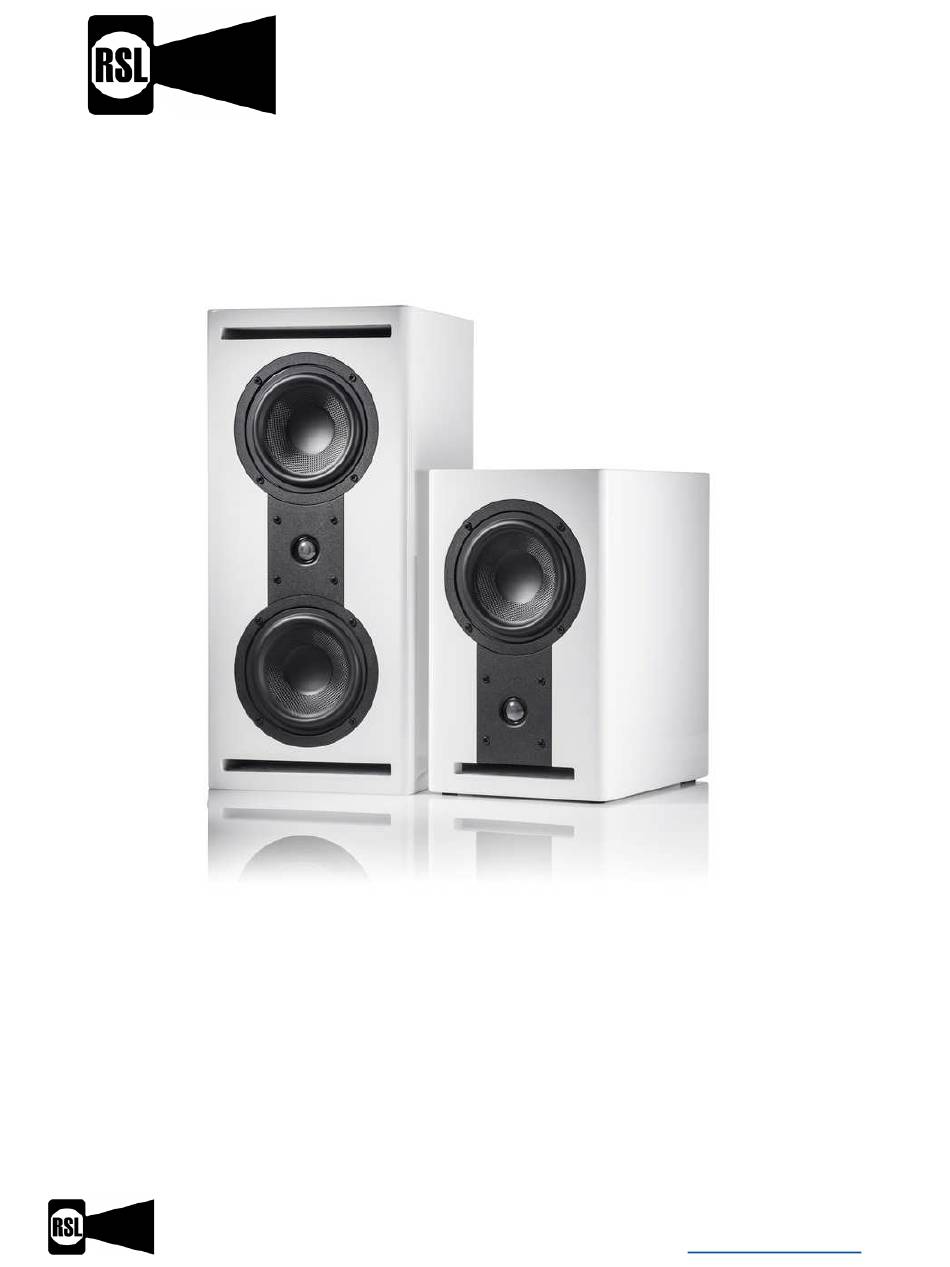

- Page 1 CG5 - CG25 OWNER’S MANUAL Everything you need to know….. And less. 800-905-5485 SPEAKERS www.rslspeakers.com...
-
Page 2: Introduction
Although we did spend considerable time producing this manual, it still wouldn’t compare to the time we spent developing the RSL CG5 and CG25 speakers. If you have a question this manual doesn’t address, feel free to contact us. We’re easy to reach. Unlike many companies, we don’t try to hide our toll-free number (800) 905-5485. -
Page 3: Compression Guide Technology - History
History has proven us right. The new CG5 and CG25 took over 3 years to develop and represent the most accurate sound yet. Standard Enclosure... -
Page 4: Cg5-25 Features
The CG5 and CG25 use only air core coils and polypropylene capacitors. Unlike our competitors, we do not use distortion-producing iron core coils or electrolytic capacitors. -
Page 5: First Steps
Built-in threaded inserts for wall and ceiling mounts (optional) that allow you to aim the speakers. First Steps If you don’t mind us passing on a little advice, you might wind up enjoying your RSL Speakers a bit more: ... -
Page 6: Table Of Contents
Positioning Your Speakers………………..………………………………...……….…………………………………… …… Wall Mounting Your Speakers………………..………..………………………….…… ………………………… … ..……… ……………………………… …. 9 Setup Hints……………………………………………………….………...………… …… Setting The Subwoofer Crossover…………..………..…. ………………………………………………… …… …… CG5 Tweeter Control…………………………..………..………………….………………………………………… …… Installation…………………………………..………..………………………………...………………………………… … …… Other Tips…………………………………..………..………………………………… ….…………………………… … …. Care And Maintenance…...……………………...…..………………………. … ……………………..…… ………... -
Page 7: Getting The Best Performance
Getting The Best Performance We’ve spent a long time developing the CG5 and CG25 so you can have speakers that will thrill you every time you listen. In order to enjoy them to their full potential, we would like to make some suggestions: Break-in Time Any high-end speaker system needs time to break in. -
Page 8: Positioning Your Speakers
Our email address is sales@rslspeakers.com. Are you planning on using the CG5’s or CG25’s in stereo? We suggest that, if possible, you put them on stands and position them 2-3 feet away from the wall. This will allow them to provide the best depth of im- age and soundstage. -
Page 9: Setup Hints
The recommended start- ing point is an 80 Hz crossover for the CG5, CG25, and the subwoofer. After auto setup, you may need to manually go into the A/V receiver’s menu and change the crossover settings. -
Page 10: Setting The Subwoofer Crossover
CG5 Tweeter Control The CG5 has an adjustable tweeter control on the back of the speaker. It can be used to adjust the brightness of the speaker’s treble. If your room is bright and reflective, you can set the control to low for reduced out-... -
Page 11: Installation
Installation Wire we hear? (This section is important) Before you start… Take a moment to read these recommendations. You will be quizzed at the end. Always shut off the power to all components before installing! 2. Use quality speaker wire. We recommend two-conductor wire with high quality copper. You’ll also want to make sure that there is a means of determining polarity (identifying the positive and negative strands). - Page 12 Properly twist wire to eliminate stray strands Do not allow strands to cause a short Listed below are the steps for wiring your RSL speakers. For alternative methods or suggestions, please con- sult the instructions that came with your receiver or amplifier.
-
Page 13: Other Tips
If your receiver has tone controls, we recommend that you set the bass and treble controls on your A/V re- ceiver to the flat or neutral position. Your RSL Speakers were designed to sound best this way. If you must use your tone controls, use the least amount possible.. -
Page 14: Care And Maintenance
Care And Maintenance Caring for your RSL Speakers is relatively easy. They do not require much on your part. We have listed the most important dos and don’ts below. 1. Clean your speakers using a soft, moist cloth (Windex or water is recommended), preferably lint-free. Do not put speakers in the washing machine or dish washer. -
Page 15: Specifications
Specifications RSL CG5 Woofer: 5.25” cast frame with woven fabric cone. Ferrite magnet Tweeter: 1” translucent silk dome, Neodymium magnet Frequency Response: 55-35,000 Hz ± 3db Recommended Impedance setting for amplifiers: 6 or 8 ohms (whichever is higher) Sensitivity: 86 db SPL @ 2.83V, 1 meter distance... -
Page 16: Troubleshooting
Troubleshooting As much as we try to cover all the topics, like most instruction manuals, we’ll probably address every prob- lem except the one you’re experiencing. We’re consumers ourselves and we don’t like it when we call sup- port and they direct us to their website’s FAQs, which are usually no help at all. So feel free to call or email us. -
Page 17: Warranty
Here are the terms (sorry, our lawyers made us do this): RSL warranties your speakers for a period of 5 years from the date of purchase. We warranty our subwoofer amplifiers for a period of 2 years from the date of purchase. Our products are warranted to be free of de- fects in original materials and workmanship.
