Table of Contents

Hardware Description

Here, you will be given the explanation of the front and rear panel of DTR5000N. Each of
display, ports, connections will be specifically explained.

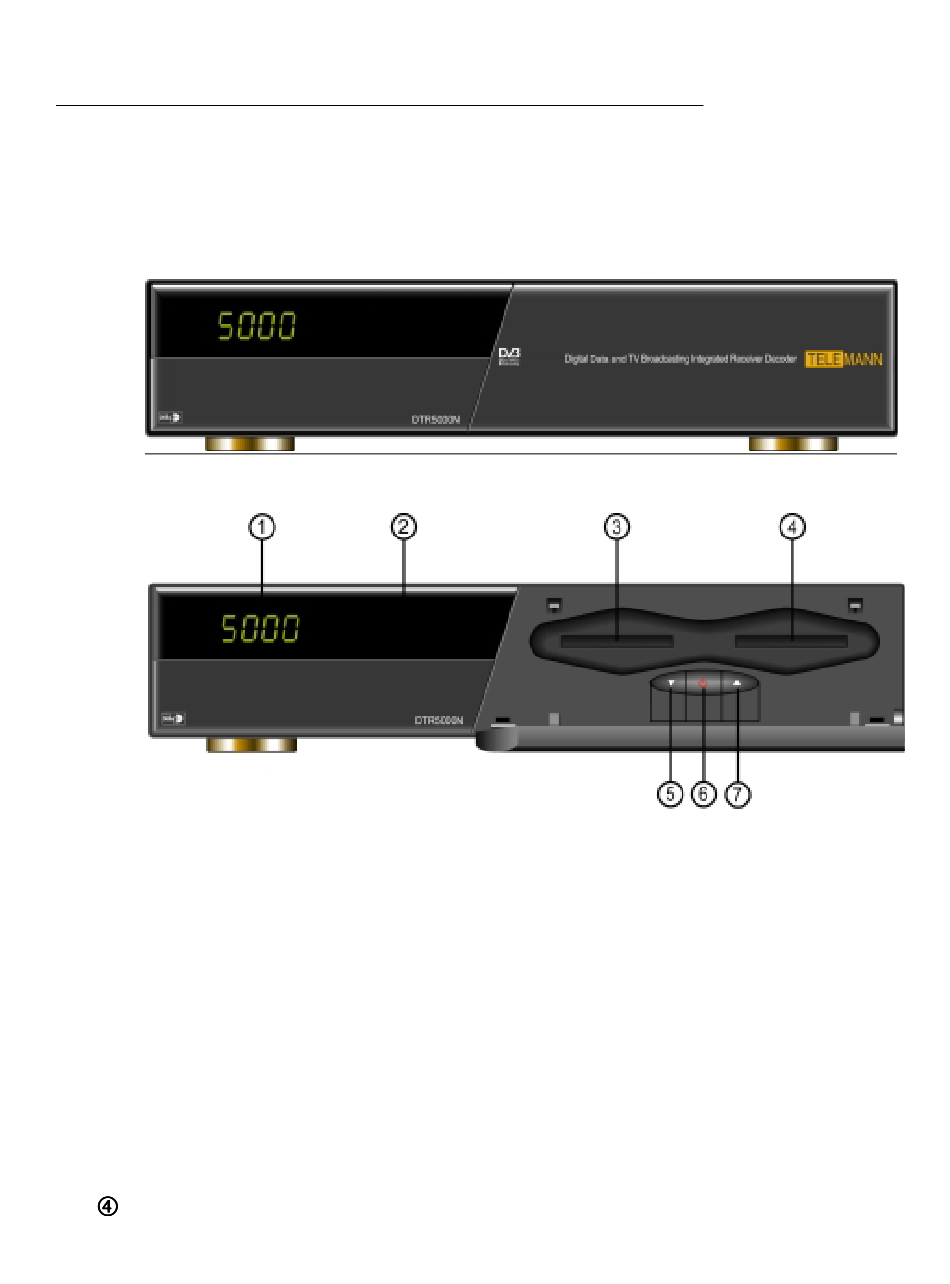

Front Panel Configuration

1
LED DISPLAY
This shows the channel number or other information as follows :
During power is off, the dash '-' will be displayed at each digit, which
indicates that your DTR5000N is in stand-by mode. Immediately after your
decoder turns on, 'C . . .' will in turn light up at each digit, which means that
your DTR5000N is ready to operate.
If your DTR5000N locks a channel, its channel number will be displayed.
Whenever you change the channel, the number of the changed channel will be
displayed.
2
REMOTE SENSOR
It receives the infrared signal from Remote Control and operates your
DTR5000N.
3
Smart Card and/or PCMCIA Card Slot (Option), or Not Used
These two slots can be used either for Conditional Access System with Smart
card, or Common Interface Module with PCMCIA card, or may not be used at
