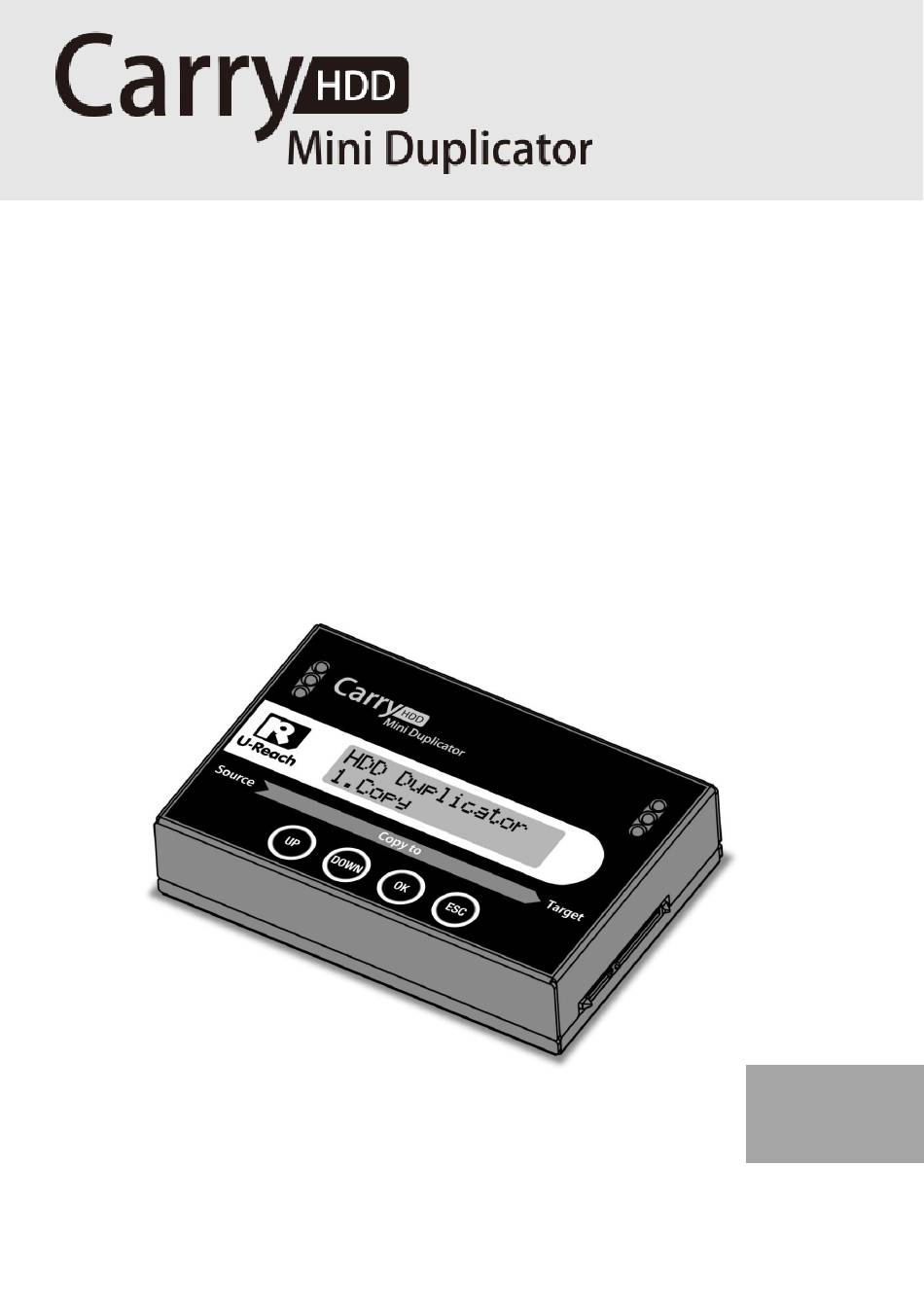

- Page 1 V 3.3 PRO118 (1-1) HDD Duplicator User Guide...
-
Page 3: Table Of Contents
5.2 Update System ..................... 13 5.3 System Info......................13 6. Setup ........................... 14 6.1 Copy Area......................14 6.2 Skip Error ....................... 17 6.3 Language ....................... 17 6.4 Advanced Setup ....................17 6.5 Restore Default ..................... 19 PRO118 Datasheet ....................... 20... -
Page 4: Product Disclaimer
Product Disclaimer U-Reach is not accountable for any incidental or consequential damages, which includes, but is not constrained to property harm, loss of time or data from use of a U-Reach product, or any other damages attributable to product malfunction or failure (including without limitation, those attributable to: (1) reliance of the materials provided, (2) costs of product replacement, (3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of legal... -
Page 5: Before You Start
Before You Start Important Notice ◼ Carefully read the entire manual before operating. ◼ Make sure the source device is correct and functioning. ◼ Equal capacity of source and target is recommended for guaranteed data consistency. ◼ Using the Copy+Compare function provides the most flawless duplication. ◼... -
Page 6: Product Features
Product Features Ultra-High Speed Support 3.5", 2.5" and 1.8" Ultra-high transmission speed for each Both SAS and SATA exist without requiring port operating individually. an additional adapter or manual change interface cable. 4 Copy Modes Quick Copy Mode Four copy modes to meet different Supports FAT16/32/64, ext2/3/4, NTFS, requirements: Systems and Files, All HFS/HFS+/HFSX, GPT, and Dynamic HDD... -
Page 7: Product Overview
Product Overview A. Hardware B. LCD Configuration... -
Page 8: Function Table
Function Table Function Description Copies data from source HDD to targets. (There are four 1. Copy copy modes for selection using function 6.1) Compares data bit by bit between source and target 2. Compare HDDs. First copies, then compares target HDD with source HDD 3. - Page 9 System and Files Copies source HDD's data only. ALL Partitions Copy Area Copies source HDD's all partitions. Setup copy Whole HDD mode. Copies the whole source HDD. Percentage (%) Sets percentage range of HDD for copy. 6.2 Skip Error Sets skip error of source HDD while Copy/Compare/Erase.
-
Page 10: Function Introduction
Function Introduction 1. Copy Step 1: Prepare source and target devices. Prepare a source HDD and target HDDs. Recommendation: Target device(s)’ capacity must be equal to or Note larger than the source device capacity. Step 2: Connect source and target device. Step 3: Proceed to copy. -
Page 11: Compare
2. Compare Proceed to verify device(s). Scroll to select "2. Compare", then press "OK" to start the verification process. 3. Copy+Compare Sequentially automates from Function 1, Copy to Function 2, Compare. Scroll to select "3. Copy+Compare", then press "OK" to start the automated duplication and verification process. -
Page 12: Dod Erase
4.3 DoD Erase This function will erase all data per DoD 5220.22-M Standards on the connected device(s). Scroll to select "4.3 DoD Erase", then press "OK" to start the erasing process. [02] 74.5G Port No. Total capacity Erase (3) [4M] 5.2G Erased capacity Erase Round. -
Page 13: Update System
5.2 Update System Step 1: Prepare a device for update. Connect a device to the source port. Scroll to select "5.2.2 Create BIOS Format”, then press "OK" to start the format process. This will format the device to a 2GB FAT32 Partition. [Update System] 2. -
Page 14: Setup
6. Setup This menu contains submenus related to device information, system information and updates. Scroll to select "6. Utility”, then press "OK" to view the submenus. 6.1 Copy Area There are 4 submenu modes. Scroll to select "6.2 Copy Area”, then press "OK.” Then scroll through to select one of the four copy methods. - Page 15 ◼ System and Files (Quick Copy data area only) Copies data and skips empty space. Supports only standard formats. Scroll to select "System and Files”, then press "OK" to save the copy method. Allows user to copy source device’s System and Files, instead of the entire device.
- Page 16 ◼ Whole HDD Copies all source data bit by bit. Scroll to select "Whole Device”, then press "OK" to save the copy method. Copies the whole source device, irrespective of content, format, partition or empty space. This mode does not analyze the data. ◼...
-
Page 17: Skip Error
6.2 Skip Error Skip source bad sectors. Scroll to select "6.3 Skip Bad Sectors”, then press "OK" to scroll through the available values for skipping bad sectors. If the device data is critical and needs to be a full clone, it is recommended to set “Skip Bad Sectors” at "0.” Bad sectors can be set as unlimited or at a value from 0 to 65,535. - Page 18 ◼ Skip Unknown Skip unknown format(s). Scroll to select "6.7.1 Unknown Format >> Skip Unknown”, then press "OK" to save this setting. 6.4.2 Erase Master This function allows user to enable or disable the source port for sanitization. Scroll to select "6.7.2 Erase Master”, then press "OK.” Then scroll through to select one of two settings.
-
Page 19: Restore Default
6.4.4 Wait HDD Time Sets device power up buffer time prior to copy, erase, etc... Scroll to select "6.7.4 Wait HDD Time”, then press "OK" to set buffer time from 3 to 30 seconds. The default is 15 seconds. 6.4.5 Transfer Rate Allows user to select the transfer rate. -
Page 20: Pro118 Datasheet
Controller Design Constant improvement supports latest market available ● devices. Transfer Speed PRO118 speed transfers of up to 7.2 GB/min. Read-Only Source There is no option to disable this built-in feature and it is Port integrated with all U-Reach duplicators. - Page 21 Skip Bad Sectors Sets the number of bad sectors to skip. Unknown Format Sets whether to copy or skip unknown formats. Erase Source Port Enables or disables source port from being erased. Transfer Modes Sets the transfer rate. Product Compatibilities Compatibilities Descriptions 1.8"/2.5"/3.5”...
