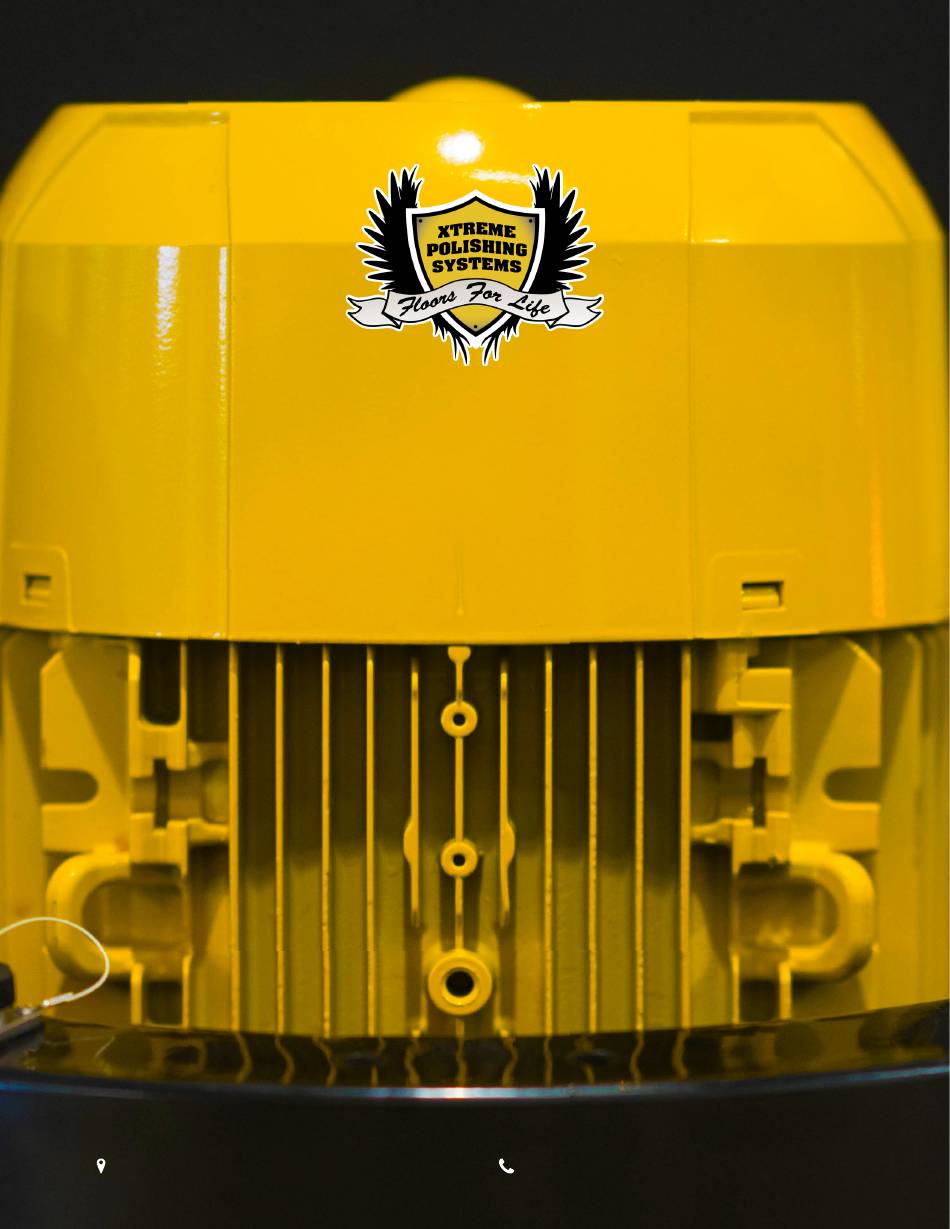

- Page 1 G R I N D I N G • M A C H I N E P ro d u c t Cod e * Mammoth800 2200 NW 32ND ST. POMPANO BEACH, FL 33069 TOLL FREE (800) 659-5843 • FAX (954) 933-3473...
-
Page 2: Table Of Contents
1. When the machine is received, carefully inspect parking and if damage is evident. Keep shipping carton should there be a need for additional inspection. 2. If damage is detected contact the freight company and Xtreme Polishing Systems, Customer Service Department. - Page 3 Manual - Mammoth Th an k you for c h oosi ng the MA MM OT H grind ing mac h in e , d e sig n e d w it h un iq ue d o ub le ge a r -d rive n pl a ne tar y , i t i s th e best in t he ind us tr y and it of fer s a t hr e e (3 ) or fo ur (4 ) h e ad o p tio n .
-
Page 4: Machine Structure
Manual - Mammoth M achine Stru ctu re Model Grinding Area Inverter Amps Weight Voltage Mammoth 800mm 15KW 500KG 3 Phase 220V / 380V / 460V... -
Page 5: Machine Parts
Manual - Mammoth M ach ine Par t s Name NO 1 Handle Base NO 2 Folding Panel NO 3 Electrical Box NO 4 Magnetic Base for Folding Panel NO 5 Hand Adjust Bottom Pane NO 6 Water Tank NO 7 Weight - 1 NO 8 Weight - 2... -
Page 6: Machine Features
Manual - Mammoth Machine Features: All gears are designed with both high strength and a high precision helical gear, the box is built by a precision CNC machine & composed of high strength aluminum alloy, three coordinate detection ensures the service life of the ma- chine. -
Page 7: Machine Operation Procedures
Manual - Mammoth Machine Operation Procedures 1. Check condition of machine before operation, ensure tools, choose magnetic connection abrasive tools, make machine operation control and electric parts without sure tools enter into magnetic disc; when choose screw connection abrasive tools, make sure tighten nut; when damp phenomenon, and operation switch knob are in good condition. -
Page 8: Troubleshooting
Manual - Mammoth Troubleshooting Trouble Abnormal Cause What To Do Phenomenon 1.improper line connection 1.Check line connection and power input termi- Machine Fails to 2.Unmatched output voltage nal; Make sure power output terminal no phase Start 3.Machine direction switch is broken open 4. - Page 9 Manual - Mammoth Troubleshooting Trouble Abnormal Cause What To Do Phenomenon 1.Water switch is broken 1.Replace water switch Water pipe 2.Water pipe and water tank is dirty 2.Open water tank, clear pipe and tank blocked 3.Water pipe is warping 3.Replacewater pipe 1.Non-full-phase of power supply 1.Check the power supply Unusual work...
- Page 10 Manual - Mammoth Troubleshooting Trouble Abnormal Cause What To Do Phenomenon 1.Unstable input voltage 1.Adjust to stable power supply point Big heating on 2.Wrong line connection 2.Replace matched Power line connection the machine 3.Loose wiring terminals 3.Fasten wiring terminals and make sure wire motor connection point in good condition 1.Emergency stop switch is broken...
-
Page 11: Coating Removal Process
Manual - Mammoth Coating Removal Process Blade-type tool is designed to remove coatings and start from the side not from the above. Note: do not spend much time on removing the coating at the same place by blade type tool and When remove the coating by metal bond tools, keep one half of the machine on the coating and the other half on the concrete. - Page 12 • • A N A M E R I C A N G R I N D E R C O M PA N Y www.xtremepolishingsystems.com ( 8 6 6 ) 8 1 2 -9 3 1 9 info@xtremepolishingsystems.com w ww . y ou t u b e.c om /us er/Xtre m ePol ishing 2200 NW 32n d Sree t # 700 www.facebook.com/xtremepolishingsystems P o m p a n o B e a c h , F L 3 3 0 69...
