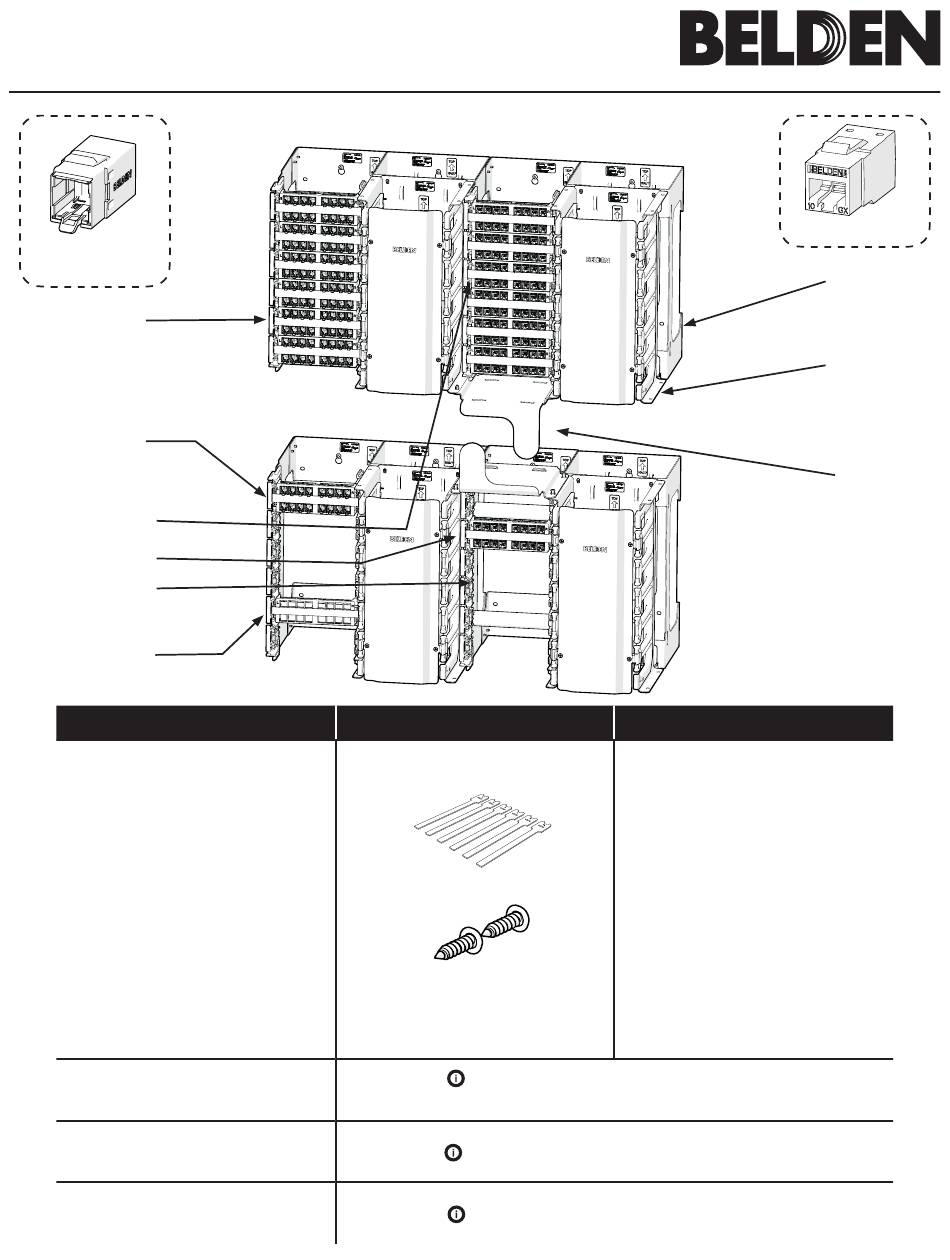

REVCONNECT 10GX WALL MOUNT SYSTEM

INSTALLATION GUIDE

PX106708 - EN REV A
REVCONNECT
Coupler
1
2
3
4
5
6
PRODUCT DESCRIPTION
Termination Kits:
1. 96-ports with Couplers (inclu.100 cores)
RVAXCTK96CBK
2. 16-ports with Couplers (inclu. 16 cores)
RVAXCTM16CBK
3. 96-ports with Jacks (inclu.100 cores)
RVAXCTK96JBK
4. 16-ports with Jacks (inclu. 16 cores)
RVAXCTM16JBK
Mount and Module:
5. Mount 96 ports (empty)
RVUXCMT96E
6. Module 16-ports (empty)
RVUXCCM16E
7 REVConnect Wall Cable
Dressing Module (Optional)
RVUCADM
8 REVConnect Wall Cable Management
Channel (Optional)
RVUPCMC
9 REVConnect Horizontal Channel Kit
(Optional)
RVUHOCK
HARDWARE KIT CONTENTS
Hook and loop cable ties of 8" - (6x)
Wood screws #10 x 0.75" - (2x)
Refer to PX106709 Installation Sheet for more information
Refer to PX106710 Installation Sheet for more information
Refer to PX106711 Installation Sheet for more information
Modular Jack
7
8
9
TOOLS REQUIRED
▪ Philips screw driver #2
▪ Marker
▪ Tape ruler
▪Spirit level
Page 1 of 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the RVAXCTK96CBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belden RVAXCTK96CBK

  • Page 1: Installation Guide

    Coupler PRODUCT DESCRIPTION HARDWARE KIT CONTENTS TOOLS REQUIRED Termination Kits: 1. 96-ports with Couplers (inclu.100 cores) RVAXCTK96CBK 2. 16-ports with Couplers (inclu. 16 cores) ▪ Philips screw driver #2 RVAXCTM16CBK ▪ Marker 3. 96-ports with Jacks (inclu.100 cores) Hook and loop cable ties of 8″ - (6x) ▪...
  • Page 2 REVCONNECT 10GX WALL MOUNT SYSTEM - INSTALLATION Wall Small/Medium cross-connect systems Additional horizontal capacity for (Recommended) large cross-connect systems (Optional) 4" REF 8" REF 8" REF 72" 4" REF 48" 48" 18" REF 14" REF REVCONNECT 10GX WALL MOUNT SYSTEM PX106708 - EN REV A Page 2 of 8 INSTALLATION GUIDE...
  • Page 3 Reference line 10" 72" Reference line 48" Hold Tighten partially REVCONNECT 10GX WALL MOUNT SYSTEM PX106708 - EN REV A Page 3 of 8 INSTALLATION GUIDE...
  • Page 4 Alternate mounting holes (4x) Reference line 8" Reference line RVUCADM installed: Refer to PX106709 installation sheet for further information. = Previously installed components REVCONNECT 10GX WALL MOUNT SYSTEM PX106708 - EN REV A Page 4 of 8 INSTALLATION GUIDE...
  • Page 5 Cross Connect side 1 System Growth 8" Cross Connect side 2 = Previously installed components REVCONNECT 10GX WALL MOUNT SYSTEM PX106708 - EN REV A Page 5 of 8 INSTALLATION GUIDE...
  • Page 6 REAR CABLE DRESSING RVUXCMT96E Shown RVUCADM Each bundle is composed by a Top View maximun of 96 cables. REVCONNECT 10GX WALL MOUNT SYSTEM PX106708 - EN REV A Page 6 of 8 INSTALLATION GUIDE...
  • Page 7 Starting at the bottom, separate the wide bundle into groups of 16 cable Pull cables as much possible and cut them. bundles maximum (use the supplied cable ties). Wide bundle Support Top cables must pass above the support bar Bundles composed with a maximum...
  • Page 8 REVCONNECT 10GX Wall Mount System - Installation Guide PX06708 - EN REV A This document is also available at our site: www.belden.com For more information about BELDEN Technical support, call at: 1-800-235-3361 Page 8 of 8...
