3+1 u cpci serial system

Advertisement

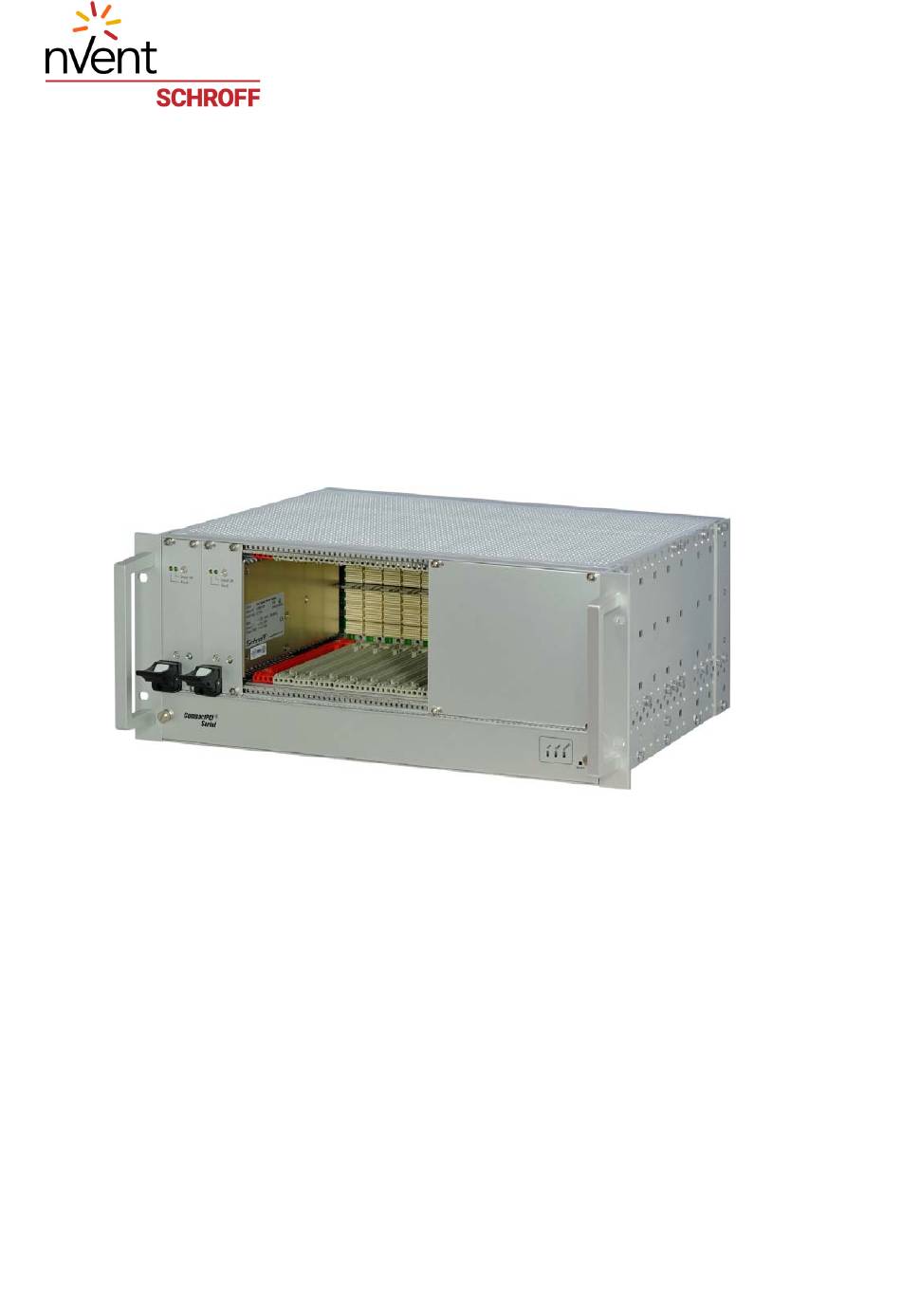

3+1 U CPCI Serial System
User's Manual
Product Number:
24579-416/417/418/419/420/421/422/423/424
January 2016
Doc-No: 63972-349_R1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Schroff 24579-416 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for nvent Schroff 24579-416

  • Page 1 3+1 U CPCI Serial System User‘s Manual Product Number: 24579-416/417/418/419/420/421/422/423/424 January 2016 Doc-No: 63972-349_R1.0...
  • Page 2 R1.0 January 2016 Initial Release Impressum:  Schroff GmbH  Langenalber Str. 96 - 100 75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints....
  • Page 3: Table Of Contents

    24579-4xx (CPCI Serial Systems 3+1 U) Safety ........................1 Safety Symbols used in this document................1 General Safety Precautions ....................1 References and Architecture Specifications..............2 Product Definition ......................2 System Overview....................... 3 Subrack..........................4 Backplane .......................... 5 Topology of a 9 Slot Backplane ..................6 Power Backplane.......................
  • Page 4 24579-4xx (CPCI Serial Systems 3+1 U) R1.0, January 2016...
  • Page 5: Safety

    24579-4xx (CPCI Serial Systems 3+1 U) 1 Safety The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. It indicates that there are dangerous voltages inside the Shelf.
  • Page 6: References And Architecture Specifications

    24579-4xx (CPCI Serial Systems 3+1 U) 1.3 References and Architecture Specifications • User Guide Schroff CPCI Serial Backplanes  Order no.: 63972-333 • User Manual Power Backplanes Order no.: 63972-334 • User Manual 19“ Power Supply 11098-538 Order no.: 63972-335 1.4 Product Definition The Schroff CPCI Serial system subracks are available in various backplane and PSU configurations and consist of:...
  • Page 7: System Overview

    24579-4xx (CPCI Serial Systems 3+1 U) 1.5 System Overview Figure 1: Front View 12315801 PSU 1 Front Panel 32 U PSU 2 Display Fan Tray 9 Slot CPCI-S Backplane Power Backplane 1 Fan Control Module (FCM) Power Backplane 2 R1.0, January 2016 Safety...
  • Page 8: Subrack

    24579-4xx (CPCI Serial Systems 3+1 U) Figure 2: Rear View 12315802 Temperature Sensor Ground Terminal Front Panel 32 U Power Backplane 2 Front Panel 12 U Power Backplane 1 AC mains/line module 1.6 Subrack The 4 U chassis is based on the Schroff europacPRO system with EMC shielding. The front card cage provides 9 CPCI Serial slots.
  • Page 9: Backplane

    24579-4xx (CPCI Serial Systems 3+1 U) 1.7 Backplane Figure 3: Example: 9 Slot Backplane with rear I/O, Systemslot left R1.0, January 2016 Safety...
  • Page 10: Topology Of A 9 Slot Backplane

    24579-4xx (CPCI Serial Systems 3+1 U) 1.8 Topology of a 9 Slot Backplane The CPCI Serial backplane with 9 slots supports the full set of serial links at all slots. The serial links (SATA/SAS, USB2/3, PCIe) are arranged as a Single Star architecture. Ethernet is implemented by 4 differential pairs in Single Star routing to support 10/100/1000/ 10GBase-T.
  • Page 11: Power Backplane

    24579-4xx (CPCI Serial Systems 3+1 U) 1.9 Power Backplane The Schroff CompactPCI Serial power backplane accepts a pluggable power supply with SSI- type connector. The power backplane provides +12 V payload power and for wake-up events an additional +5 V Standby voltage. More information in the backplane‘s user manual, order no.: 63972-334 Figure 5: Power Backplane R1.0, January 2016...
  • Page 12: Power Supply

    24579-4xx (CPCI Serial Systems 3+1 U) 1.10 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/ line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase an AC power cable that is approved for use in your country.
  • Page 13: Cpci Plug-In Ac Power Supply

    24579-4xx (CPCI Serial Systems 3+1 U) 1.10.1 CPCI Plug-In AC Power Supply Figure 7: Power Supply Table 1: Data AC Power Supply Input voltage nominal 100 - 240 VAC Mains Frequency 50 / 60 Hz Output (max.) 300 W Output voltages V...
  • Page 14: Cooling

    24579-4xx (CPCI Serial Systems 3+1 U) 2 Cooling The CPCI Serial boards and the power supplies are cooled by forced air convection through three 12 VDC axial fans located in a hot-swappable fan tray. 2 different fan trays are available: •...
  • Page 15: Air Filter

    24579-4xx (CPCI Serial Systems 3+1 U) 2.1 Air Filter An air filter is avalaible as an option. The air filter can be fixed with a mounting frame at the bottom of the fan tray. The filter meets the requirements of the Telcordia Technologies Generic Requirements GR- 78-CORE specification.
  • Page 16: Installation

    24579-4xx (CPCI Serial Systems 3+1 U) 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •...
  • Page 17: Rack-Mounting

    24579-4xx (CPCI Serial Systems 3+1 U) 3.2 Rack-Mounting This subrack system can be installed in 19“ equipment racks. The rack must be accessible from the front and rear for equipment installation. Mounting Instructions: • Ensure that the rack is constructed to support the weight and dimensions of the system. •...
  • Page 18: Service

    24579-4xx (CPCI Serial Systems 3+1 U) 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete system. For all product returns and support issues, please contact your Schroff sales distributor. We recommend that you save the packing material. Shipping without the original packing material might void the warranty.
  • Page 19: Scope Of Delivery (24579-421)

    24579-4xx (CPCI Serial Systems 3+1 U) 4.3 Scope of Delivery (24579-421) Quantity Description Shielded europacPRO chassis 4 U / 84 HP with front handles CPCI Serial backplane 9 slot 3 U with Rear I/O Power backplanes with SSI-type connector Front card cage for max. 9 boards 3 U 160 mm deep IEEE guide rails inc.
  • Page 20: Technical Data

    24579-4xx (CPCI Serial Systems 3+1 U) 5 Technical Data Table 2: Technical Data Dimensions Height 177 mm (4 U) Width 482.60 mm (19“) Depth (Card cage) 275 mm Depth (Overall with handles) 330 mm Weight Completely assembled approx. 9 kg Power Supply Input Voltage 100 VAC bis 240 VAC...
  • Page 21: Dimensions

    24579-4xx (CPCI Serial Systems 3+1 U) 6 Dimensions Figure 11: Dimensions R1.0, January 2016 Dimensions 17...
  • Page 22 24579-4xx (CPCI Serial Systems 3+1 U) Dimensions R1.0, January 2016...
  • Page 24 Schroff GmbH  Langenalber Str. 96 - 100 75334 Straubenhardt, Germany  +49.7082.794.0 +49.7082.794.200 schroff.nVent.com...
