Summary of Contents for Trac Vac DS400

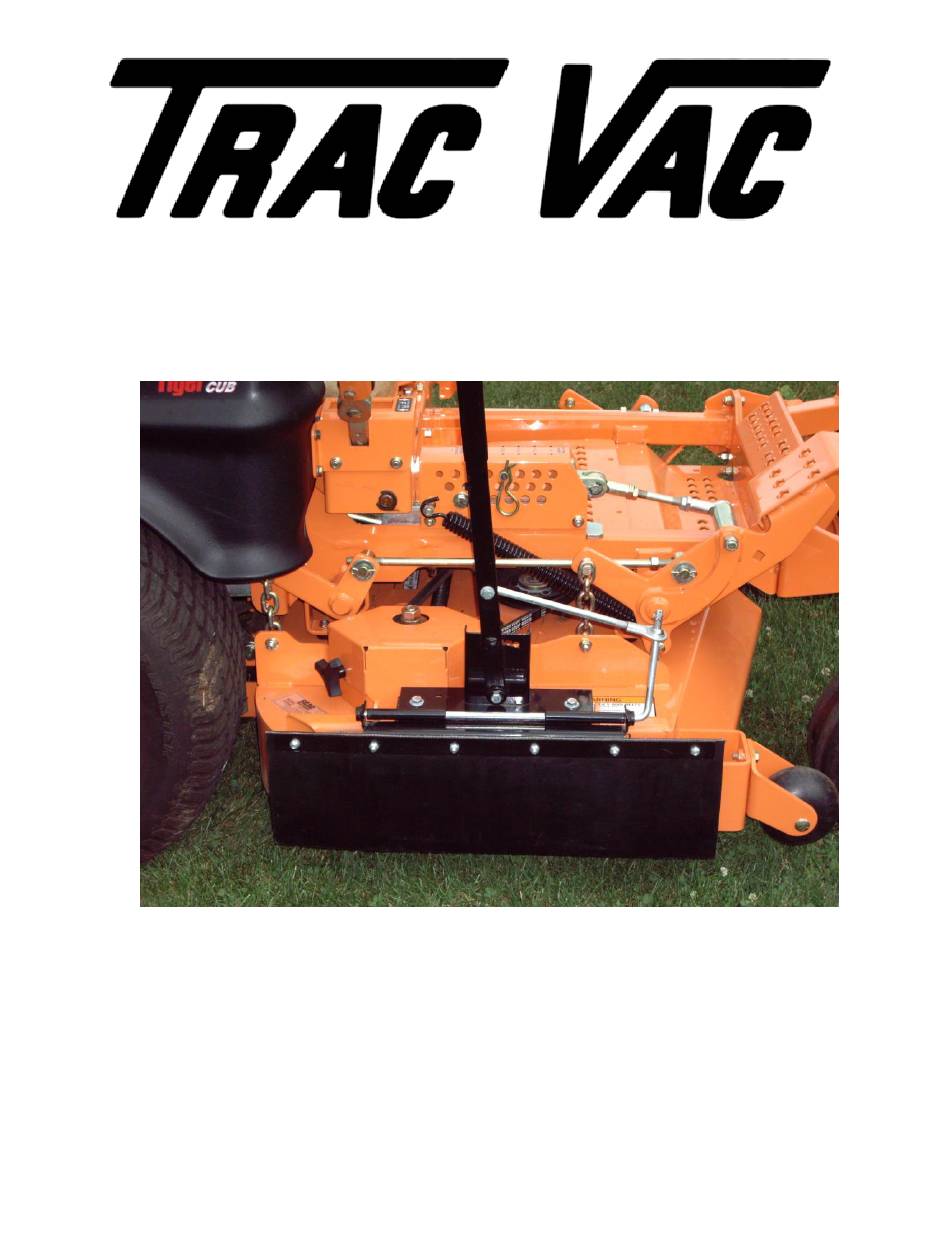

- Page 1 DS400 Discharge Shield Instruction Manual Midwest Equipment Mfg. 5225 Serum Plant Road Thorntown, IN 46071 5-09-12...
- Page 2 DS400 PARTS BREAK DOWN PART NO. DESCRIPTION DESCRIPTION DS11010 Pivot Ass'y 5/16"-18 x 1 HHC DS11022 Rubber Flap 5/16"-18 x 1 1/2" HHC DS11031 Flap Support 1/4" USS Flatwasher DS11040 Linkage 5/16"-18 Whizlock Nut DS11050 Mount Assembly 5/16"-18 Locknut DS11060 Pivot Pin 1/4"-20 x 1"...
- Page 3 Part No. DS400 The Diverter Fig. A Mounting Instructions Mounting to a deck with a vertical mounting surface: Loosely attach Diverter to angle mount flange with hardware provided. Hold Diverter with angle attached up to the deck, make sure the flap on the Diverter covers the front of the dicharge opening.
- Page 4 TRAC VAC WARRANTY POLICY Midwest Equipment Mfg. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
