Summary of Contents for Kino Flo FreeStyle 4

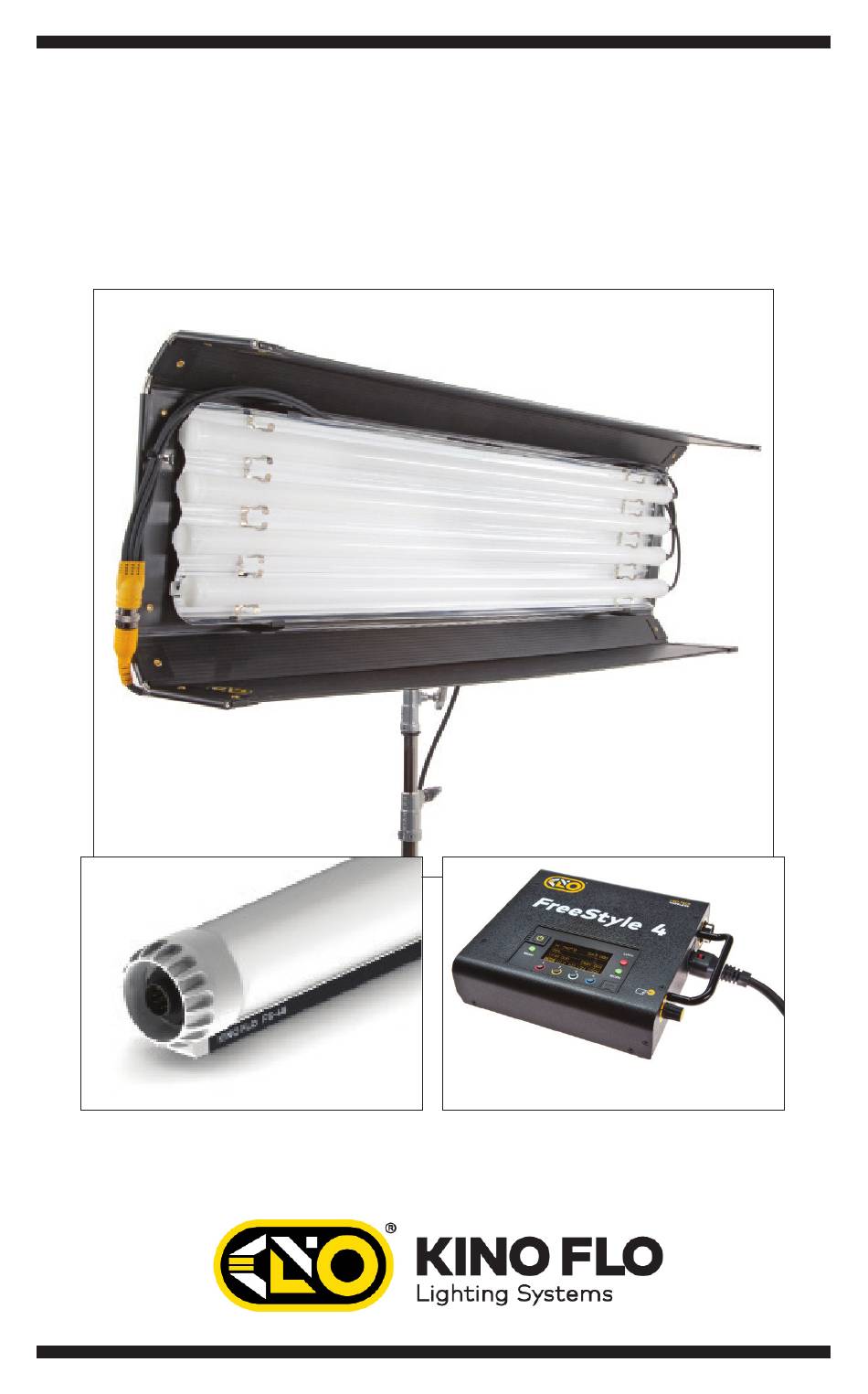

- Page 1 Quick Start Guide FreeStyle 4 LED CFX-F484 FS-48 LED-140X Part No. 3100117 Rev A 11-05-2018...
- Page 2 FreeStyle 4 System SYS-F484U FreeStyle T44 LED DMX System, Univ FreeStyle 4 LED System consists of: 1 FreeStyle 4 Fixture 1 Mounting Plate 1 Extension Cable 1 LED Controller 4 FreeStyle 4ft LED Tubes FreeStyle 4 System Components CFX-F484 FreeStyle T44 Fixture...
- Page 3 Power AC Input The FreeStyle 140 LED DMX Controller is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector. The FreeStyle 140 LED DMX has a built-in power supply with universal input from 100-240VAC.
- Page 4 FreeStyle Fixture Assembly The FreeStyle T44 fixture is comprised of a Louver, Reflector and Tube Harness. The Louver and Reflector are held in place with Velcro fasteners. The Tube Harness is secured by means of a ¼ turn fastener and Velcro. To Release the Tube Harness Remove the harness from the Velcro located under the...
- Page 5 FreeStyle Harness FreeStyle Harness: Align arrows on harness connector with tube. Push and click into place. To remove harness connector, turn locking ring to the left and pull. Push tubes into the fixture’s tube holder clips. The tubes can operate independent of the fixture allowing them to be built into sets or custom soft boxes or hand-held as a single...
-
Page 6: Mounting The Fixture
Mounting the Fixture The standard mount (MTP-KG41) comes with a 3/8” Lollipop that clamps into a grip head. The ball and socket mount allows the fixture to be oriented in a broad range of angles. Align the center pin of the mounting plate to the center hole on the mating plate. - Page 7 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 8 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
- Page 9 Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
- Page 10 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.
-
Page 11: Fixture Specifications
Fixture Specifications CFX-F484 FreeStyle T44 LED Fixture Weight w/ Tubes: 12.5 lb (6kg) Dimensions: 52 x 13 x 3.5” w/ 6.5” barndoors (132 x 33 x 9cm w/ 16.5cm barndoors) FreeStyle T44 LED Controller Specifications LED-140X FreeStyle 140 LED DMX Controller AC Input Voltage: 100~240VAC 50/60Hz, 150W Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC DC Input Voltage: 18~36VDC, 150W... - Page 12 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
