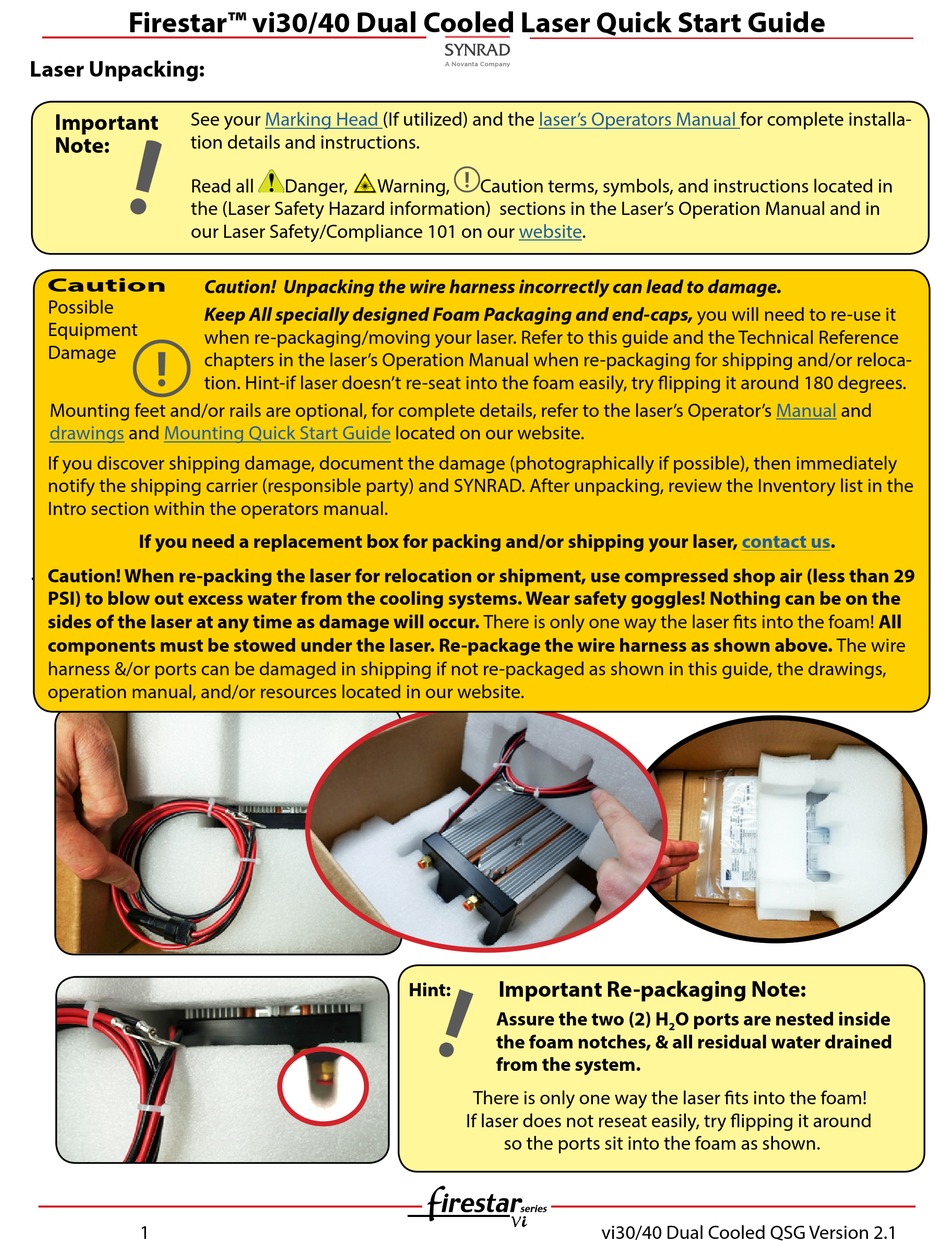

Firestar™ vi30/40 Dual Cooled Laser Quick Start Guide
Laser Unpacking:
Important See your
Note: tion details and instructions.
Read all
the (Laser Safety Hazard information) sections in the Laser's Operation Manual and in
our Laser Safety/Compliance 101 on our website.
Caution
Caution! Unpacking the wire harness incorrectly can lead to damage.
Possible
Keep All specially designed Foam Packaging and end-caps, you will need to re-use it
Equipment
when re-packaging/moving your laser. Refer to this guide and the Technical Reference
Damage
chapters in the laser's Operation Manual when re-packaging for shipping and/or reloca-
tion. Hint-if laser doesn't re-seat into the foam easily, try flipping it around 180 degrees.
Mounting feet and/or rails are optional, for complete details, refer to the laser's Operator's
drawings and Mounting Quick Start Guide
If you discover shipping damage, document the damage (photographically if possible), then immediately
notify the shipping carrier (responsible party) and SYNRAD. After unpacking, review the Inventory list in the
Intro section within the operators manual.
If you need a replacement box for packing and/or shipping your laser,
Caution! When re-packing the laser for relocation or shipment, use compressed shop air (less than 29
1. Unseat the wiring by sliding the harness out of
PSI) to blow out excess water from the cooling systems. Wear safety goggles! Nothing can be on the
the notch, then down and out of the foam as
sides of the laser at any time as damage will occur. There is only one way the laser fits into the foam! All
shown below.
components must be stowed under the laser. Re-package the wire harness as shown above. The wire
harness &/or ports can be damaged in shipping if not re-packaged as shown in this guide, the drawings,
Carefully push the wire harness through the notch in the top foam piece, and save with packaging.
operation manual, and/or resources located in our website.
1
Marking Head (If utilized) and the
Danger, Warning,
located on our website.
Hint:
laser's Operators Manual
Caution terms, symbols, and instructions located in
2. Remove the laser from the box and locate the
mounting hardware kit at the bottom of the
box under the laser.
Important Re-packaging Note:
Assure the two (2) H
the foam notches, & all residual water drained
from the system.
There is only one way the laser fits into the foam!
If laser does not reseat easily, try flipping it around
so the ports sit into the foam as shown.
vi30/40 Dual Cooled QSG Version 2.1
for complete installa-
Manual and
contact us.
O ports are nested inside
2
