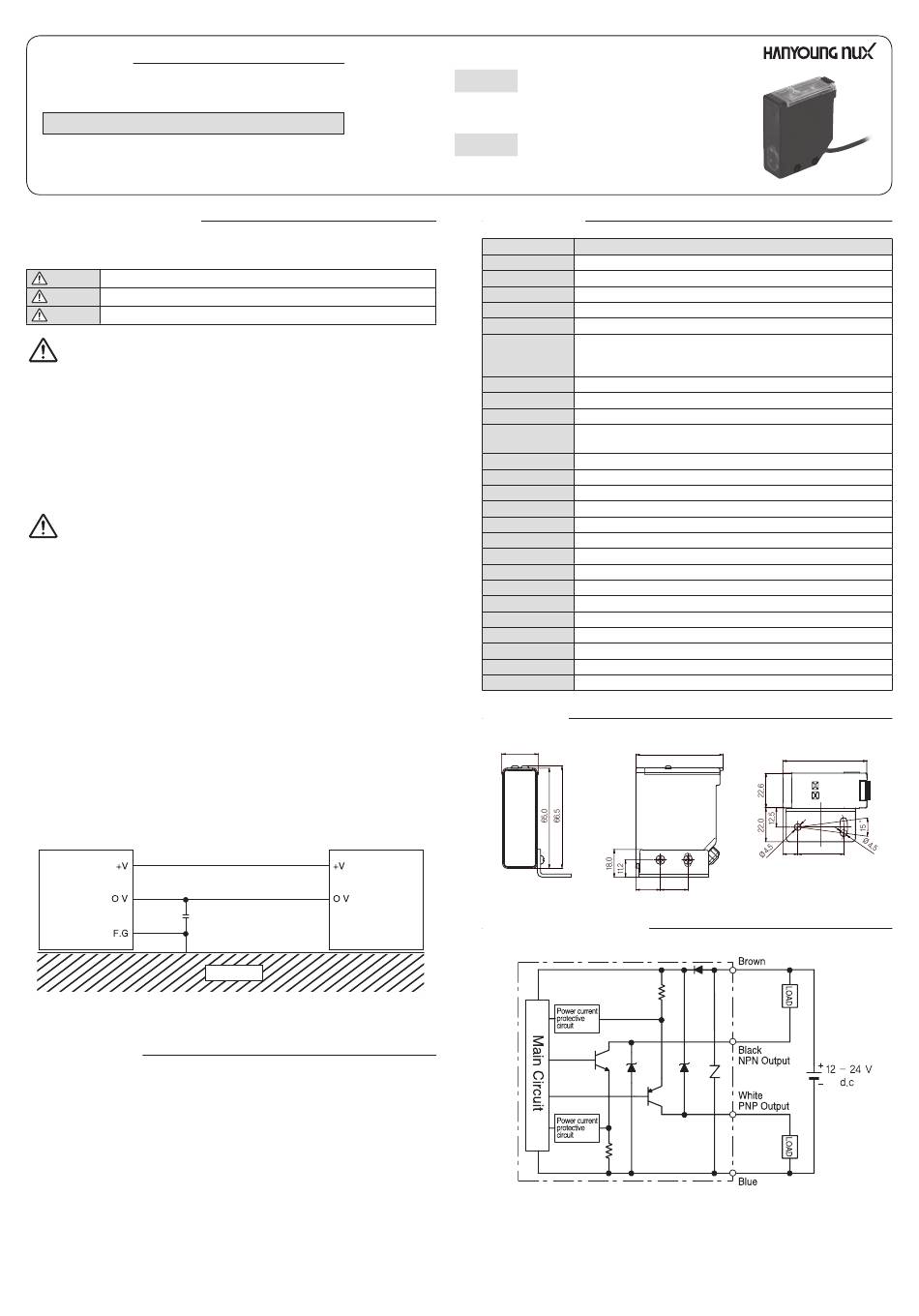

Hanyoung PL-D2B Instruction Manual

Photo sensor
PL-D2B
INSTRUCTION MANUAL
Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time
Safety information
Before using the product, please read the safety information thoroughly and use it properly.Alerts
declared in the manual are classified to Danger, Warning and Caution by their criticality
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
DANGER
WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
Warning
•If you do not follow instruction in this manual, injury or damage of property may occur.
•Please do not use outdoor
(It may cause of shorten the life of the product or electric shock).
•Do not use flammable, explosive gas environments.
Please do not use this product at any place where have over specification of
vibration and shock.
•Please use a dry cloth to wipe off dusts and do not use thinner or solvent.
•Power switch and fuse are not attached to this product. Please install them separately
on the outside.
Caution
•When cleaning the lens and the case, please use a dry cloth and gently wipe the surface.
Must not use solvents such as thinner or alcohol.
•The sensor wire should be separate from high voltage line or power line. Having the same
pipe for wiring can be cause of malfunction.
•This product has (IP 65) water proof structure but do now use permanent underwater place.
•When extending the cable, please use thick wire (at least thickness ㎟) and at this moment,
please watch out for the voltage-drop.
•When using the sensor under the light such as fluorescent lighting or mercury lamp with
high frequency, please block it with a light rap and avoid the lens from facing the light directly.
•When 2 units of through beam type of photo sensor are used, it can be cause
of malfunction due to interference. Please make enough space and please install the
receiver and emitter positions are crossed.
•In case of use Inductive load (relay, coil), the instantaneous load increases 2 times and it
may break TR. So, please set maximum load at half.
•Output has over current protection circuit so it blocks output when output is higher than
rated load current. So please set 70% from the maximum load.
•A lot of dusts pollute lens and it may cause of malfunction so please avoid using this
product dust area.
•Information in the manual may changed without prior notification.
•When using the switching power supply as the power source, earth the frame ground (F.G)
terminal and be sure to connect the noise eliminating condenser between 0 V and F.G.
Power
Supply
(SMPS)
※ Not following safety issues which stated above may cause product to break down so users
must follow them.
Characteristic
•Distance Setting type and BGS (Background suppression) function.
•Stable detection is possible without influence color & quality
of detection object.
•Long detection distance (2 m) and can be applied in various fields.
•Built in the reverse connection of power protecting circuit and built
in the output break protecting circuit
•IP65 Protective structure(IEC)
Sensor
C(0.01㎌-0.1㎌/500 V)
- Noise eliminating
condenser-
Frame
HANYOUNGNUX CO.,LTD
1381-3, Juan-Dong, Nam-Gu Incheon, Korea.
HEAD OFFICE
TEL:(82-32)876-4697
FAX:(82-32)876-4696
http://www.hynux.net
PT. HANYOUNG ELECTRONIC INDONESIA
INDONESIA
JL.CEMPAKA BLOK F 16 NO.02 DELTA SILICON II
FACTORY
INDUSTRIAL PARK
LIPPO CIKARANG CICAU, CIKARANG PUSAT BEKASI
17550 INDONESIA
TEL : 62-21-8911-8120~4 FAX : 62-21-8911-8126

Specification

Model
Sensing method
Sensing distance
Sensing object
Power supply voltage
Current consumption
Control output
NPN residual voltage : 1 V d.c max., PNP residual voltage : 2 V d.c max
Operation mode Light ON / Dark ON ※ Selectable by the mode V/R
Response time
Hysteresis
Light source
(Wave length)
Receiving part
Display Control out display : Red LED, Stability display: Green LED
Distance setting Near/Far : Optical distance adjusting volume 5 cycles.
Protective circuit Power reverse connection protecting circuit and output break protecting circuit
Ambient illumination Sunlight : 11,000 lx max., Incandescent lamp : 3,000 lx max.
Ambient temperature Operation : -20 ~ 60 ℃, Storage : -25 ~ 70 ℃ (Without freezing)
Ambient humidity
Protective structure
Insulation resistance
Dielectric strength
Vibration resistance 10 - 55 Hz, Double amplitude : 1.5 mm for 2 hours each in X. Y and Z directions.
Shock resistance
Connection method Cable output type, Number of wires : 4P, Thickness :Ø 4 mm, Length 2 m
Material
Accessory
BR AKET-A ASS' Y

Dimension

23.7
Connection diagram
BR AKET-B ASS'Y
23.7
22.5 12.0
15.9
3
MK1801KE130109
PL - D2B
Distance-settable
0.2 ~ 2 m
200 X 200 ㎜ White paper with no gloss
12 - 24 V d.c ±10 %
30 ㎃ max.
NPN / PNP open collector asynchronously,
Load current : 150 ㎃ d.c max. (Resistive load)
2 ㎳ max.
Less than 10 % of the sensing distance
Infrared lightening LED (880 nm)
2 photo diodes
35 ~ 85 % RH (Without condensation)
IP 65
20 ㏁ min.(500 V d.c Mega)
1000 V a.c (50/60 Hz for 1 min)
500 ㎨ 3 times each in X. Y and Z directions.
Case : PC, Lens : PC
Bracket, Adjustable driver, bolt, Nut.
56.7
9.7
15.9 18.0
56.7
18.0
60.7
[Unit : mm]
54.5
30.0
54.5
