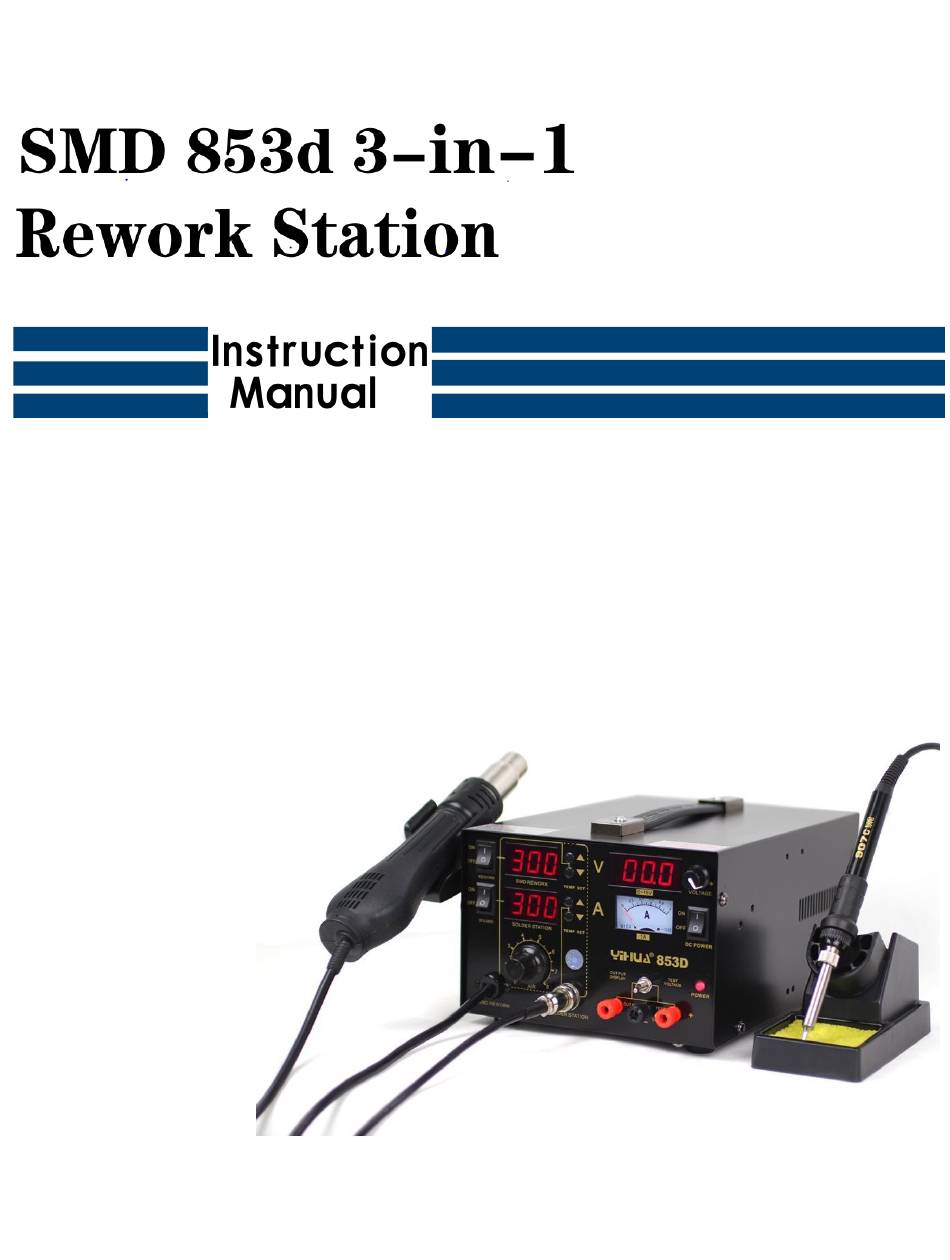

Summary of Contents for SMD 853d
-
Page 2: Table Of Contents
Table of Contents Features…………………………………………………….……..…. p. 3 Specifications…………………………………………………………p. 4 General Use……………………………………………………...……p. 5 Operating Instructions………………………………………….……p. 5 Part Replacement Instructions………………….……………...……p. 6... -
Page 3: Features
The hot air rework station has two options for the type of fan used: a brushless fan gentle wind and a dia- phragm pump spiral wind. The soldering iron has an anti-static design and RF protection to prevent electrostatic damage to the SMD components. -
Page 4: Specifications
Specifications Model 853D/909D Series 853DA/909DA Series Power Consumption ≤ 800 W ≤ 800 W Measurement 25X185X175MM 25X185X175MM Weight 3.95 kg 4.18 kg Working Temperature 0 - 50 °C 0 - 50 °C Storage Temperature -20 - 80 °C -20 - 80 °C... -
Page 5: General Use
The station is suitable for various kinds of soldering and disordering various kinds of electronic components such as SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. The hot air rework station can be used for shrinking, paint drying, adhesive removal, thawing, warming, and plastic welding. -
Page 6: Part Replacement Instructions
DC Power Supply Operation 1. Press the on/off switch of the DC power supply. 2. Turn the knob until the digital LED display reads the desired voltage value. If the load current exceeds the rated current, the station will automatically disable the DC power supply. Parts Replacement Instructions Replacement of the Hot Air Rework Heating Element ... - Page 7 Handle cover Heating element Mica paper Component handle...
