Quick Installation Guide
Automatic Backup Configurator
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
ABC-01-P-M12
Edition 1.0, May 2018
Technical Support Contact Information
www.moxa.com/support
2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000014010
*1802000014010*
Advertisement
Table of Contents
Summary of Contents for Moxa Technologies ABC-01-P-M12

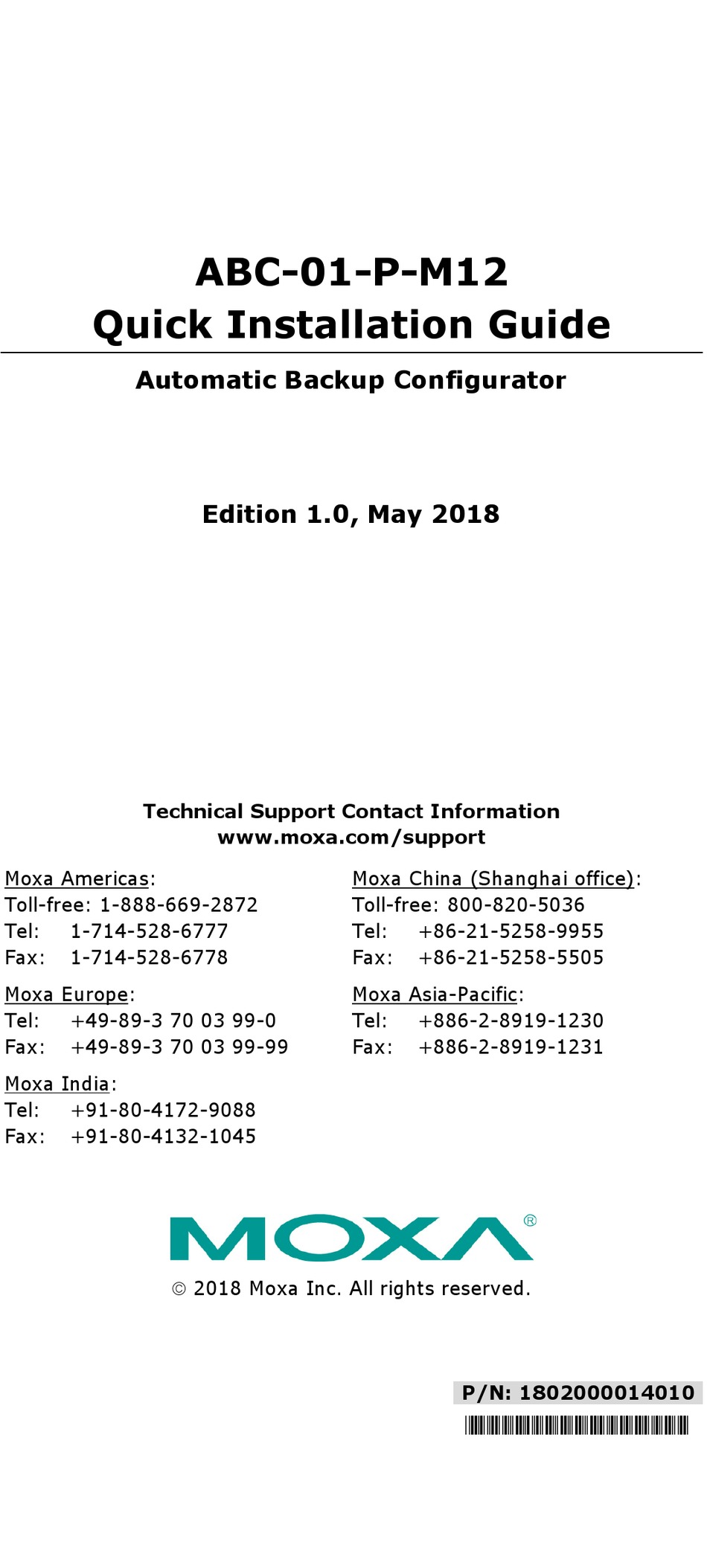

- Page 1 ABC-01-P-M12 Quick Installation Guide Automatic Backup Configurator Edition 1.0, May 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
- Page 2 Overview The ABC-01-P-M12 is designed for system backup and restoration to enhance maintenance efficiency and reduce system downtime in railway applications, including rolling stock and wayside installations. The ABC-01-P-M12 Automatic Backup Configurator tool can be used to save and load the configuration of Moxa’s ToughNet (TN) managed Ethernet switches and wireless APs/bridges/clients through the RS-232 console port.
- Page 3 Product Installation The ABC-01-P-M12 is designed solely for use with an RS-232 serial port. To use the ABC-01-P-M12, simply plug it into the M12 console port of your Moxa TN managed switch. Refer to the Product Operation section for instructions on how to save and load the configuration.
-
Page 4: Specifications
Specifications Connectors RS-232 M12 Port Storage Capacity 64 KB Power Requirement 3 to 5 VDC, power input via RS-232 RTS Configuration via Moxa TN managed switch's web console Casing Aluminum, IP67 Weight 35 g (0.08 lb) Dimension 55 mm x Ø20 mm (2.17 in x Ø0.79 in) Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F)
