Summary of Contents for Macron Dynamics MSA series

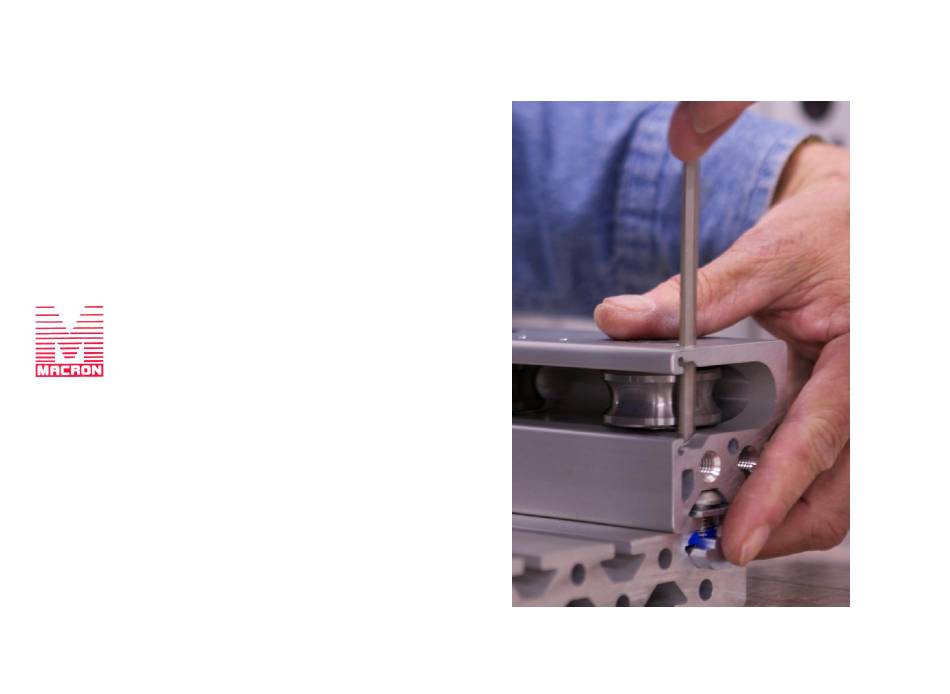

  • Page 1 Macron Dynamics, Inc. BELT DRIVEN ACTUATOR BASICS USER GUIDE MAINTENANCE MANUAL...
  • Page 2 Thank you for purchasing another quality product from Macron Dynamics, Inc. Every effort has been taken to assure this product was manufactured to the highest industry standards of quality, precision and performance. Macron Dynamics products are subject to a 1 year (from date of shipment) limited warranty for defects in material and workmanship.
  • Page 3 Why Belt driven Actuators • Length • Speed • Acceleration • Reliability • Repeatability • Quiet • Capacity • Timing...
  • Page 4 Elements of a Belt driven Actuator •The Drive system •A belt / a pulley / a tensioning system •Provides repeatability •Structural beam member •Aluminum extrusion provides length flexibility and strength •Guidance system •Provides accuracy of position and location Cart •The •Coupled with the guidance system provides load carrying support •Styles...

  • Page 5: Product Identification Label

    Product Identification label Each product has an identification label for recording the part number, serial number and date of manufacture. P/N [part numbers] are a string of letters and • numbers that identify your product. The first 3 letters indicate the family of product. The next 3 letters or numbers indicate the type of actuator or system.
  • Page 6 Product Cautionary notes! • Macron products may ship as factory assembled modules that • Belt tension is the most important consideration for proper require further field assembly. Please follow all assembly actuator performance and long life. Macron actuator belt tension instructions provided using hardware and fasteners specified by is preset at the factory prior to shipment [nominal room Macron.

  • Page 7: Preventive Maintenance

    Preventive Maintenance Macron actuator and gantry systems require a few simple maintenance procedures to prolong the system life and operation. • Belt tension monitoring and tension setting Reference process- MQD-TD-01-01 Lubrication of linear rails & bearings • Reference process- MQD-TD-07-00 & MQD-TD-06-01 Cart adjustment &...

  • Page 8: Belt Tension

    Belt tension Belt tension is the most critical element of the performance of Macron belt driven Actuators and Linear Robot gantry systems. Proper belt tension ensures that the tooth of the belt and tooth of the pulley mesh smoothly for precise repeatability and near zero backlash performance.
  • Page 9 Lubrication The pulley assemblies, both drive and idler do not require lubrication. The radial bearings used in these assemblies are permanently lubricated and sealed. Dis- assembly of these pulley assemblies will result in permanent damage to the component parts and is not recommended. The guidance systems do require lubrication to prevent wear and prolong the life of the components.
  • Page 10 Cart adjustment & preloading The Cart systems on Macron Actuators and Linear Robot gantry systems are factory set for smooth motion and to ensure uniform repeatability. There are multiple cart styles across the Macron product line. Each style will require a different method of adjustment.

  • Page 11: Replacement Parts Kits

    Replacement Parts kits Replacement part kits are available for field servicing all Macron Actuators and Linear Robot gantry systems. The Macron website Resources tab www.macrondynamics.com Kits: • Drive & Idler pulley assemblies Pre-assembled to ensure perfect fit. Provide the Actuator or Gantry system part number •...

  • Page 12: Product Documentation

    Product Documentation • Datasheet packets are available for each product on the Macron website: www.macrondynamics.com/resources – – Datasheets detail the replacement parts associated to specific products and include image of the parts kit with material listing. – Installation instructions • Product Technical documents- are included in this document –...
  • Page 13 Macron Belt Tension tool & tensioning process TENSION TOOL PART NO. DESCRIPTION #399 - 25 (For 12 & 25mm) Used in conjunction with Pound Inch Torque Wrench #399 - 50 (For 50mm) P/N 399 TORQUE WRENCH sold separately TORQUE WRENCH PART NO.
  • Page 14 Product lubrication guide: Round rail / Track roller guidance systems Macron MSA-14S, MSA-14H, MSA-628 & MSA-M6S actuators have lubricating end caps. These lubricating end caps are located on the ends of the movable carts. Located inside these end caps are felt wipers.
  • Page 15 MSA-628 & MSA-M6S Lubricating end caps Oil application point MSA-14H Oil application point Lubricating felt wipe © Macron Dynamics, Inc. 2016 MQD-TD-06-01...
  • Page 16 Macron MSA-R15, MSA-R6S, & MSA-R20 actuators have linear bearing blocks and profile rail guidance systems. The linear bearing blocks used on Macron Dynamics products have “lip seals” and are pre- lubricated prior to shipment. Depending on the application environment the linear bearings will require lubrication on a preventive maintenance cycle.
  • Page 17 Polypro hose with coupler- 1195K52 Caution: Macron Dynamics, Inc. cannot know all of the application environments or uses of our Linear Motion products by our Customers and end users. It is the responsibility of the end user to determine the proper PM [preventive maintenance] required.
  • Page 18 Caution: do not over pre-load the cart. This process in intended to ensure roller contact with the guide rails to allow for component and assembly tolerance variation. Overloading causes excess wear on bearings and drive system. MACRON DYNAMICS, INC. P: 215-443-8888 100 Phyllis Drive...
  • Page 19 T-handle Wrench and Macron 14 Cart not included. Spanner Wrench: P/N- 055 MACRON DYNAMICS, INC. P: 215-443-8888 100 Phyllis Drive F: 215-443-0981 Croydon, PA 19021 macron@macrondynamics.com w w w . m a c r o n d y n a m i c s . c o m...
  • Page 20 *Repeat Second Round Torque noted in Table 3. Finally, insert the stage until torque value listed provided plugs into the access is confirmed at each bolt. holes. Macron Dynamics, Inc. - 1-800-622-7661 / www.macrondynamics.com MQD-TD-10-00...
