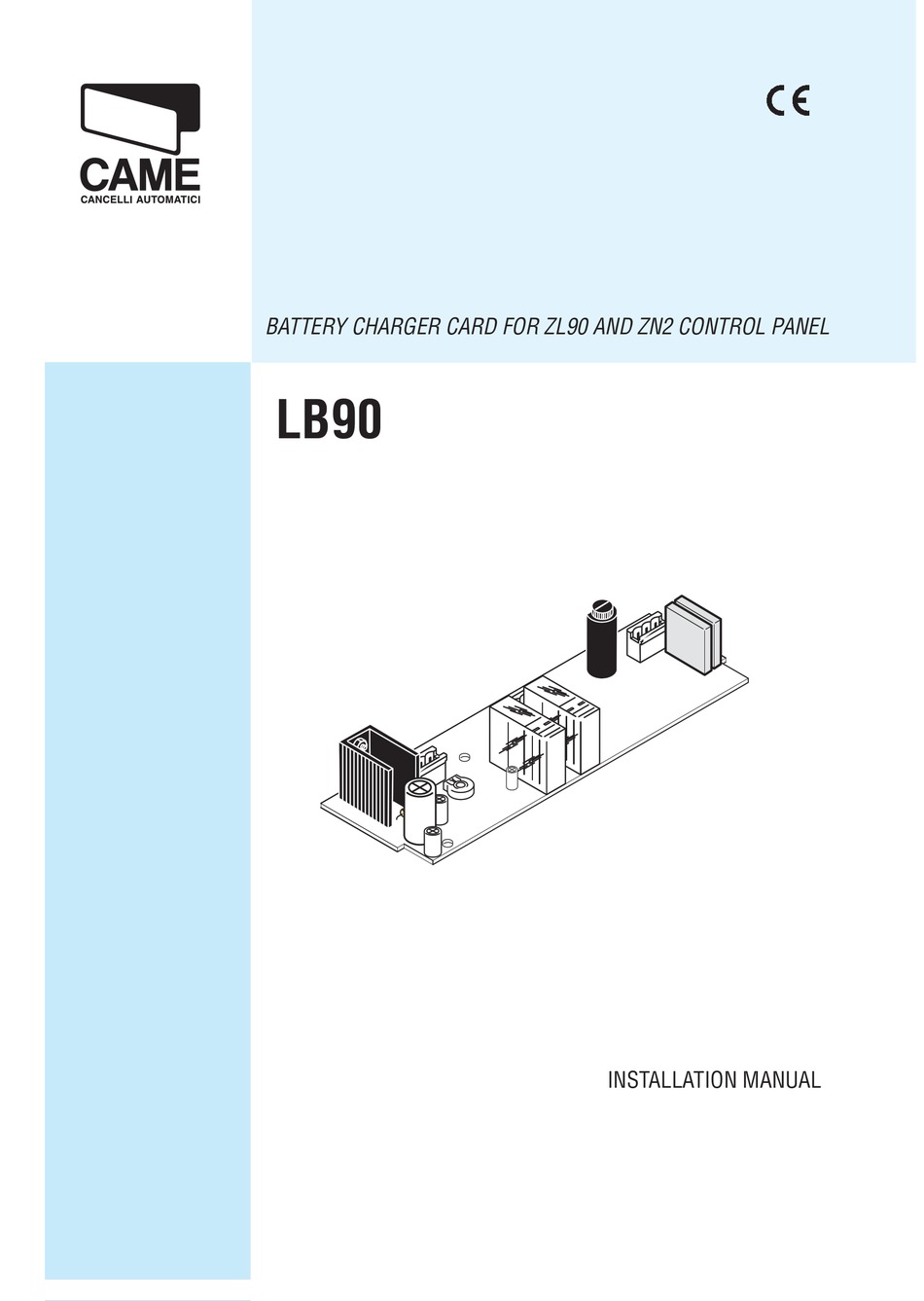

- Page 1 AUTOMAZIONE PER CHIUSURA INDUSTRIALE BATTERY CHARGER CARD FOR ZL90 AND ZN2 CONTROL PANEL LB90 INSTALLATION MANUAL...
-
Page 2: Legend Of Symbols
This symbol tells you that the sections concern safety issues. 2 Intended use The LB90 battery charger card is designed as an emergency device for the ZL90 and ZN2 electronic cards. Any use, other than that above described and, any installations other than those de- scribed in this manual, are forbidden. -
Page 3: Installation
4) Batteries’ connecting cable 5) Battery rack 6) Battery rack securing screws 7) Nuts and bolts to secured card and distancers 4.3 Main components of the LB90 card 1) Card fuse 630 mA 2) Battery fuse 7,5 A 3) Yellow led: batteries working... - Page 4 5.3 Mounting and electrical connection to the ZL90 panel - Remove the cover to the container. Bolts - Remove the ZL90 card by removing the four screws. Bolts...
- Page 5 - Affix the LB90 card atop the electronic card making sure the holes match using the distan- cers, nuts and bolts supplied. LB90 UNI7687 M3x6 bolts Distancers ZL90 M3 nuts - Secure the ZL90 card in the container.
- Page 6 - Remove the terminal board from the ZL90 card’s transformer and insert it into the LB90 card’s free slot (VELL1-RALL1-COM1 from transformer). - Connect the card by inserting the LB90’s terminal cable into the ZL90’s terminal free slot.
- Page 7 ø2,9x9,5 bolts - Connect the LB90 card to the batteries using the supplied cable with connectors. Insert the plug with the black wire to the (neg (-) pole) into one of the two batteries or the red one into the (pos (+) pole) of the other one.
- Page 8 - Remove the gearmotor cover. - Connect the LB90 card to the batteries (not supplied) using the supplied cable with con- nectors. Insert the plug with the black wire to the (neg (-) pole) into one of the two batteries or the red one into the (pos (+) pole) of the other one.
- Page 9 - To simplify the procedure insert the batteries in the battery-support and then insert the LB90 card.
- Page 10 - Remove the (26V-17V-=V) transformer terminal from the ZN2 electronic card and insert it into the free (VELL1-RALL1-COM1 from transformer) slot of the LB90 card. - Connect the card by inserting the LB90 card’s terminal- fitted cable into the free slot on the ZN2 card’s terminal.
-
Page 11: Manufacturer's Declaration Of Conformity
EN 12445 EN 60335-1 EN 60204-1 tel (+39) 0422 4940 - fax (+39) 0422 4941 internet: www.came.it - e-mail: info@came.it IMPORTANT WARNING! Declares under its own responsibility that the equipments for Do not use the equipment specifi ed here above,... - Page 12 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel 0044 115 9210430 Fax 0044 115 9210431...
