Summary of Contents for Anson 7100 series

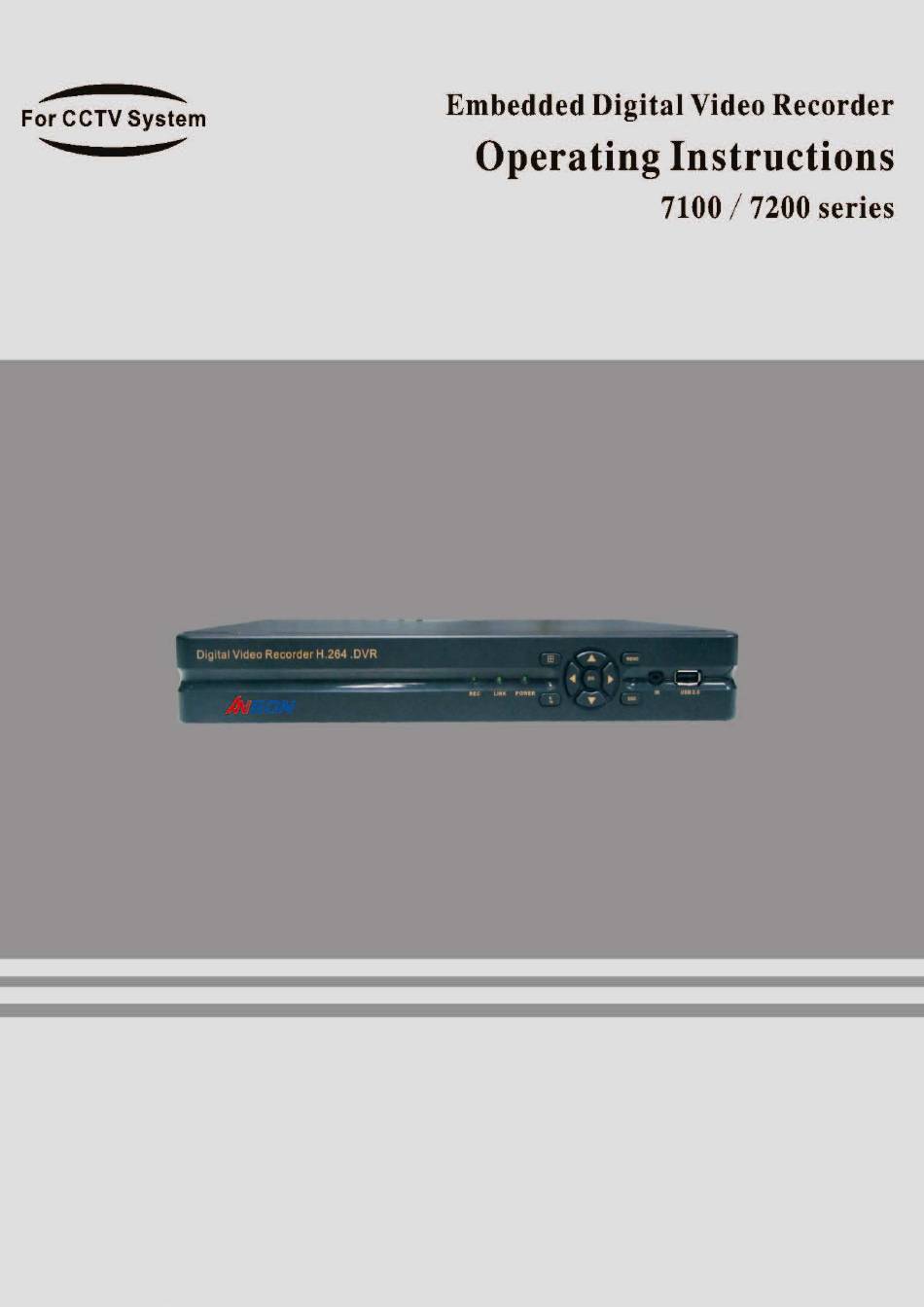

  • Page 1 ANSON...
  • Page 2 ANSON PREFACE Thank you for choosing our product, for a better understanding of the product, we recommend you read this user manual before first use. ◆Notice to users This user manual is an operation guide only. Please check our company website for the latest version or any updates which may be available.

  • Page 3: Table Of Contents

    ANSON Contents 1 USER LOGIN............................4 1.1 SYSTEM STARTUP........................4 2 SETUP WIZARD..........................4 2.1 WIZARD INTERFACE........................ 4 2.2 ADMINISTRATOR LOGIN INTERFACE.................. 4 2.3 BASIC SETUP..........................5 2.4 NETWORK SETUP........................6 2.5 NETWORK TESTING......................... 6 2.6 DDNS & PORT SETUP......................7 2.7 RECORD MODE & RECORD SETUP..................8 2.8 HDD SETUP..........................9...

  • Page 4: User Login

    ANSON 1 System Startup 1.1 System Startup Power ON/OFF: Connect the power plug to the power port on the back of the DVR.The system will automatically run a status check, and will start after few seconds. 2 Setup Wizard This setup wizard contains all the basic settings, like time setup, network setup, HDD format reminder, etc.

  • Page 5: Basic Setup

    ANSON "Next" for more settings; if you click "Cancel”, you will enter directly into the "Main Menu"; if you click "Prev.", the system goes to the previous page. Note: By default, the administrator user name is: admin. There is no password, but for better security, we strongly recommend that you setup a password here.

  • Page 6: Network Setup

    ANSON keyboard will appear, and then set to local time. Date Format: Three format types: MM/DD/YYYY, DD/MM/YYYY, and YYYY/MM/DD. Time Format: 24-hour/ 12-hour. Time Zone: Click the down arrow, time zone options will be displayed, please select your time zone.

  • Page 7: Ddns & Port Setup

    ANSON 2.6 DDNS & Port Setup DDNS: Enable/Disable, please enable the DDNS to use a domain name server. Server: Choose your domain name server: 3322, dyndns, no-ip, changeip or dnsexit. Host Name: Enter the host name you registered on the domain name server.
  • Page 8 ANSON Port Setup Media Port: one private communication port that between DVR and PC, default: 9000. If this port was occupied by other server port, please change to an idle port. Web Port: Http port, default: 80, if change the web port, like to: 8088, when need to access through browser, need to add the web port after the IP address.

  • Page 9: Record Mode & Record Setup

    ANSON 2.7 Record Mode & Record Setup Setup recording and audio for each channel, place check mark '√' to enable recording and audio. There are two record modes: Always/Schedule. For ease, setup one channel and then copy to the others, as shown below: 2.8 HDD Setup...
  • Page 10 ANSON Note: The newly installed HDD must be formatted through our DVR before usage. Overwrite: There are three options to choose from; “by days”, “by capacity” and “never” .Please select desired method. After HDD setup is completed, the setup wizard finished, you will see the...

  • Page 11: System Login

    ANSON 3 System Login Open the main menu: Click “START” in the task bar, by default the taskbar is at the bottom of the screen, click and hold the taskbar, you can then drag it to any position, if the taskbar is not displayed, right click the mouse button: Click “START”...

  • Page 12: Record Resolution Setup

    ANSON Enable: place a check mark '√' to enable recording, if unchecked '√' this means it is not recording. Audio: place a check mark '√' means audio recording is enabled, if unchecked '√' audio is not recording. Record mode: Always/Schedule.

  • Page 13: Schedule

    ANSON 7 Schedule CH: Select the channel you want to setup Schedule: From Monday to Sunday, 0:00 to 24:00, setup record mode for time periods (time period cannot cross a day), double click on the time to enter the time period setup.

  • Page 14: Playback

    ANSON 8 Playback Click “SEARCH” to go to playback interface: After entering playback interface, DVR will automatically search current day’s (today) recording files and show in the right window. If there is no recording, the right window would be empty.

  • Page 15: Network Setup

    ANSON Control button: 1) Click “PLAY/STOP”, “STEP”, “FAST FORWARD”, “FAST BACKWARD” and “SLOW” to do corresponding operation. 2) Drag the slider to adjust volume, if you don’t need audio, click the speaker to mute. 3) Click “X” to exit playback interface.
  • Page 16 ANSON ADSL: Enable the ADSL Fill the user name and password of your PPPOE which is provided by your Internet Service Provider (ISP). The system will restart after clicking OK. If the user name and password are correct, the system will connect to the network via the PPPOE.

  • Page 17: Ddns Setup

    ANSON address when accessing the DVR via the web. E.g.: http://192.168.x.x:8088 Note: Port Range: 1-65535, some ISP’s may block port “80”, so we recommend to change to another, example Port:8086. 4) Sub Stream: Setup the stream and video quality for the network transfer.

  • Page 18: Ptz Setup

    ANSON server. Server: Choose your domain name server: 3322, dyndns, no-ip, changip or dnsexit. Host name: The host name you registered on the domain name server. User name: The user name you registered on the domain name server. Password: The password you registered on the domain name server.

This manual is also suitable for:

7200 series
