Summary of Contents for Safety Vision SV-LCD50

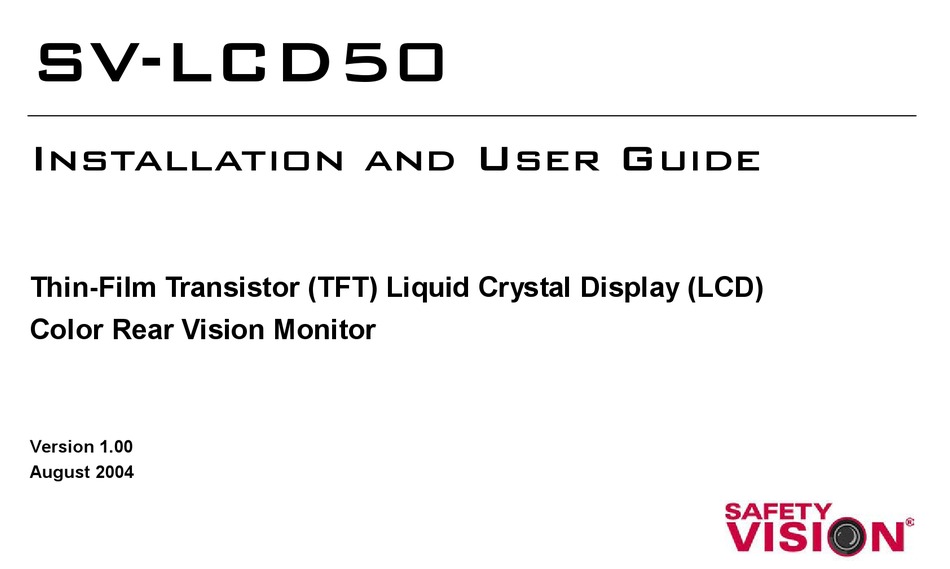

- Page 1 SV-LCD50 Installation and User Guide Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) Color Rear Vision Monitor Version 1.00 August 2004...
- Page 2 SV-LCD50 Installation and User Guide—TFT LCD Color Rear Vision Monitor August 2004 Version 1.00 Document No. SVLCD50UG-001 Copyright © 2004 Safety Vision, L.P. Safety Vision and the Safety Vision logo are trademarks of Safety Vision, L.P. SVLCD50UG-001...
-
Page 3: Table Of Contents
S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E O N T E N T S Contents Components and Features.... -
Page 4: Components And Features
O M P O N E N T S A N D E A T U R E S Components and Features This section describes the components and features of the SV-LCD50 TFT LCD Color Rear Vision Monitor and the supplied accessories. 1.1. Overview The SV-LCD50 monitor is a TFT (thin-film transistor) LCD (liquid crystal display) monitor designed for the heavy-duty commercial trucking industry. -
Page 5: Components
E A T U R E S FIGURE 1. SV-LCD50 Monitor 1.2. Components This section describes the physical components of the SV-LCD50 monitor. It also describes the monitor’s operational features and capabilities. 1.2.1. Front Panel Components Figure 2 shows the front panel of the SV-LCD50 monitor. Component descriptions follow. - Page 6 E A T U R E S FIGURE 2. SV-LCD50 Monitor Front Panel SV-LCD50 monitor front panel components are as follows: POWER BUTTON AND STANDBY LAMP—A red lamp indicates that the monitor is on and in Standby mode. A green lamp indicates that the monitor is on and in Run mode. (Monitor power remains on until the vehicle ignition key is on the Off position.)
-
Page 7: Rear Panel Components
1.2.2. Rear Panel Components Figure 3 shows the rear panel of the SV-LCD50 monitor. Component descriptions follow. FIGURE 3. SV-LCD50 Monitor Rear Panel SV-LCD50 monitor rear panel components are as follows: BRACKET SLOT—This slot accepts the adjustable mounting bracket. - Page 8 U I D E O M P O N E N T S A N D E A T U R E S FIGURE 4. SV-LCD50 Monitor Rear Panel Cabling Connections NOTE: Connect the camera(s) to the monitor before supplying power. SVLCD50UG-001...
-
Page 9: Menu Navigation
S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E O M P O N E N T S A N D E A T U R E S 1.2.3. - Page 10 S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E O M P O N E N T S A N D E A T U R E S ...
-
Page 11: Supplied Accessories
The maximum time is 20 seconds. Use the VOL (VOLUME) buttons to change the time settings. 1.3. Supplied Accessories The following accessories are supplied with the SV-LCD50 monitor: Adjustable mounting bracket Screw kit ... -
Page 12: Installation
This section describes the installation of the SV-LCD50 monitor. 2.1. Installation Location The SV-LCD50 monitor can be mounted on the ceiling (as shown in Figure 5) or on the dash or console (as shown in Figure 6). FIGURE 5. Ceiling-Mount Installation... -
Page 13: Installation Procedure
S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E N S T A L L A T I O N FIGURE 6. - Page 14 S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E N S T A L L A T I O N FIGURE 7.
- Page 15 S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E N S T A L L A T I O N FIGURE 9.
-
Page 16: Cleaning
S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E N S T A L L A T I O N 2.3. -
Page 17: Appendix A
Abbreviation, Acronym, or Symbol Definition acrylonitrile-butadiene-styrene BRIGHT brightness Celsius CA. SEL camera select Camera 1 Camera 2 Fahrenheit kilogram liquid crystal display millimeter NTSC National Television Standards Committee red, green, blue return material authorization Safety Vision L.P. thin-film transistor SVLCD50UG-001... - Page 18 S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E P P E N D I X Abbreviation, Definition Acronym, or Symbol...
-
Page 19: Appendix B
A N D S E R U I D E P P E N D I X Appendix B Specifications Specifications for the SV-LCD50 monitor are as follows: Item Specification Power Input 10 VDC to 32 VDC Maximum Power 10 watts... - Page 20 S V - L C D 5 0 M O N I T O R N S T A L L A T I O N A N D S E R U I D E P P E N D I X Item Specification Temperature...
-
Page 21: Appendix C
Appendix C Safety Vision Limited Warranty Safety Vision, L.P. (“SV”) makes the following limited warranty. This limited warranty extends to the original end-user purchase. Limited One-Year Warranty of Parts and Labor SV warrants this product against defects in materials or workmanship for a period of one year after the original date of purchase. - Page 22 Acts of God, or any other condition beyond the control of SV. To Obtain Warranty Service Contact the Safety Vision Service and Warranty Manager at (713) 896-6600 or (800) 880-8855 to report the defective product. IMPORTANT: PACKING AND SHIPPING INSTRUCTIONS When a product requires service, only the affected component must be returned.
-
Page 23: Appendix D
P P E N D I X Appendix D Troubleshooting This section provides troubleshooting guidelines for certain operational problems you might encounter using the SV-LCD50 monitor. Before requesting service, check the following. Ensure that the power supply and ground wires are connected properly.
