Summary of Contents for SWEGWAYFUN HUMMER

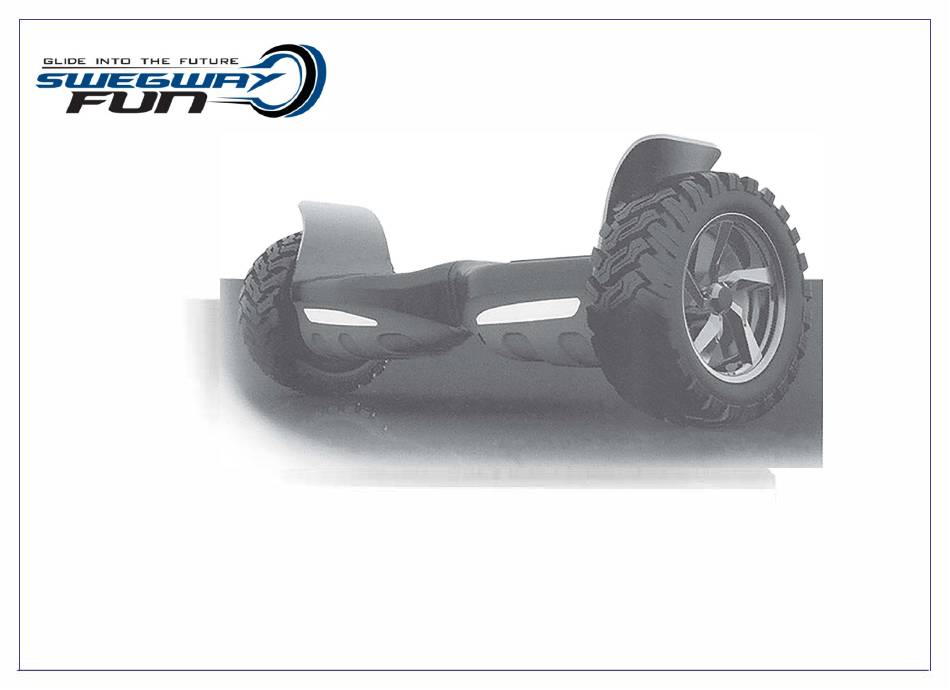

  • Page 1 HUMMER User Manual...
  • Page 2 Thank you for your purchase of the SWEGWAYFUN All Terrain Hoverboard. You're about to take the next step in the evolution of transportation. All Terrain Hoverboard takes the fun of a skateboard, the ease of an electric scooter, adds a touch of off-roading, and tops it off with a whole lot of Swag.

  • Page 3: Before You Begin

    • � Pai r i n g y our B l uet oo t h Dev1ce ---- 7 Before You Begin -------------- [ii .=] Ri d i n g Your Scooter ----- ---- - 8 - 11 M ai n C om r:; o n en t s -- - -- - -- - -- -- 2 [6\] Sa fet y Al er ts -- - -- - -- - -- - -- - -- -- 1 2 Chargi n g Your Batterie s -------- -...
  • Page 4 Before You Begin Before learning to ride your Scooter, you must read and follow all instructions and warnings in this User Manual. It is important that you follow all safety warnings and cautions that appear throughout the User M anual and that you use good judgment when you ride your Scooter.
  • Page 5 OFoot Mat e Indicator Li g hts 0 Headli g hts Cauti o n Light 0 Power Button 0 Charging Port 0...
  • Page 7 -Powering On the Scooter Power on your Scooter by pressing the Power button. The Power button is located on the back side of the Scooter . The indicator lights will illuminate to indicate the power is ON. -Resetting the Scooter 0 Put the Scooter on a level surface where the wheels do not make contact with the ground.

  • Page 8: Battery Indicator

    o Battery Status I n dicator Ught (Green) I f battery status indicator light is OFF, recharge batteries. e Balance I n dicator Ught (Green) The Scooter is in Balance Mode with rider on. e Warning I n dicator Ught (Red) I f red warning light i s flashing, there i s an issue with the Scooter (low battery, over speed, power issue, etc.) o Battery Indicator...

  • Page 9: Battery Level

    � Download on the App Store • GET IT ON � Google Play �� - Learner -Bluetooth setting How to leam in 5 minute) • • Speed Tripmeter Re-Calibrate Howtore-1:alibrate 0dometer Battery level e�(i) OffRoad • Challengewithfrlend� Driving Mode f)«-· -Track routes .._,.,.
  • Page 10 ® Resetting Bluetooth Memory ® To palr with a Bluetooth device, ® follow these steps: To reset Bluetooth Memory, resetting the Scooter Scooter is needed. Refer to Resetting the 8 Power on the scooter to automatically turn (page 4) on Bluetooth. The scooter will make a sound to indicate that Bluetooth is on and awaiting connection.
  • Page 11 Before riding, make sure your Scooter is fully assembled and charged. Inspect your Scooter before each use. Do not ride if any part is loose or damaged. The Scooter is highly maneuverable and allows you to easily navigate around obstacles. However, to prevent the loss of traction, you must always be careful when riding and learn to identify and avoid unsafe surfaces.
  • Page 12 Step 2: Getting on the Scooter 0 Place one foot on the foot mat e The Balance I n dicator light will turn ON, enabling the automatic balancing system. e Try to keep scooter steady and leveled. o Race your other foot on the other foot mat / ,,, ,,/ ,/ --...
  • Page 13 Step 3: Moving forward and backvvards 0 Keep scooter still by remaining level when standing on it. 0 SLIGHTLY lean your body forward or backvvard to enable the scooter to move forward or backvvards � respective� � NOTE: When the Scooter is unable to achieve a balanced posr t k:Jn, an alarm l'lill sounk:J and trigger the Warning I n dicator lght.
  • Page 14 Scooter Step 4: Steering the Press right foot forward Press left foot forward to turn left to turn right Scooter Step 5: Getting off the Make sure the scooter has • Do not tum while in high speeds to avoid completely stopped and stable /;\.
  • Page 15 SoJeLy Al e rts While operating, the Scooter can alert users if there are any irregularities in the system. If the Scooter detects a fault in any of its redundant systems or the batteries are depleted beyond their safe limit, it automatically slows down the motors, flashes Warning Indicator light, emits a warning tone, and disables self balancing mode Here are some reasons that will trigger the Warning Indicator light: -Irregular platform angle...
  • Page 16 VVhen riding the Scooter you risk serious injury from loss of control, collisions, and falls. It is your responsibility to learn how to safely ride the Scooter in order to reduce this risk. To ride safely you must follow all instructions in the user materials, including the User Manual.
  • Page 17 - Always ride under control at a speed that is safe for you and those around you. - Always be prepared to stop. - Respect pedestrians by always y1elding the right of way. - Avoid startling pedestrians When approaching from behind, announce yourself and slow down to walking speed when passing.
  • Page 18 Dri v i r fJ Safely - Use caution on slopes. Use caution when ascending, descending, or crossing slopes. When riding across any slope, lean uphill to maintain balance. - Always tum slowly and with caution. Fast turns can lead to loss of control and falls. - No passengers.
  • Page 19 rJri v i n g Safoly Do not ride backwards for long periods of time. Instead, turn and ride forward. Riding on the road. The Scooter is not intended or recommended for primary use on roads. If you must ride on the road, or must cross the road, be extremely careful. Ride as far away from traffic as possible.
  • Page 21 - Do not use the scooter if the Battery Pack casing is broken or if the Battery emits an unusual odor, smoke, excessive heat or leaks any substance. Avoid contact with any substance seeping from the Batteries. - Keep out of reach of children and pets Exposure to Battery voltage could result in death or serious injury - Unplug or disconnect the Scooter from AC power before removing or attaching Batteries or performing any service.
  • Page 22 - Do not attempt to wash the Scooter with a power washer or high pressure hose. Avoid getting water into the Charge Port. Always close the Charge Port Cover after charging is completed. Make sure that the Charge Port is dry before you plug in the Power Cord. Failure to follow these instructions could expose you to electric shock, injury, bums, or cause a fire.
  • Page 23 Warranty services are provided by SWEGWAYFUN TM . If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SWEGWAYFUN TM will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product.
  • Page 24 ,nco FUCURe CiUDe...
