MX31 Cab, MX31FU Radio Cab
INSTRUCTION MANUAL
This document will be
completed in the coming
weeks and months to include
display photos etc.
see www.zimo.at !

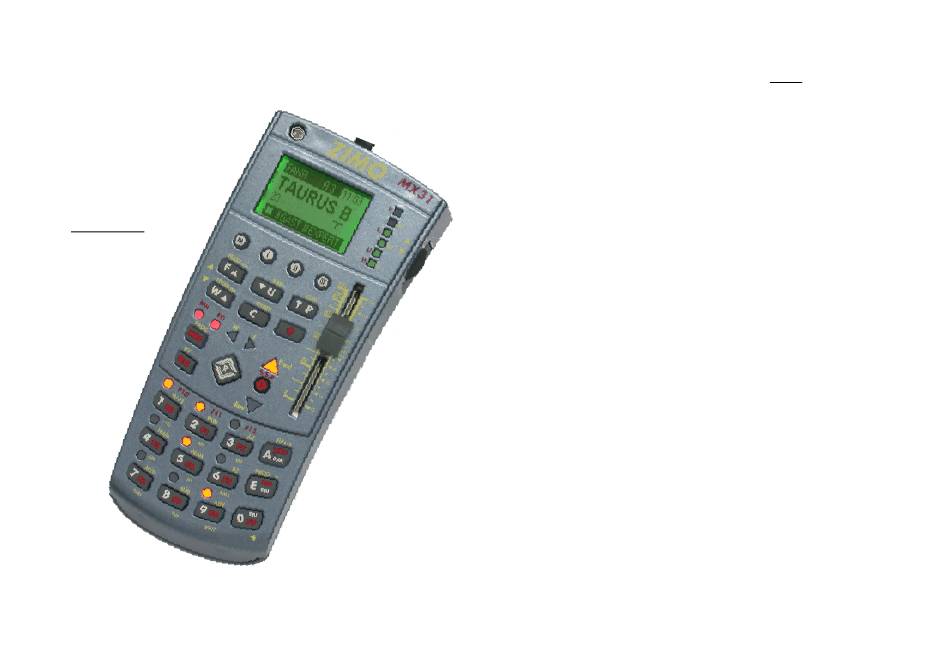

Tethered
MX31
and
Radio
MX31FU
Page 1
REWRITTEN MAY 2006 (SW-Version 1.10; some pictures missing) --- 2006 05 01
Operating mode GUEST, SW-Version 1.12 --- 2006 11 03
Chapter
0.
since MX21 ...................................................................................2
kept from the MX21 ... .........................................................................3
1. Introduction......................................................................................................................................................................4
2. Technical Information ......................................................................................................................................................4
3. Connecting cab's to command station .............................................................................................................................4
4. QUICK GUIDE.................................................................................................................................................................6
5. Power up the MX31/MX31FU for the first time ................................................................................................................8
OPERATOR, EXPERT ................................................................................................................8
OPERATOR, EXPERT ...............................................................................................................8
OPERATOR................................................................................................................10
OPERATOR....................................................................................................................12
EXPERT - Mode ....................................................................................................14
in
Guest
Mode ........................................................................................................15
12. Recall memory and list of names OPER., EXP. .........................................................................................................16
OPERATOR, EXPERT.......................................................................................................18
OPERATOR, EXPERT............................................................................................................20
OPERATOR, EXPERT ..................................................................................22
TURNOUT LADDERS and AOS's.............................................................................25
18. Glossary ......................................................................................................................................................................27
99. Preview of future software versions .............................................................................................................................28
Chapter 99: Preview to future software versions
IMPORTANT NOTES to SOFTWARE and SOFTWARE UPDATES:
Software that determines the characteristics and functions of this product is stored in a FLASH-
EPROM.
The current version may not yet be capable of all the functions mentioned in this manual. Installing
new software versions later can add new functions or correct recognized errors.
Current software is available at no charge from www.zimo.at (UPDATES). The software can be in-
stalled with the help of the program "ZST" (Zimo Service Tool) and a ZIMO command station MX1
"model 2000" or MX1EC. The ZST program is also available for download from the above web site at
no charge. A solution for updating systems with older command stations is in development.
Updates can also be performed by ZIMO at the expense of the customer (handling and shipping
fees). There is of course also no charge for the software itself. Updates performed by ZIMO are not
considered a warranty repair.
EDITION
2005 09 01
Corrections and additions --- 2006 06 01
2006 07 01
