Fresh-Aire MINI UV Installation Instructions

Germicidal UV Light Installation Instructions

Fresh-Aire Mini UV improves indoor air quality and
fights biological contamination inside the air handling
system. It extends the life of the air system and reduces
maintenance costs.
IMPORTANT!
• Only qualified technicians should install this product
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings
© 2012 Fresh-Aire UV

Installation Notes

Mini UV is typically used for mini split systems and other limited space applications.
Because space is tight the best place for mounting the UV lights is usually inside
the supply vent with the light shining onto the blower wheel (which is prone to the
worst mold growth).

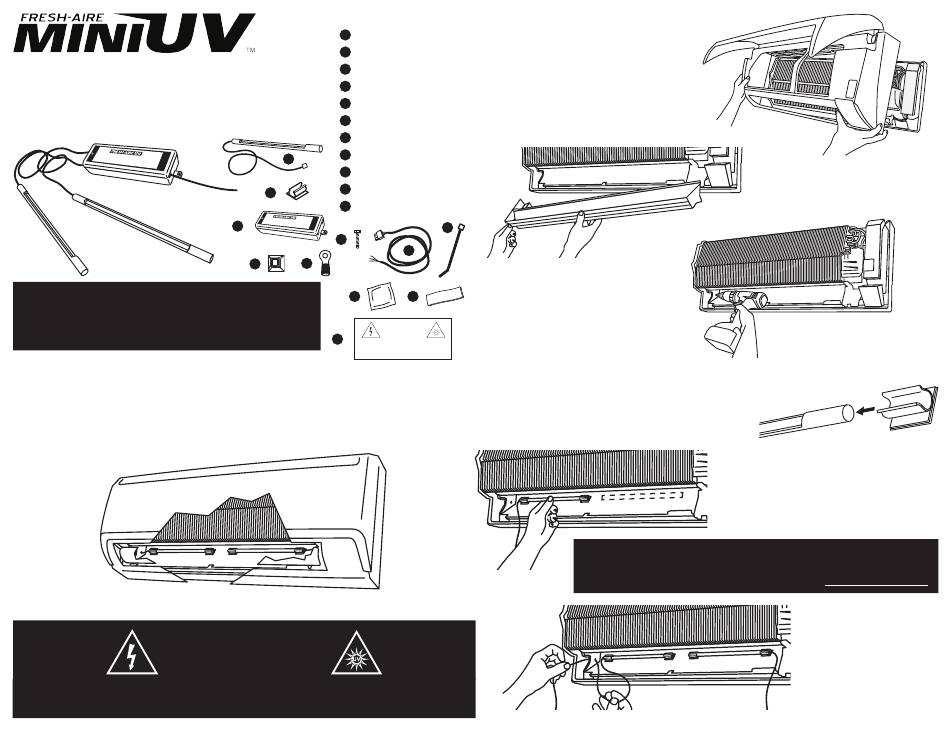

Cutaway view of typical Mini UV® installation in mini split
PROTECT EYES FROM UV LIGHT
TURN OFF UNIT OR DISCONNECT
Orient the UV lamps so that the light shines into the air system, not into the room

Parts Included

UV Lamps
A
Lamp Clips
B
Power Supply
C
Self-tapping Screws
C
Power Harness
D
Zip Ties
E
Zip Tie Base
F
Ring Connectors
G
A
Alcohol Wipe
H
Adhesive Tape
I
B
UV Warning Sticker
J
C
C
F G
H
J
Direct exposure to UV light is harmful to bare skin
This unit is equipped with a UV light disinfection system
To prevent exposure to UV light, disconnect power before servicing
TUV-MINI-MAN 04.30.12
Indirect exposure (blue glow) is not harmful
WARNING
BEFORE SERVICING
IMPORTANT!

Air System Preparation

E
D
3.
Drill holes to pass lamp
I
cables through to back
of unit as needed.
Caution
UV Light
and eyes

UV Lamp Mounting

1.
Determine the best location for the UV lamp clips
and clean that area with the alcohol wipe. Slide the
mounting brackets onto the ends of the UV lamps.
1.
Remove cover.
2.
2.
Peel off paper from the adhesive
backing on the mounting brackets.
Press the lamp with lamp clips firmly in
place about 2" from blower wheel.
IMPORTANT!
Rotate the lamp so the warning sticker is visible and the UV light
shines on blower wheel and mold prone areas,
Detach drain pan to
access the area behind it.
.
NOT INTO THE ROOM
3.
Pass the UV lamp cables
through to the back of
the AC system.
