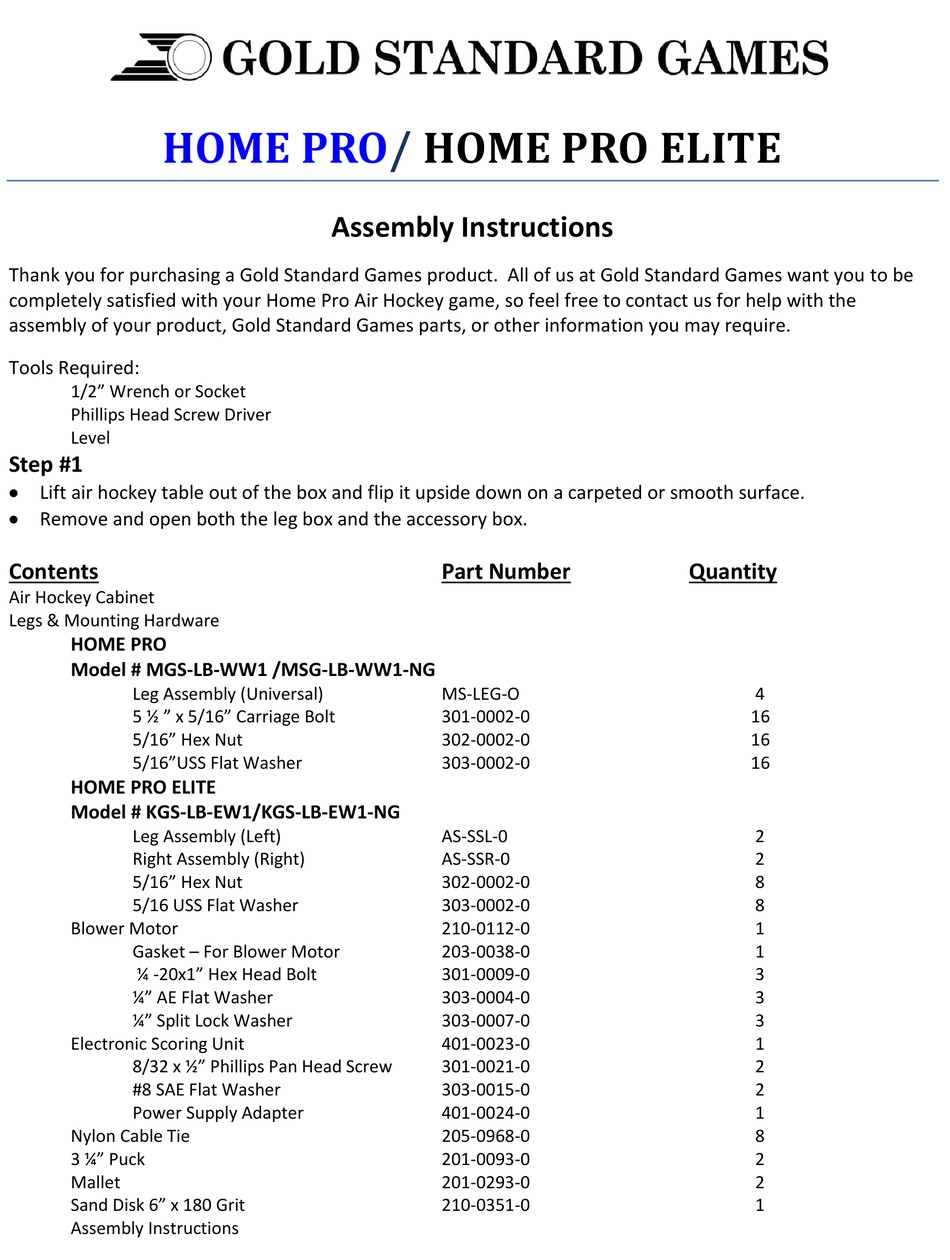

Thank you for purchasing a Gold Standard Games product. All of us at Gold Standard Games want you to be
completely satisfied with your Home Pro Air Hockey game, so feel free to contact us for help with the
assembly of your product, Gold Standard Games parts, or other information you may require.

Tools Required:

1/2" Wrench or Socket
Phillips Head Screw Driver
Level

Step #1

 Lift air hockey table out of the box and flip it upside down on a carpeted or smooth surface.
 Remove and open both the leg box and the accessory box.
Contents
Air Hockey Cabinet
Legs & Mounting Hardware
HOME PRO
Model # MGS-LB-WW1 /MSG-LB-WW1-NG
Leg Assembly (Universal)
5 ½ " x 5/16" Carriage Bolt
5/16" Hex Nut
5/16"USS Flat Washer
HOME PRO ELITE
Model # KGS-LB-EW1/KGS-LB-EW1-NG
Leg Assembly (Left)
Right Assembly (Right)
5/16" Hex Nut
5/16 USS Flat Washer
Blower Motor
Gasket – For Blower Motor
¼ -20x1" Hex Head Bolt
¼" AE Flat Washer
¼" Split Lock Washer
Electronic Scoring Unit
8/32 x ½" Phillips Pan Head Screw
#8 SAE Flat Washer
Power Supply Adapter
Nylon Cable Tie
3 ¼" Puck
Mallet
Sand Disk 6" x 180 Grit
Assembly Instructions
PRO/
HOME PRO ELITE
Assembly Instructions
Part Number
MS-LEG-O
301-0002-0
302-0002-0
303-0002-0
AS-SSL-0
AS-SSR-0
302-0002-0
303-0002-0
210-0112-0
203-0038-0
301-0009-0
303-0004-0
303-0007-0
401-0023-0
301-0021-0
303-0015-0
401-0024-0
205-0968-0
201-0093-0
201-0293-0
210-0351-0
Quantity
4
16
16
16
2
2
8
8
1
1
3
3
3
1
2
2
1
8
2
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Gold Standard Games HOME PRO

  • Page 1 Assembly Instructions Thank you for purchasing a Gold Standard Games product. All of us at Gold Standard Games want you to be completely satisfied with your Home Pro Air Hockey game, so feel free to contact us for help with the assembly of your product, Gold Standard Games parts, or other information you may require.
  • Page 2 Step # 2 – Attach the Legs (Model # MGS-LB-WW1) Attach the legs using the enclosed carriage bolts, washers and nuts as seen below with a ½” wrench or socket. For each leg attach two carriage bolts through the outside of the side apron and two through the inside support frame.
  • Page 3 Step # 3 – Attach the Blower Motor Locate the blower motor, gasket, and (3) mounting bolts. Place the gasket in between the blower and the table surface. Line up the holes of the blower with the predrilled holes and tighten. The plug from the blower motor and the AC Adapter should be plugged into the power strip mounted on the underside of the...
  • Page 4 Thread the two wires from the infrared sensors through the large hole on the side top- rail. The AC adapter should plug in to the power strip attached to the bottom of the table. Thread the smaller end through the same hole as other wires. Plug all three wires into the scoring unit as shown.
  • Page 5: Trouble Shooting

    The table surface should be Cleaned using rubbing alcohol or a window cleaner. Be sure to have blower running to help keep air holes clear while cleaning. Do not use wax base cleaners as they will clog up the holes. Do not clean the rails where the puck hits because this will cause the puck to not bank properly.
