Summary of Contents for Trueheat RCP4

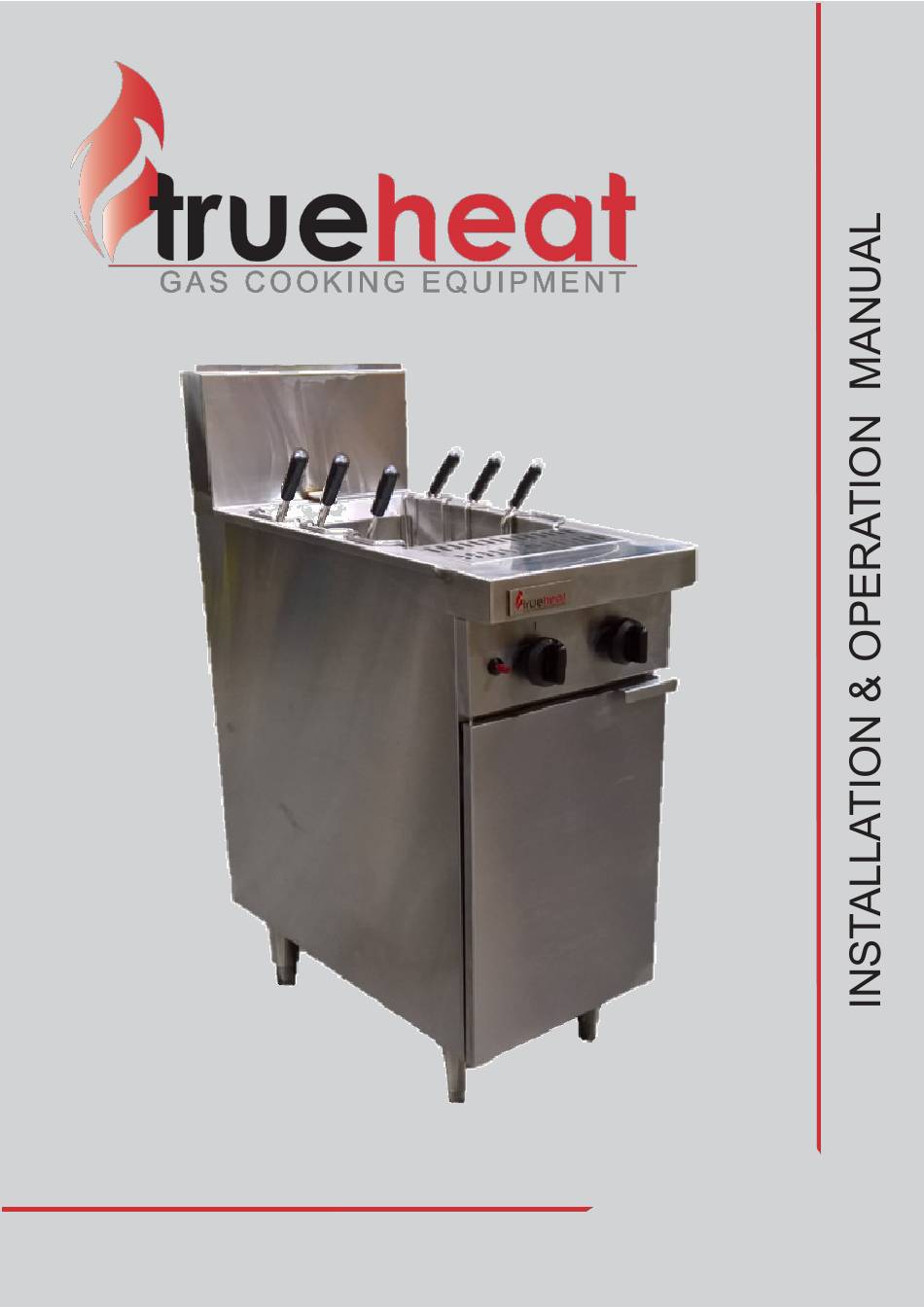

- Page 1 RCP4 Gas Pasta Cooker Trueheat RCP IO Manual—August 2018 Page 1 of 18...
- Page 2 CONGRATULATIONS! Thank you for choosing Trueheat. This product has been specifically designed by Comcater to meet a wide range of applications and represents the best quality and highest value equipment. Please read the Instruction Manual carefully to ensure the safe and reliable operation and performance of your equipment.
-
Page 3: Table Of Contents
First Time Use ........................ 13 Daily Operation ....................... 13 MAINTENANCE Daily Cleaning ........................ 14 Recommended Service Plan ..................15 TROUBLESHOOTING Burner will not light ......................16 Pilot not lighting ......................16 Trueheat RCP IO Manual—August 2018 Page 3 of 18... -
Page 4: Introduction
INTRODUCTION GENERAL The Trueheat RC Series is designed for commercial catering purposes only and incorporates a wide range of design features. It is designed to deliver high-end performance to fulfill the busy demands within a commercial kitchen. It is available in various appliances and configurations including: Ranges with open burners, griddles with oven or as Counter-Top unit. -
Page 5: Warnings
SUPPLY VALVE TO THE UNIT. CONTACT YOUR GAS SUPPLIER OR AN AUTHORISED PERSON. BEFORE TURNING ON THE MAIN GAS SUPPLY, CHECK THE UNIT TO BE CERTAIN THAT ALL THE VALVES ARE IN THE “OFF” POSITION. Trueheat RCP IO Manual—August 2018 Page 5 of 18... -
Page 6: General Information
The authorized person installing this equipment must commission the equipment in accordance with AS/NZS 5601.1 - gas leakage, operational checking, adjustments and instructing the owner on use of the equipment are prescribed requirements. Trueheat RCP IO Manual—August 2018 Page 6 of 18... -
Page 7: Specifications
1500mm SS braided water hose 3/4” female & 1/2” female 432018-900HK 900mm 3/4” flexible gas hose with quick connect fittings & restraint 432018-1200HK 1200mm 3/4” flexible gas hose with quick connect fittings & restraint *QTY = Quantity required per unit. Trueheat RCP IO Manual—August 2018 Page 7 of 18... -
Page 8: Gas Configuration
3 turns out from fully in NOTES: When checking gas pressure, ensure that all other equipment on the same line is turned “ON”. Values shown are those measured at the manifold pressure test point. Trueheat RCP IO Manual—August 2018 Page 8 of 18... -
Page 9: Installation
Prescribed requirements include, commission the equipment, gas leakage testing, operational checking and adjustments. All units are tested and adjusted at the factory; however, burners and pilots must be checked at the installed location and adjusted if necessary. Trueheat RCP IO Manual—August 2018 Page 9 of 18... -
Page 10: Installation Clearances
(ensure safe work practices). Similarly, raise the back and adjust the legs. Castors are non-adjustable and should only be used when are floors level. DO NOT LAY THE UNIT ON ITS BACK. ENSURE THE UNIT IS LEVELLED. Trueheat RCP IO Manual—August 2018 Page 10 of 18... -
Page 11: Leak Test
Pilot Assembly Pilot Assembly Low flame adjustment Low flame adjustment Pressure test point Pressure test point Drawing Gas Type Aeration Shutter Setting Reference Natural Gas 25 mm Propane Gas Fully Open Trueheat RCP IO Manual—August 2018 Page 11 of 18... - Page 12 PERFORM A LEAK TEST BEFORE IGNITING AND CALIBRATING BURNER AND PILOT ADJUSTEMENTS. The RCP4 Pasta Cooker can be configured to operate on either Natural Gas or Propane Gas. If a Gas Conversion is required, Gas conversation kits are available through Comcater Spare Parts for either gas type.
-
Page 13: Operation
Turn the gas control knob to the “"off" position. Allow the equipment to cool down before cleaning. DIAGRAM - OPERATOR CONTROLS Control knob marker “Off” Position “Pilot” “Hi-flame” Position Pilot viewing hole Piezo ignitor “Low-flame” Trueheat RCP IO Manual—August 2018 Page 13 of 18... -
Page 14: Daily Operation
Long term affects of poor cleaning can result in damage or failure of the tank. CLEANING THE TANK Clean the tank daily with mild detergent and hot water. Only a non-abrasive brush or cloth. Never use steel wool or abrasive scrubbing pads. Trueheat RCP IO Manual—August 2018 Page 14 of 18... -
Page 15: Recommended Service Plan
Check and adjust specified gas pressures Leak test Full operation, performance and safety test For all technical queries, please contact Comcater’s Technical Support Team. Technical Phone Support Phone: 1800 810 161 Email: techsupport@comcater.com.au Trueheat RCP IO Manual—August 2018 Page 15 of 18... -
Page 16: Troubleshooting
The repair is beyond the scope of the operator, please call Comcater service to organise a technician. For all technical queries regarding troubleshooting please contact Comcater Technical Support: Phone: 1800 810 161 Email: techsupport@comcater.com.au Trueheat RCP IO Manual—August 2018 Page 16 of 18... - Page 17 NOTES Trueheat RCP IO Manual—August 2018 Page 17 of 18...
- Page 18 Trueheat RCP IO Manual—August 2018 Page 18 of 18...
