Summary of Contents for Viking Professional DOUBLE SIDE BURNER Series
- Page 1 PROFESSIONAL GRILL ACCESSORY CARE & USE/INSTALLATION...
- Page 2 WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY.
-
Page 3: Side Burner Accessory Care & Use/Installation
WARNINGS WARNING • Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders in the cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or on their sides. •... - Page 4 WARNINGS WARNING 1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa). 2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
-
Page 5: Table Of Contents
TABLE OF CONTENTS USING YOUR ACCESSORY Accessories Covered in this Manual HOW TO LIGHT YOUR ACCESSORY BEFORE YOU START If Shipment Arrives Damaged Important Notes SPECIFICATIONS & INSTALLATION GAS CONNECTIONS Natural Gas LP Gas LP Connections Gas Conversion Kits ELECTRICAL CONNECTIONS Testing the Installation Leak Testing IMPORTANT SAFETY PRECAUTIONS... -
Page 6: Using Your Accessory

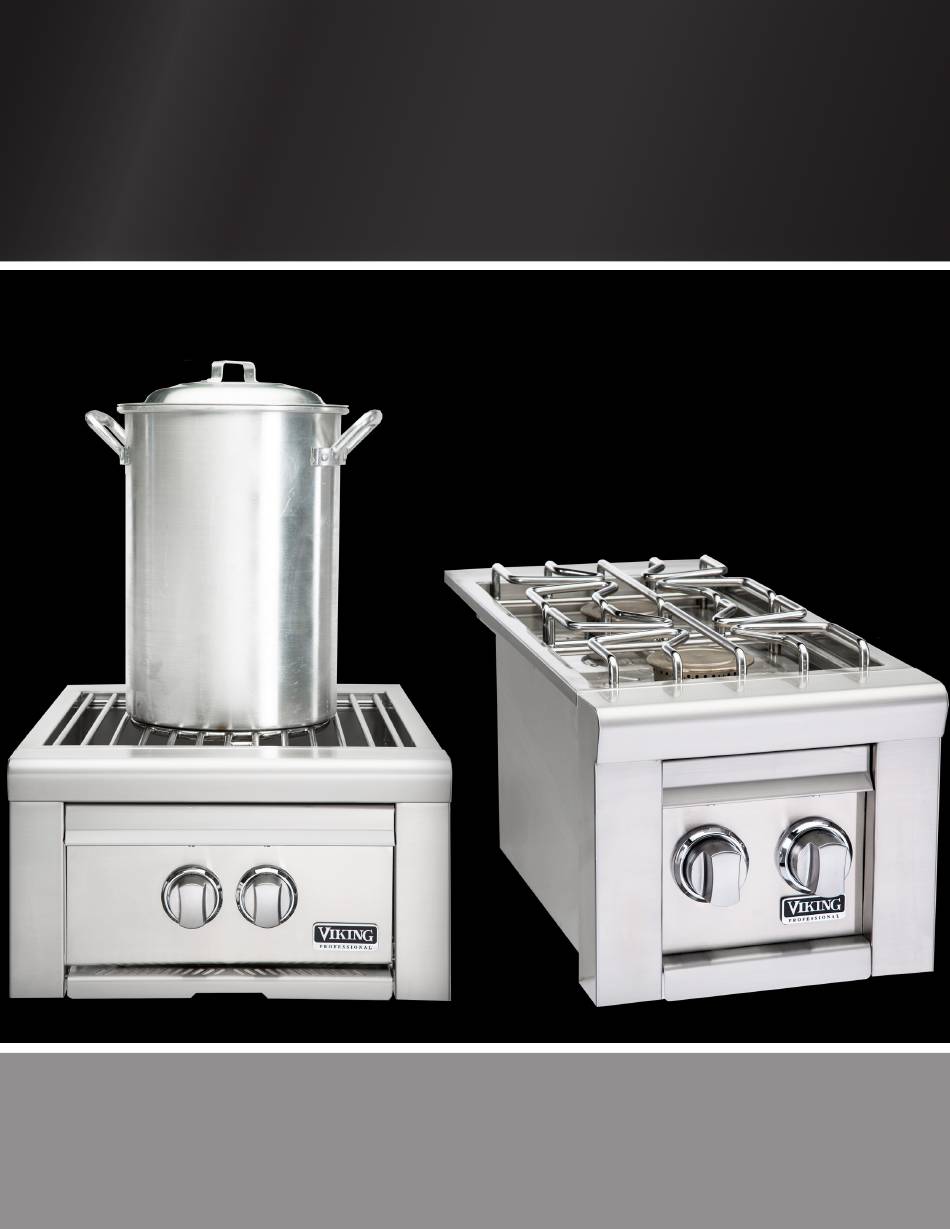

USING YOUR ACCESSORY This manual covers several accessory appliances and optional accessories for those appliances. Except where noted, the assembly, installation and use of these accessories is identical. ACCESSORIES COVERED IN THIS MANUAL DOUBLE SIDE BURNER POWER BURNER MODEL MODEL (C)VQGSB5130(N/L)SS (C)VQGPB5200(N/L)SS The Power Burner is a... -
Page 7: Before You Start
BEFORE YOU START WARNING • Never install this product into a combustible enclosure. Doing so could result in fire, property damage and personal injury. • Never locate the accessory under a roof or overhang, in a building, garage, shed or other such enclosed area. •... - Page 8 BEFORE YOU START ...continued BUILT-IN INSTALLATIONS CLEARANCE TO COMBUSTIBLE MATERIALS Built-in accessories are intended for installation in a built-in Minimum clearance from the sides and back of the enclosure constructed of non-combustible materials. accessory to adjacent combustible construction below the counter top is 12”...
-
Page 9: Specifications & Installation
SPECIFICATIONS & INSTALLATION The guides, measurements and dimensions detailed below are designated to assist you with planning your outdoor kitchen. NOTE: Due to continuing product innovation, specifications are subject to change without notice. IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifications and the proper installation of your outdoor kitchen equipment. -
Page 10: Gas Connections
GAS CONNECTIONS GAS PLUMBING WARNING Never connect a gas line directly to the accessory. A pressure regulator must be installed on all gas equipment. All local codes require that the pressure regulator supplied with your accessory is used. Removing or failing to install the pressure regulator can result in fire and serious personal injury and will void the warranty. -
Page 11: Lp Gas
GAS CONNECTIONS ...continued LP GAS A dented or rusty LP cylinder may be hazardous and should Accessories set up for LP gas come equipped with an LP be avoided. If in doubt, have it checked by your LP supplier. hose/ regulator assembly for connection to a standard 20 lb. LP cylinder. - Page 12 GAS CONNECTIONS ...continued propAne hook up nAturAl gAs hook up PROPANE HOOK UP NATURAL GAS HOOK UP MAxIMUM RUNS FOR ALL APPliAnces on suPPly line MAXIMUM RUNS FOR ALL APPLIANCES ON SUPPLY LINE Run Length Max BTU for all WARNING 3/4”...
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS OPTIONAL ELECTRICAL KITS Each accessory includes 6 feet of wiring (coiled inside the back of the accessory) to connect the accessory to a Viking Range, LLC grill. Additionally, 2 specialized electrical kits are available to purchase for your accessory, depending upon how it will be installed. -
Page 14: Testing The Installation
TESTING THE INSTALLATION FIXING A GAS LEAK Before turning the gas supply on, check for proper installa- tion using the following test: 1. Shut off the gas supply 1. Plug the transformer back into the receptacle. 2. Turn all grill controls to the “ON” position to purge the 2. -
Page 15: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR GRILL ACCESSORY. 1. NEVER LEAVE THE GRILL ACCESSORY UNATTENDED 10. Never use charcoal or any other solid fuel in the grill WHILE COOKING. accessory. 2. Ensure all tie-down wires have been removed from the 11. -
Page 16: A Message To Our Customers
A MESSAGE TO OUR CUSTOMERS You’ve just joined a discriminating collection of amateur and professional chefs that take outdoor cooking to a new level. Viking Range, LLC manufactures many accessory cooking appliances to compliment your grill and your desire for truly superior cooking results. Your appliance has been designed and built with meticulous attention to detail and it offers some unique and powerful features. -
Page 17: Using The Power Burner
USING THE POWER BURNER ((C)VQGPB5200(N/L)SS) SMELL OF GAS WHILE COOKING The power burner incorporates a cast brass, dual-ring, burner. WARNING! IF YOU SMELL GAS WHILE THE GRILL ACCES- SORY IS OPERATING, IMMEDIATELY TURN OFF ALL BURNERS AND SHUT OFF THE MAIN FUEL SUPPLY. •... -
Page 18: Lighting Instructions For All Accessories
LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES PURGING THE GAS LINES SAFETY PRACTICES AND PRECAUTIONS You should purge the gas line of air before attempting to light the grill accessory. WARNING 1. Make sure all grill controls are in the “OFF” position. Read the ‘User Manual/Installation Instructions 2. -
Page 19: Low Heat Flame Adjustment
LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES ...continued LOW HEAT FLAME ADJUSTMENT The burners on your accessory feature an adjustable low setting. Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the “LOW”... -
Page 20: Contacting Customer Service
CONTACTING CUSTOMER SERVICE Before calling Customer Service, please make sure you Your satisfaction is of the utmost importance to us. If a have the following information: problem cannot be resolved to your satisfaction, please write, fax or email us: • Model number Viking Range, LLC •... -
Page 21: Schematics
SCHEMATICS WHITE SIDE BURNER ACCESSORY CARE & USE/INSTALLATION... -
Page 22: Viking Range, Llc Limited Warranty
VIKING RANGE, LLC LIMITED WARRANTY I. LIMITED LIFETIME WARRANTY 7) No one has the authority to add to or vary Viking Range, LLC’s warranty, or to create for Viking Range, LLC any other obligation or liability in The stainless steel grill body, brass grill burners, cooking grates, ProSear connection with the sale or use of its products. -
Page 23: Viking Range, Llc Common Area Limited Warranty
VIKING RANGE, LLC COMMON AREA LIMITED WARRANTY The Viking Range, LLC Limited Warranty covers residential for damage resulting from misuse, abuse, alteration of or installations only and is non-transferable to any other party. tampering with the appliance, accident, hostile environ- This ‘non-residential’... -
Page 24: Side Burner Exploded Parts View
SIDE BURNER EXPLODED PARTS VIEW MODEL-SPECIFIC BTU OUTPUTS MODEL INNER BURNER OUTER BURNER OPEN TOP BURNER TOTAL INPUT VQGPB5200(N/L)SS 13,000 34,000 47,000 BTU/Hr VQGSB5130(N/L)SS 2 @ 15,000 30,000 BTU/Hr SIDE BURNER ACCESSORY CARE & USE/INSTALLATION... -
Page 25: Index
INDEX Obtaining Service ............19 Adjusting: Optional Electrical Kits ..........14 Low Heat Adjustment ............ 19 Power Burner Air Shutter ..........17 Air Shutter Adjustment ..........17 Propane Hook Up ............12 Purging the Gas Lines ........... 18 Code Requirements ............8 Cold Weather Use ............ - Page 26 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 Service: (888) 845-4641 www.vikingrange.com www.brigade.ca...
