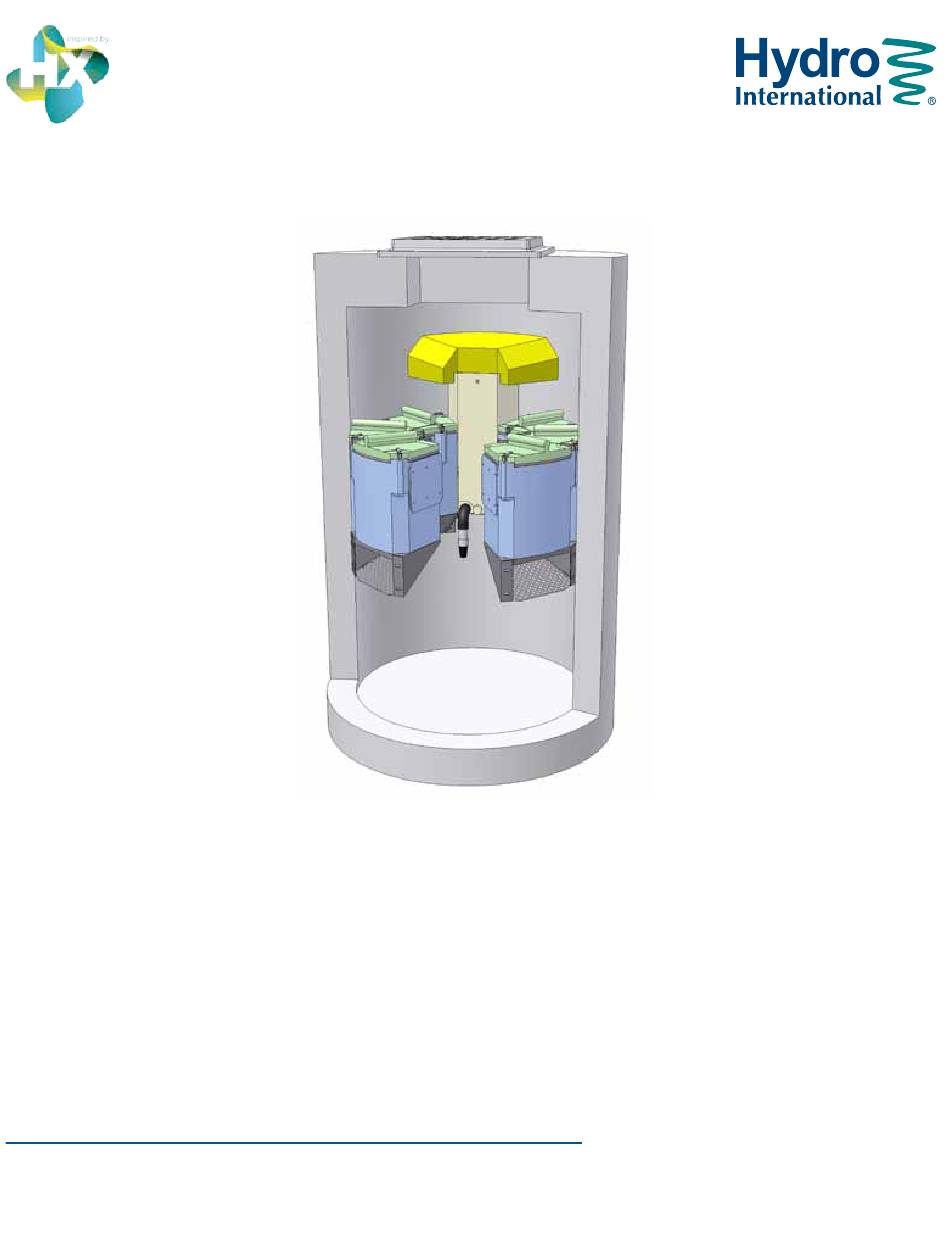

- Page 1 Operation and Maintenance Manual ® Up-Flo Filter Stormwater Solutions Filtration System for Stormwater Treatment Turning Water Around ... ®...
-
Page 2: Table Of Contents
Email: stormwaterinquiry@hydro-int.com COPYRIGHT STATEMENT: The contents of this manual, including the drawings and specifications contained herein or annexed hereto, are intended for the use of the recipient to whom the document and all associated information are directed. Hydro International plc owns the copyright of this document (including any drawings or graphics), which is supplied in confidence. It must not be used for any purpose other than that for which it is supplied and must not be reproduced, in whole or in part, stored in a retrieval system or transmitted in any form or by any means without prior permission in writing from Filter is a trademarked filtration device of Hydro International plc. A patent covering the Up-Flo... -
Page 3: Up-Flo ® Filter
® Filter, the minimum maintenance frequency specified in the maintenance section for replacement of the Media Pack and removal of accumulated sediment from the sump is mandatory. Hydro International offers recommendations for certified maintenance contractors. It is hoped that owners will take advantage of this service as these contractors have been trained and certified to ensure that maintenance will be performed properly. Should the owner choose to conduct maintenance procedures themselves, it is recommended that Hydro International be contacted to discuss the following procedures and consider contracting a representative from Hydro International for the first maintenance cycle. See page 17 for more about Hydro International’s Stormwater BMP Maintenance Contractor Certification Program. Up-Flo ® Filter Components 1. Inlet Grate 2. Siphonic Bypass Hood with Floatables Baffle... -
Page 4: Operation
Filter Modules until construction activities are complete and site stabilization is effective. Damage Due to Lack of Maintenance Delayed maintenance would result in clogged Media Bags and/or blinded Angled Screens. In that situation, the Up-Flo ®... -
Page 5: Inspection & Maintenance
Filter protects the environment by removing a wide range of pollutants from stormwater runoff. Periodic removal of these captured pollutants is essential to the proper functioning of the Up-Flo ® Filter. Maintenance activities can be categorized as those that may be performed from outside the Up-Flo ® vessel and those that are performed inside the vessel. Maintenance performed from outside the vessel includes removal of floatables and oils that have accumulated on the water surface and removal of sediment from the sump. - Page 6 Bag weighs approximately 50 lbs (23 kg) wet. • ® Measurement of oil layer on water surface: Since water in the Up-Flo vessel drains down to an elevation below the bottom of the Filter Modules when the system is idle, the amount of accumulated oil must be minimized so that oil is not entrained in the Media Pack when stormwater begins to fill the vessel at the start of a storm event.
- Page 7 The wet weight of the heaviest bag will be used to determine the loading rate. As previously mentioned, a spent Media Bag weighs approximately 50 lbs (23 kg) wet. The spent Media Bag weight estimate was based on calculations of sediment loading in an Up-Flo ®...
- Page 8 • Trash bags for removed floatables On the Maintenance Log provided by Hydro International, re- cord the date, unit location, estimated volume of floatables and gross debris removed, and the depth of sediment mea- sured. Also note any apparent irregularities such as damaged components or a high standing water level (see Fig.6 for the...
- Page 9 Maintenance Activities Not Requiring Man Entry Routine Maintenance These activities include floatables removal, oil removal and Maintenance activities are grouped into two categories: • removal of sediment from the sump. Activities Not Requiring Man Entry Into the Up-Flo ® Filter These activities include floatables removal, oil removal and Scheduling removal of sediment from the sump.
- Page 10 Floatables, Oil and Sediment Clean Out These activities include replacement of the Media Packs and 1. Set up any necessary safety equipment (such as traf- Drain Down Filter. fic cones) around the access of the Up-Flo ® Filter. Safety equipment should notify passing pedestrian and road traffic ®...
- Page 11 OSHA Confined Space Entry Equipment • A bottom layer of green Flow Distributing Media. • Up-Flo ® Filter Replacement Media Packs (available from Hydro International) Insert a new Media Pack, supplied by Hydro International. • Hydro International Up-Flo ® Filter Maintenance Log • First, insert a bottom layer of green Flow Distributing • Screwdriver (flat head) Media. Be sure that the media sits snugly and level at the bottom of the Filter Module.
-
Page 12: Inspection
- Twice per year or as needed Floatables/Oils Removal - Following a contaminated spill in the drainage area Filter Configuration ® - Every six to 12 months, depending on the Up-Flo - The maximum allowable sediment depth in any Up-Flo Filter configuration is 16 inches (41 cm) Sediment Removal - Following a contaminated spill in the drainage area - Once per year... -
Page 13: Up-Flo ® Filter Installation Log
® Up-Flo Filter Operation and Maintenance Manual Page | 13 ® Up-Flo Filter Installation Log SITE REFERENCE NAME OR NuMbER FOR THIS uP-FLO ® FILTER LOCATION: SITE NAME: SITE LOCATION: OwNER: SITE CONTRACTOR: CONTACT NAME: CONTACT NAME: COMPANY NAME: COMPANY NAME:... -
Page 14: Up-Flo ® Filter Inspection Log
Grates in good condition? Spalling or cracking of structural parts? Outlet/Overflow Spillway Other Noticeable odors? Any evidence of filter(s) clogging? Evidence of flow bypassing facility? Hydro International (Stormwater), 94 Hutchins Drive, Portland ME 04102 Tel: (207) 756-6200 Fax: (207) 756-6212 Web: www.hydro-int.com Inspection Log Page | 1 of 2... - Page 15 If any of the above Inspection Items are checked “Yes” for “Maintenance Needed”, list Maintenance actions and their completion dates ® below or on the Maintenance Log provided on page 15 of the Up-Flo Filter Operation & Maintenance Manual: Maintenance Action Needed...
-
Page 16: Up-Flo ® Filter Maintenance Log
Acceptable Unacceptable **”Acceptable” would mean properly functioning; “unacceptable” would mean damaged or required further maintenance. Maintained by: (signature) ________________________________________________________ Maintained by: (printed) __________________________________________________________ Hydro International (Stormwater), 94 Hutchins Drive, Portland ME 04102 Tel: (207) 756-6200 Fax: (207) 756-6212 Web: www.hydro-int.com... - Page 17 Hydro International’s manufactured stormwater treatment products. Maintenance providers who complete this complimentary web-based program become a Hydro International Preferred Stormwater BMP Maintenance Partner. Become a Hydro International certified Stormwater BMP maintenance provider today. Learn more at http://www.hydro-int.com/us/products/service-parts Stormwater Solutions 94 Hutchins Drive...
