Summary of Contents for DigiCare DigiPump LP8
-
Page 2: Table Of Contents
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc CONTENTS Introduction A. About this manual…..………………………………………………….2 B. Manufacturer’s Responsibility….……………………………………...2 C. Warranty……..…………………………………………………………2 D. Unpacking and Accessories…………………………………………….2 E. General Safety………………………………………………………….3 Chapter I Overview 1.1 Application…………………………………………………………….4 1.2 Technical specification………………………………………………...4 1.3 Description…………………………………………………………….5 1.4 Components and Functions …………………………………………...6 1.4.1 Front view……………………………………………………...6... - Page 3 Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3.7 Finishing infusion………………………………………………..…..15 3.8 Powering off………………………..………………………………..15 3.9 Extended operations…………………………………………….…...15 3.9.1 Pause/ Restart…………………………………………………15 3.9.2 To continue another solution container……………………….15 3.9.3 Purge Function..………………………………………………16 3.9.4 IV Set Auto-Adjustment………………………………………16 3.9.5 IV Set Manual Adjustment……………………………………17 3.9.6 Occlusion valve adjustment…………………………………..18...
-
Page 4: Introduction
Introduction A. About This Manual This operator’s manual has been prepared to provide information on the correct use of the DIGICARE BIOMEDICAL TECHNOLOGY INC. Digipump LP8 Infusion Pump. It contains performance specifications and installation, operation and maintenance information. It is intended for trained health care professionals. -
Page 5: General Safety
DigiPump LP8. • Stop the device immediately in case of any abnormal functioning of the infusion pump. • Keep the DigiPump LP8 far, at least 1 meter (3.0 feet) from other generating HF equipments such as electrosurgical unit and others. -
Page 6: Chapter I Overview
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. Chapter I. Overview 1.1. Application The Digipump LP8 infusion pump is intended to be used in health care facilities for continuous and accurate infusion of liquids to patients. 1.2 Technical Specification Iv set requirement 10, 15, 20, 60drops/ml (standard PVC with outer diameter: 3.4mm-4.5mm... -
Page 7: Description
：70KPa～106Kpa Operating Atmospheric pressure 1.3 Description • The DigiPump LP8 is designed for precise infusion of both general parental solution and solution with high surface tension, offering safety, performance and convenience with its easy-to-set adjustment and compensation functions. • Applications include continuous infusion at operating room, ICU, CCU, chemotherapy, TPN, nutrition, infusion of oxytoxics and anti-cancer drugs. -
Page 8: Components And Functions

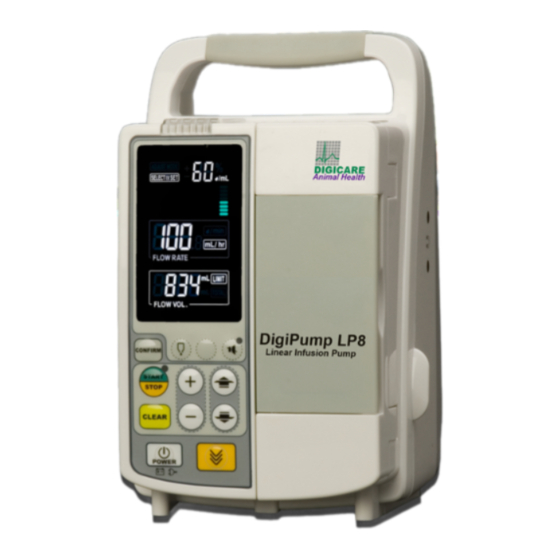

Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1.4 Components and Functions 1.4.1 Front view Handle: Easy to carry LCD: Display with Rate Alarm light: High and Volume Indicators, intensity Alarm Light infusion status and alarm Indicator can be observed... -
Page 9: Lcd
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1.4.3 LCD Adjust mode: Adjust Mode Indicator Select IV set：Set to 10,15,20 or 60d/ml Alarm messages window Drop/min Flow rate setting： Set ML/hour Flow Rate drop/min or ml/h VTBI indicator... -
Page 10: Rear View
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1.4.5 Rear view Drop detector: Place it at Pole Mount this point when it is not in use. Auto Adjust: Press the key Adjust for Occlusion adjust Pressure, Air IN Line... -
Page 11: Chapter Ii Installation
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. Chapter II. Installation 2.1 Packing list When opening the package, verify that the items below are enclosed: 1) Infusion pump ……………1 2) Drop detector ………… ……1 3) Knob bolt …………… …… 1 4) Power cord……………... -
Page 12: Installation
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 2. Press “ ”over 0.5 second to turn on the machine. The AC power “ ”indicator light will illuminate and the battery indicator “ ” will flash and the charge will begin;... -
Page 13: Install The Drop Detector
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. Note: To make sure it can infuse normally, do not leave the chamber full of liquid or the pump will not be able to detect the drops. At the same time, if the chamber is not filled with liquid at least 1/4, the pump will easily alarm because of the bubble formation in the chamber. -
Page 14: Select The Type Of Iv Set
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3. Keep drop detector away from direct sun light or other source of strong light or it may cause alarms. 4. When there is liquid on the sidewall of the chamber, shake it gently to clear the sidewall and make sure the drops are detected correctly. - Page 15 Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1) After the IV set has been used over 5-6 hours, we suggest reposition 3. IV set distortion the IV tubing down or up 20cm for the linear pump cassette act on a due to long time use new tube position.
-
Page 16: Set The Flow Rate And Volume To Be Infused
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3.5 Setting the flow rate and volume to be infused 1. Flow rate setting: press“ ”or “ ”to move the cursor to “ ”or“ ”; At this time, “... -
Page 17: Finishing Infusion
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3. Press“ ” to start infusion. The LCD“ ” moves indicating the infusion is running; Attention: Observe if the drop detector lights for each drop detected 3.7 Finishing Infusion When volume infused display reaches volume to be infused (limit) setting, the pump will display a “... -
Page 18: Purge Function
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. Notes: Turning power off and back on, reset the total infused volume to “0” automatically. The IV set, flow rate, adjustment value and volume to be infused (limit) will keep the last programmed settings. -
Page 19: Set Manual Adjustment
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 5. Press the “AUTO ADJUST” key on the back panel, the display indicator will flash and a beep will sound indicating the adjustment mode has been entered. 6. Press“... -
Page 20: Occlusion Valve Adjustment
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3. The formula for adjustment is: Note: “Volume Infused Display” is for “ ”volume. In order to measure the “Actual Volume Infused” you need to use a graduated glass or similar to measure the actual infusion volume by yourself. -
Page 21: Toggle Switch
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 3.9.8 Toggle switch 5 toggle switches are provided at the bottom of the infusion pump. They are used for engineering only Note: Pin the down position they are ON In the up position they are OFF For normal operation all 5 switchws shall be kept to OFF. - Page 22 Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. blocked. Alarm not cleared Press“ ”to clear the alarm. Pump door is open. Close and lock the pump door “ ” IV Tubing folded Check whether the IV tubing is folded...
- Page 23 Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1. Check and make sure the Drop detector is Drop detector disconnected connected and mounted properly. 2. Check whether the connector is broken. 1. Press“ ”to clear warning. But pause is Pause overtime maintained.
-
Page 24: Other Failures
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. Adjustment finished, please restart Turn off and restart The volume limit for the Refer to the operator manual(3.9.4（8）) auto-adjustment is too low If occurs alarm such as “OPEN”, “OCCL”, Auto-adjustment failed, please “Pump... -
Page 25: Chapter Iv Maintenance
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 1. Open pump door and turn the tube clamp to the left . Check whether the linear 2. Remove the linear pump cassette. pump cassette and 3. Rotate gear with fingers and check if it moves smoothly. -
Page 26: Linear Pump Cassette
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 4.1.3 Finger pump cassette Remove the finger pump cassette and wash it, wipe it with dry cotton and mount back . 4.1.4 Tube clamp 1) Loosen screw and remove the tube clamp. -
Page 27: Replacement
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. hours,“ ”stop flashing and the battery will be fully charged. 4.2.2 Replacement 1) Loosen screw to remove battery cover. Unplug connector and remove battery. 2) Replace battery, and attach battery cover. Make sure that the battery cover does not smash the battery cable. -
Page 28: Explanations Of Symbols
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. 4.5 Explanations of symbols ：Files must be read before the machine is used. ：According to the safety classification of medical electrical and electronic equipment, it is class II equipment. -
Page 29: Warranty Terms & Conditions
Operator’s Manual DigiPump LP8 Infusion Pump - Digicare Biomedical Technology Inc. WARRANTY TERMS & CONDITIONS DIGICARE BIOMEDICAL TECHNOLOGY, INC. covers all of their infusion pumps with a 1 year warranty: Infusion Pump DigiPump LP8: 1 year parts and labor Accessories: 90 days on accessories only DIGICARE BIOMEDICAL TECHNOLOGY, INC.
