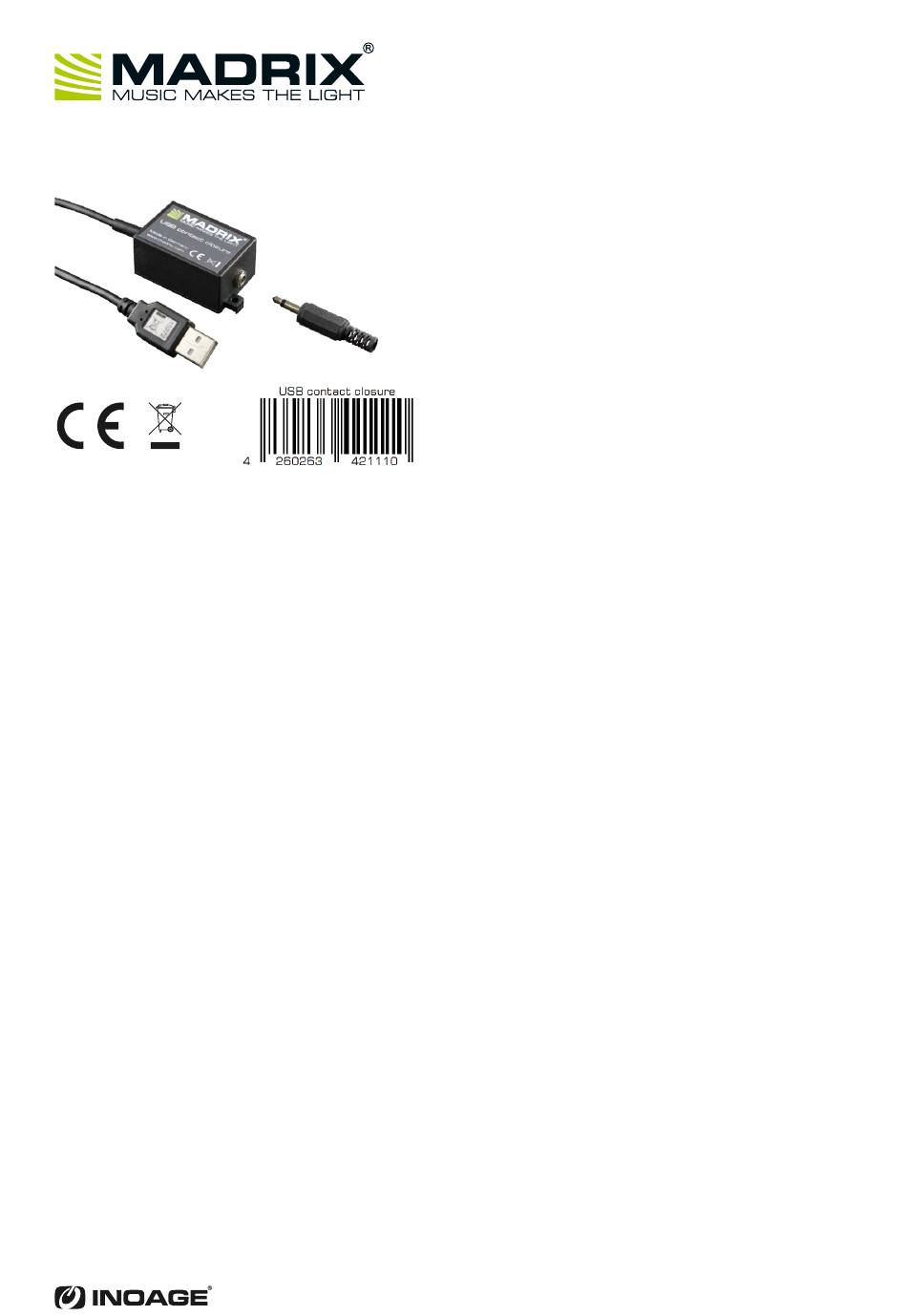

MADRIX IA-HARD-001011 Quick Start Manual

MADRIX USB contact closure
®
Quick Start Guide
4 Edition, Last Update: June 2015
th

Package Contents

• 1x MADRIX USB contact closure
®
• 1x Quick start guide

Technical Details

Power:
Power consumption:
USB:
Case:
Dimensions:
Temperature range:

Step-By-Step Configuration

1] Connect your device.
2] Enable drivers in MADRIX
3] Enable your device.
4] Set up DMX Input.
5] Choose how to use incoming data.
1] Connect Your Device
• Connect your MADRIX
• Make sure that Windows recognizes the device. Windows will automatically install the drivers
for the device.
2] Enable Drivers In MADRIX
• In MADRIX , go to 'Preferences' > 'Options...' > 'Devices USB'.
®
• Activate 'MADRIX I/O'.
• Click 'Apply' and 'OK'.
DC 5 V, 500 mA, Power over USB
~ 25 mA during normal operation
USB 2.0, type B plug, Plug and Play
IP30
44 mm x 30 mm x 23 mm (length x width x height)
–20 °C to 80 °C (Operating / Storage)
.
®
I/O device to a free USB 2.0 port of your computer.
®
®
MADRIX I/O products are
®
supplementary input and output devices.
External equipment, such as sensors,
bring additional automation processes and
interaction to any LED project using MADRIX
software.
This digital input device registers if its circuit
is either open or closed. In most cases, it is
used to build a switch or trigger. Incoming
values are directly translated into DMX data
in the MADRIX software. The small unit can
®
simply be connected to any USB 2.0 port.
Example of use: Strobe or Blackout
Order Number
IA-HARD-001011

Software Requirements

MADRIX I/O requires MADRIX 3.
Please update at least to MADRIX 3.4.
®
1 | 2
