Audio Ltd. A-RXMON User Manual

Headphone monitor for audio a10-rx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A-RXMON
Headphone Monitor for A10-RX
—
—
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-RXMON and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Ltd. A-RXMON

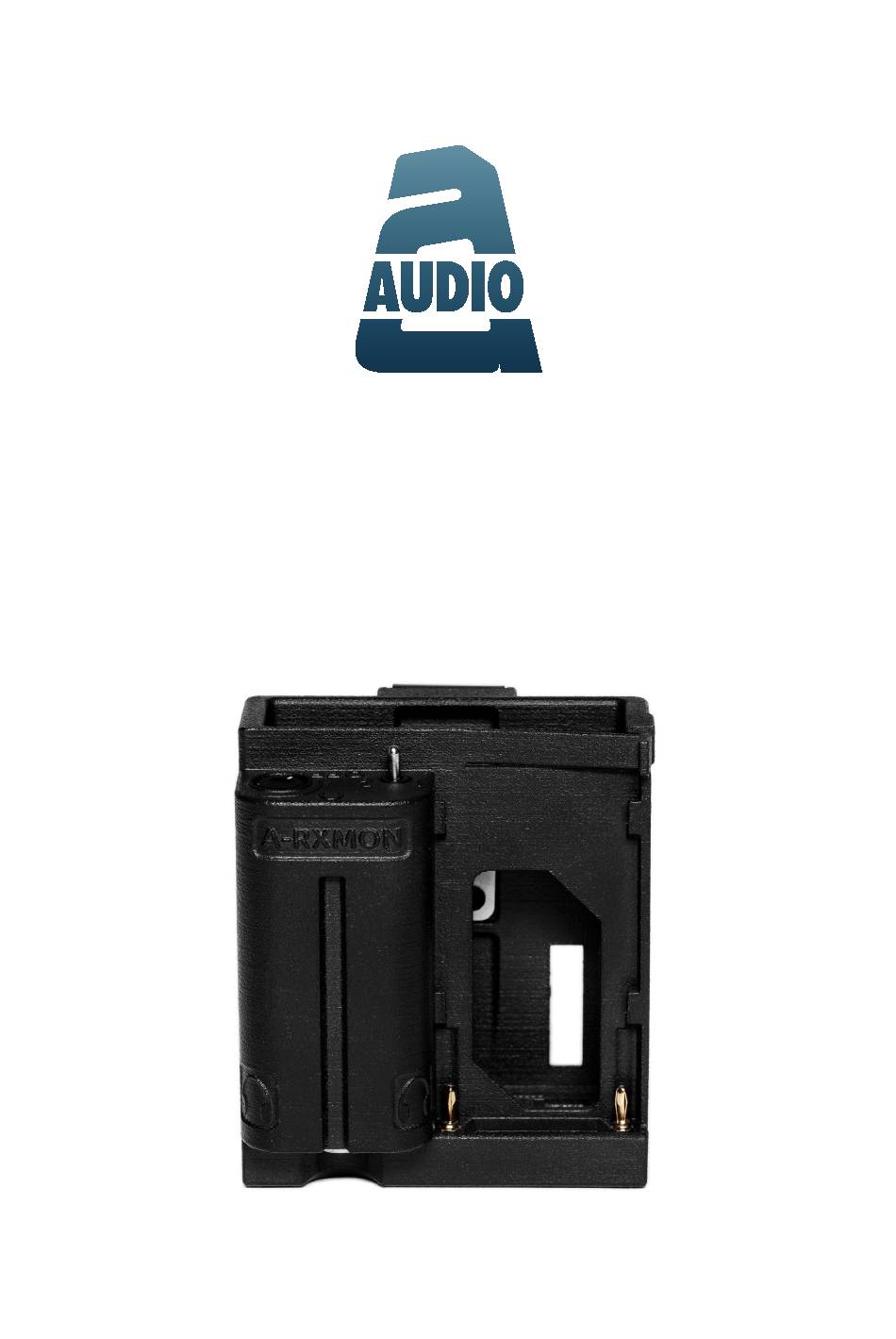

  • Page 1 A-RXMON Headphone Monitor for A10-RX — — User Guide...

  • Page 2: Table Of Contents

    A-RXMON User Guide Copyright / Doc Rev History Info Copyright © 2018 Audio Ltd. All rights reserved. | www.audioltd.com 7 Century Court, Tolpits Lane, Watford WD18 9RS, UK | info@audioltd.com Revision Date Description Dec 2018 Initial Publication Table of Contents Copyright / Doc Rev History Info .

  • Page 3: Overview

    2. Carefully slide the A10-RX into the slot. Press until you feel the connector seat fully and the receiver is flush to the face of the A-RXMON. 3. Using the included 4 M2.5x16 mm screws, attach the A10-RX to the A-RXMON via the holes in the bottom of the unit.

  • Page 4: Connectors, Controls Description

    A-RXMON User Guide Connectors, Controls Description Figure 2: A-RXMON Front Panel 1 -Channel Selector Switch 4 -Battery Mount 3-way selection of A10-RX channels: L-mount for a dual-terminal, Lithium-ion battery. Position Description Flip left to monitor channel 1 in both 5 -USB-B Port right and left headphone channels.

  • Page 5: Specifications

    A-RXMON User Guide Specifications Material 30% fiberglass-filled nylon Weight 4.6 oz / 130.4 g Operating Voltage 6 - 8.4 VDC Headphone Out 3.5 mm TRS headphone jack, compatible with mono or stereo headphones of any impedance Frequency response 20 Hz - 20 kHz +/- 1dB referenced to 1...

  • Page 6: Firmware Updates

    From time to time, Audio Ltd. issues new firmware for the A10-RX receiver, which may be updated while it is installed into an A-RXMON. Make certain to register your product at the Audio Ltd. website to receive firmware update notifications.

  • Page 7: Certifications

    A-RXMON User Guide Certifications Industry Canada Conformity This radio transmitter has been approved by Industry Canada to operate with the supplied monopole whip antenna only. Other antenna types are strictly prohibited for use with this device. This device operates on a no-protection no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio license is required.
