ClearView KR356H User Manual

Dvb-s2 hd ird
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KR356H DVB-S2 HD IRD User Manual
This device is manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KR356H and is the answer not in the manual?

Questions and answers

Summary of Contents for ClearView KR356H

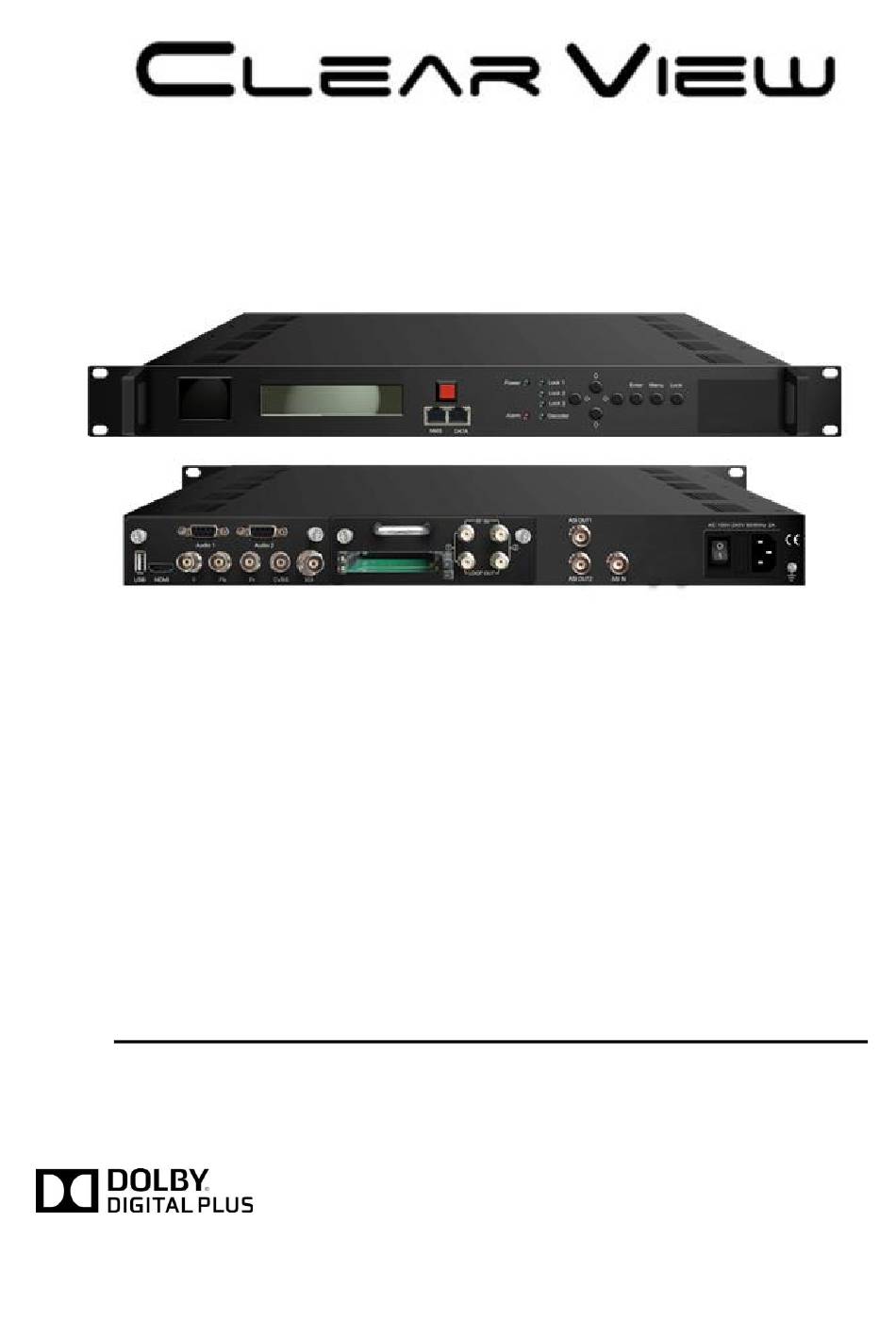

  • Page 1 KR356H DVB-S2 HD IRD User Manual This device is manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.

  • Page 3: Table Of Contents

    DIRECTORY Chapter 1 Product Outline ................4 1.1 Outline ........................4 1.2 Features ........................4 1.3 Specifications ......................5 1.4 Principle Chart ......................6 1.5 Appearance and Description ..................6 1.6 System Connection Sample ..................7 Chapter 2 Installation Guide ................8 2.1 Acquisition Check .....................

  • Page 4: Chapter 1 Product Outline

    Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed. To meet customers’ various requirements, KR356H is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.

  • Page 5: Specifications

    KR356H DVB-S2 HD IRD User Manual 1.3 Specifications Input 2 x DVB-S/S2RF, F type 1×ASI input for re-mux, BNC interface 1xIP input for re-mux (UDP) Demodulating Section DVB-S Input Frequency 950-2150MHz Symbol rate 2-45Msps Signal Strength - 65- -25dBm Constellation...

  • Page 6: Principle Chart

    KR356H DVB-S2 HD IRD User Manual General Power supply AC 100V~240V Dimensions 482*300*44.5mm Weight 3 kgs Operation temperature 0~45℃ 1.4 Principle Chart IP Output & Tuner 1 ASI Output 1,2 BISS Tuner 2 Video (CVBS/YPbPr/HDMI/SDI) Audio 1: analog stereo or Dolby Decoder Digital/Dolby Digital Plus 5.1 CH...

  • Page 7: System Connection Sample

    KR356H DVB-S2 HD IRD User Manual Rear Panel Illustration USB upgrade port HDMI video/audio output Component video output (YPbPr) Decoder Board Composite video output (CVBS) SDI video/audio output Analog stereo audio out 1 (R/L) Analog stereo audio out 2 (R/L) Tuner Receiving CAMs /Smart card slots A &...

  • Page 8: Chapter 2 Installation Guide

    KR356H DVB-S2 HD IRD User Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ⚫ KR356H DVB-S2 HD IRD ⚫...
  • Page 9 KR356H DVB-S2 HD IRD User Manual 2.2.2 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, the distance between 2 rows of machine frames should be Machine Hall Space 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 10: Wire's Connection

    1Ω. Caution: Before connecting power cord to KR356H, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 11 KR356H DVB-S2 HD IRD User Manual ⚫ Tuner Cable Illustration: ⚫ ASI Input/output Cable Illustration: ⚫ Video & Audio output Cable Illustration: (for connection between the IRD and TV set or home theater) CVBS Cable YPbPr Cable 11 / 43...
  • Page 12 KR356H DVB-S2 HD IRD User Manual HDMI Cable SDI Cable ⚫ Audio adapt cables Illustration: (for connection between the IRD and TV set) 12 / 43...

  • Page 13: Chapter 3 Operation

    KR356H DVB-S2 HD IRD User Manual Chapter 3 Operation The front panel of KR356H DVB-S2 HD IRD is the user-operating interface and the equipment can be conveniently operated and managed according to the procedures displayed on the LCD: Keyboard Function Description: MENU: Cancel current entered value, resume previous setting;...
  • Page 14 KR356H DVB-S2 HD IRD User Manual Initializing Lock HD IRD Bitrate: 70.865Mbps Down Enter Menu Main Menu: Status: Status Alarm Status: Uptime Tuner Parameters: 1: Tuner DVBS/S2 Main Menu: Input Sets Satellite frequency Tuner Parameters Input Sets 1: Tuner DVBS/S2...
  • Page 15 KR356H DVB-S2 HD IRD User Manual Decoder: Main Menu Video Format Decoder Audio Mode Audio Select Volume Search Program Program Select Rom Version Decoder Status Main Menu： IP Stream: IP Stream Service IP IP Stream: Subnet Mask IP Stream: Gateway...

  • Page 16: General Setting

    KR356H DVB-S2 HD IRD User Manual 3.2 General Setting Switch on the device and after a few seconds’ initialization, it presents start-up pictures as below: HD IRD Start up… Start OK… Bitrate: xx.xxx Mbps ⚫ HD IRD: Device’s name ⚫ Bitrate: xx.xxx MHz indicates the current effective bitrate multiplexed output.
  • Page 17 1 Day(s) 03:30:02 3.2.2 Input Sets KR356H supports 2 tuners input, 1 ASI input and 1 IP stream input. Users can enter ‘Input Sets’ to configure the tuner/IP parameters to receive the transport streams and select programs to mux out. It displays as below:...
  • Page 18 KR356H DVB-S2 HD IRD User Manual Multiplexing operation can only take effect on condition that the “TS output NOTE: mode” is set to “Mux” under ‘TS Config’. (i.e.: TS Config → → TS output mode Mux) For reading the input...
  • Page 19 Select Program 3.2.3 CI Card KR356H supports 2 CI cards (Card A & Card B) to descramble programs from either encrypted RF, ASI or IP. Users can press ENTER key to enter ‘CI Card’ to configure the 2 cards respectively.
  • Page 20 48 Mbps ➢ Input TS Mode KR356H has 4 signal sources: Tuner 1, Tuner 2, ASI, and IP. One CI card can be applied to descramble one channel input signal from the 4 signal sources. ‘Skip CI card’ means to skip the card which is used for FTA stream.
  • Page 21 Descramble Program ➢ Input TS Mode KR356H has 4 signal sources: Tuner 1-2, ASI, and IP. One BISS can be applied to descramble one channel input signal from the 4 signal sources. ‘Skip BISS’ means to skip the card which is used for FTA stream.
  • Page 22 KR356H DVB-S2 HD IRD User Manual Input TS Mode ► Skip BISS Tuner 1 Tuner 2 ➢ Descrambler Key/SK/Word Mode/Burned Key Users need to input keys to descramble programs as per the BISS scrambling side which usually is DVB-S/S2 modulator.
  • Page 23 KR356H DVB-S2 HD IRD User Manual 3.2.5 TS Config Users can press ENTER key to enter ‘TS Config’ to configure the parameters of TS output through ASI. TS Config TS output mode TS output bit rate ASI output select TSID ONID TS output mode: Enter this menu to select a TS output mode.
  • Page 24 ON ID: Users can set ON ID (original network ID) in this menu. ON ID 00001 3.2.6 Decoder Users can press ENTER key to enter ‘Decoder’ to set the video to be decoded. KR356H IRD supports one channel program to output at various interfaces at the same time (HDMI/SDI/CVBS/YPbPr). Decoder To set video/audio ►Video Format...
  • Page 25 KR356H DVB-S2 HD IRD User Manual 3.2.7 IP Stream KR356H supports 1MPTS and 8 SPTS over IP (UDP, RTP/RTSP) output. Users can set the IP out parameters in this menu. IP Stream Service IP To configure the general Subnet Mask...
  • Page 26 KR356H DVB-S2 HD IRD User Manual Web NMS Port 00080 Reset Password? 3.2.9 System Users can set the system parameters in this menu. Enter ‘System’ submenus to separately set corresponding parameters. System Save Config Load Saved CFG Factory Reset LCD Time-out...
  • Page 27 KR356H DVB-S2 HD IRD User Manual Choose lock Lock Keyboard? keyboard, then the keyboard will be locked and cannot be applicable. It is required to User can view the serial number xxxxxxxxxxxxxxxxxxxx input the password to unlock of this device. It is read-only xxxxxxxxxxxxxxxxxxxxx the key board.

  • Page 28: Chapter 4 Web-Based Nms Management

    KR356H DVB-S2 HD IRD User Manual Chapter 4 Web-based NMS Management User not only can use front buttons for setting configuration, but also can control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device IP address;...
  • Page 29 KR356H DVB-S2 HD IRD User Manual Language shift area System informatio Input information of the two satellite signals, ASI and IP stream. Output information of the TS and decoded program. User can click any item here to enter Figure-2 the corresponding interface to check information or set the parameters.
  • Page 30 Figure-5 Parameters → CI Card: KR356H supports 2 CI cards (Card A & Card B) to descramble programs from either encrypted RF, ASI or IP. Users can click and enter ‘CI Card’ to configure the 2 cards respectively. (Figure-6)
  • Page 31 NOTE! ➢ Input TS Mode KR356H has 4 signal sources: Tuner 1, Tuner 2, ASI, and IP. One CI card can be applied to descramble one channel input signal from the 4 signal sources. ‘Skip CI card’ means to skip the card which is used for FTA stream.
  • Page 32 From the menu on left side of the webpage, clicking “BISS”, it displays the interface where users can configure 2 BISS and descramble the input channels. (Figure-8) BISS Selection Area Figure-8 Input TS Mode： KR356H has 4 signal sources: Tuner 1-2, ASI, and IP. One BISS tag can be applied to 32 / 43...
  • Page 33 KR356H DVB-S2 HD IRD User Manual descramble one channel input signal from the 4 signal sources. ‘Skip BISS’ means not to involve BISS function and it is used for FTA stream. Items showing below are working as per the keys or codes set in the BISS scrambling side (DVB-S/S2 modulators).
  • Page 34 KR356H DVB-S2 HD IRD User Manual Number before slash indicates the programs which have been descrambled. Number behind slash indicates the whole programs from the selected channel. Users can also read the program information by clicking ‘+’ symbol. Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface...
  • Page 35 KR356H DVB-S2 HD IRD User Manual Parameters → Mux: Click “Mux” and it displays the interface where users can multiplex programs and modify program info. The selected programs will output in TS form through IP and ASI ports. (Figure-11) Output Area...
  • Page 36 KR356H DVB-S2 HD IRD User Manual ‘output’ area. For example, when clicking , it triggers a dialog box (Figure 12) where users can input new information. This device supports 8 SPTS IP out. Users can enable program output via SPTS here.
  • Page 37 Figure-14 NOTE: ⚫ KR356H supports maximum 2 channels of analog stereo audios output simultaneously. ⚫ When the program users choose to decode and output has only one audio channel, users need to configure Primary Audio Chanel (‘Audio 1 Mode’ and ‘Audio 1 Select’) only.
  • Page 38 KR356H DVB-S2 HD IRD User Manual Figure-15 Parameters → Network: From the menu on left side of the webpage, clicking “Network”, it will display the screen as Figure-16 where to configure the network parameters for the device. 38 / 43...
  • Page 39 KR356H DVB-S2 HD IRD User Manual Use this IP to connect the device to PC for management. Figure-16 System → LCD/Keyboard: From the menu on left side of the webpage, clicking “LCD/Keyboard”, it will display the screen as Figure-17 where to control the device’s front panel.
  • Page 40 KR356H DVB-S2 HD IRD User Manual Figure-18 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it will display the screen as Figure-19 where to save or restore your configurations. Figure-19 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it will display the screen as Figure-18 where to backup or load your configurations.
  • Page 41 KR356H DVB-S2 HD IRD User Manual Figure-20 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-19 where to update firmware for the device. Figure-21 System → Reboot: From the menu on left side of the webpage, clicking “Reboot”, it will display the screen as Figure-22 where to restart the device manually.
  • Page 42 KR356H DVB-S2 HD IRD User Manual Figure-22 42 / 43...

  • Page 43: Chapter 5 Troubleshooting

    KR356H DVB-S2 HD IRD User Manual Chapter 5 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.
