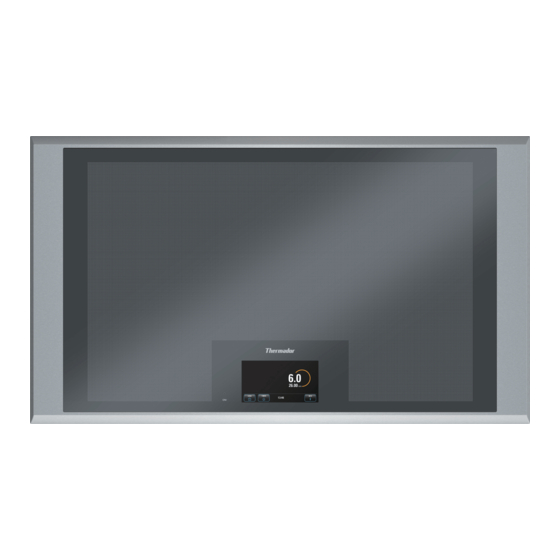

Thermador FREEDOM Series Dimension & Installation Manual

CIT36XKB
36-INCH FREEDOM
MASTERPIECE ® SERIES, BLACK WITH STAINLESS STEEL FRAME
Also Available:
CIT36XKBB - Black, Frameless
FEATURES & BENEFITS
- Largest fully usable cooking surface on the market
- 48 induction elements deliver more than 63% usable cooking
surface than the competition
- Place up to 4 pots or pans anywhere on the cooktop
surface in any configuration. If you need to move your pot
to another location, the cooktop will transfer all of your
programmed settings to the new position of the pan.
- Featuring the first full color touchscreen induction user
interface on the market, offering better control and faster
access to cooking settings
- One of the most powerful elements in its class with a
4,600 W PowerBoost ® lets you boil water faster than with
any other cooking technology

ACCESSORIES (OPTIONAL)

CHEFSPAN13
16" Round Skillet
TEPPAN1321
Griddle Style Teppanyaki
13" x 21"
TEPPAN1314
Griddle Style Teppanyaki
13" x 14"
THERMADOR EXCLUSIVE
Induction Cooktop
®
Page 1 of 3

GENERAL PROPERTIES

Controls

ELEMENT PERFORMANCE

Power of Full Surface Heating Element
Power of Full Surface Heating Element (In Boost) 4,600 W
Burners With Booster

COOKWARE SIZE (MAXIMUM 4 POTS)

Minimum Cookware Size*
Maximum Cookware Size*

TECHNICAL DETAILS

Watts (W)
Circuit Breaker (A)
Volts (V)
Frequency (Hz)
Plug Type
Conduit
Energy Source
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in)
Required Cutout Size (HxWxD) (in)
Minimum Distance From Counter Front (in)
Minimum Distance From Rear Wall (in)
Net Weight (lbs)

WARRANTY

Limited Warranty, Entire Appliance, Parts
and Labor
Limited warranty for glass ceramic surface /
electronic elements and switches; parts
* Cookware less than 3" will not be recognized. Theoretical maximum cookware size is
13" x 27". Cookware must have a flat bottom in order to utilize the full surface.
Touch Controls
3,600 W
All
3"x 3"
13"x 21"
7,200 W
40 A
208 / 240 V
50 / 60 Hz
No Plug
37" Flexible 3-Wire
Electric
3 / "+3 7 / " x 37" x
8 8
21 1 / "
4
3 7 / " x 34 3 / " x 20"
8 4
2 1 / "
2
2 3 / "
8
69 lbs
2 Year
3rd to 5th Year
11 / 15
