Page 1: Installation Guide
Installation Guide Revision 1.1 Last revised: August 29, 2018 Disclaimer: This document and its contents are not certified. - Page 2 Stratus 3i Installation Guide ©2018 Appareo Systems, LLC. All Rights Reserved. Stratus 3i Installation Guide. All content within is copyrighted by Appareo Systems, LLC, and may not be reprinted without permission. The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Appareo Systems, LLC.
-
Page 3: About Stratus 3I

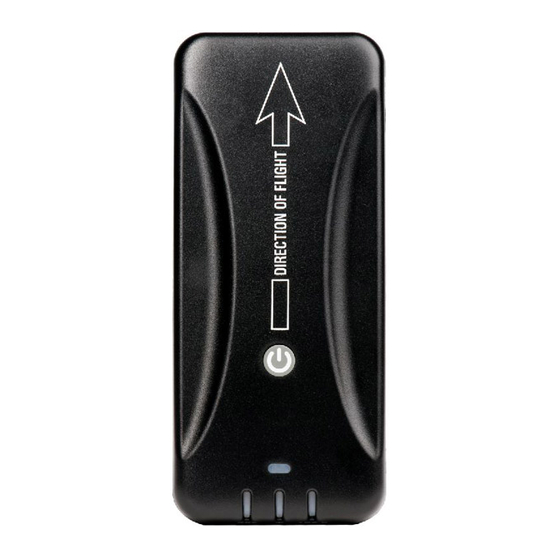

Stratus 3i Installation Guide About Stratus 3i Stratus 3i is a portable receiver that is wired to Stratus ES/ESG. It receives auxiliary power from the transponder and also receives the ADS-B and GPS signal from the transponder’s externally- mounted antennas. -
Page 4: Installing The Interface Cables
Stratus 3i RF interface cable into the ADS-B port of Stratus 3i. Secure cables as necessary. 6. Power on the aircraft to make sure that Stratus 3i is receiving power. Refer to the LED indicator statuses on Page 8. -
Page 5: Configuring The Transponder
3. Use the arrow keys to select UAT and 1090 ES. Press ENT. Turning on Stratus 3i Stratus 3i automatically turns on when it receives aircraft power. If Stratus 3i is moved after being turned on, you must re-calibrate it in Stratus Horizon Pro or ForeFlight Mobile. 600840-000052... -
Page 6: Stratus Es To Stratus 3I Wiring Diagram
Stratus 3i Installation Guide Stratus ES to Stratus 3i Wiring Diagram STRATUS ES 37-DSUB 9-DSUB D-SUB DESCRIPTION AIRCRAFT POWER 1 11-33 VDC AIRCRAFT POWER AUX +5V POWER AIRCRAFT POWER 2 AUX +5V POWER AUX +5V POWER AIRCRAFT GROUND 1 AIRCRAFT GROUND 2... -
Page 7: Stratus Esg To Stratus 3I Wiring Diagram
Stratus 3i Installation Guide Stratus ESG to Stratus 3i Wiring Diagram 600840-000052 Page 7 of 8... -
Page 8: Led Indicator Status
Stratus 3i Installation Guide LED Indicator Status Label LED Color LED Status Meaning Green Solid 3-D GPS lock achieved Yellow Flashing No GPS lock, searching for signal. Receiver is powered off. Green Flashing Receiver is powered on and operational. Power No power is being received;...
