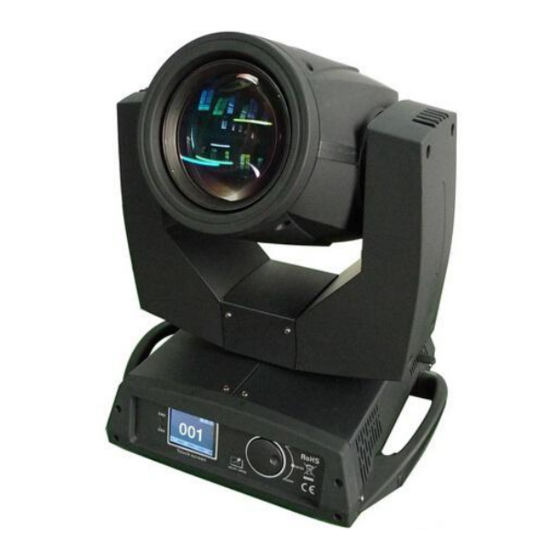

Summary of Contents for Homeilicht HM-M230

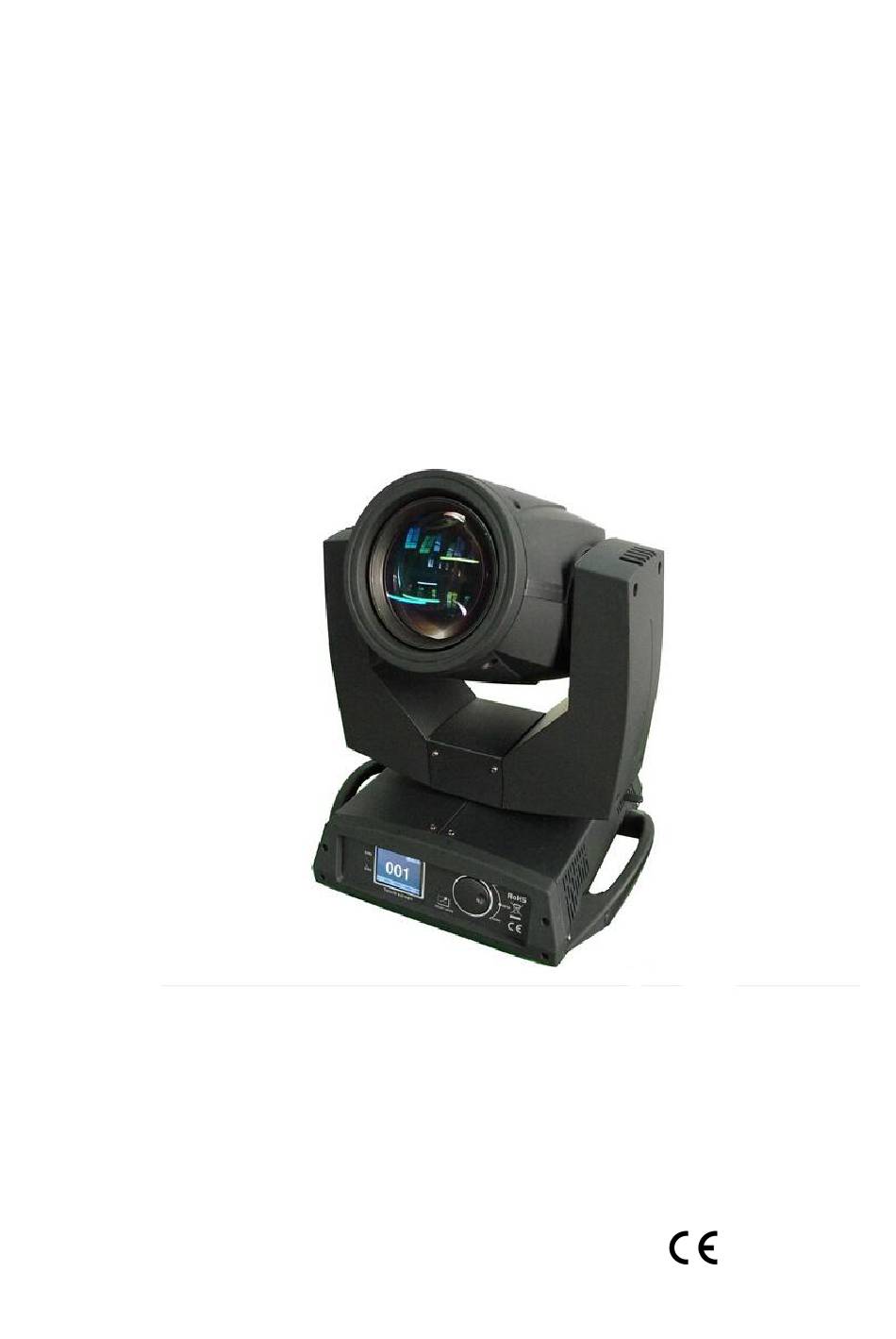

  • Page 1 230W Beam Moving Head （16/20CH/Silent） User Manual...

  • Page 2: Button Instruction

    Please read this user manual carefully, and check every instruction and operation requirements. - Make sure the installation, operation, transportation, warehouse inventory and others are made by the qualified mount guard staffs; - Observe whether there is damage of the products in transportation, please immediately contact with your suppliers, DON NOT use in electricity.

  • Page 3: Interface Instruction

    2. It is the same with 4 ~ 7 steps (can use the true buttons, also can use the touch button), no longer talk about them in details. 2. Interface Instruction 2.1.Main Interface The 3 top right buttons are used for language switching and screen rotation. The corresponding interface instruction of the 4 bottom buttons is as below.

  • Page 4: Information Interface

    Lamp on After power on reset directly, bulb doesn’t light up(need to use the menu or controller to manual light bulb) After power on, bubble light automatically, and to wait on the bulb light successfully, then reset. Default Click "OK" button, see the confirmation dialog box, click Settings "OK"...
  • Page 5 verify password. Option Instruction Touch Into the calibration interface, according to cross cursor  screen calibration indication to touch the corresponding position, if four position to receive the correct data, then complete calibration and keep calibration data. If calibration fail, this process will continue cycle down, can by press the "OK"...
  • Page 6 DIMMER-PRISM-FROST TIME GOBO TIME  COLOUR WHEEL - channel 1 EFFECT Remarks FAST ROTATION …… …… SLOW ROTATION BLUE + WHITE In order to facilitate the memory, color value is always a multiple of BLUE CTB 8000 + BLUE Color ratio can be adjusted, such CTB 8000 as: when numerical is 5, white CTO 190 + CTB 8000...
  • Page 7 GREEN AQUAMARINE + GREEN AQUAMARINE ORANGE + AQUAMARINE ORANGE RED + ORANGE WHITE + RED WHITE...
  • Page 8  STOP/STOBE - channel 2 EFFECT Remarks 252-255 OPEN Controlled dimmer channel 239-251 RANDOM FAST STROBE 226-238 RANDOM MEDIUM STROBE 213-225 RANDOM SLOW STROBE 208-212 OPEN Controlled dimmer channel FAST PULSATION …… …… SLOW PULSATION 104-107 OPEN Controlled dimmer channel FAST STROBE ……...
  • Page 9 EFFECT Remarks GOBO 17 SHAKE, FAST SPEED Every 5 values is corresponding to a …… …… gobo GOBO 17 SHAKE, SLOW SPEED GOBO 16 SHAKE, FAST SPEED …… …… GOBO 16 SHAKE, SLOW SPEED …… …… GOBO 2 SHAKE, FAST SPEED ……...
  • Page 10  PRISM INSERTION - channel 5 EFFECT Remarks 128-255 PRISM INSERTED 0-127 PRISM EXCLUDED  PRISM ROTATION - channel 6 EFFECT Remarks FAST ROTATION …… …… SLOW ROTATION 191-192 STOP SLOW ROTATION …… …… FAST ROTATION 0-127 POSITION  EFFECTS MOVEMENT - channel 7 (NOUSED) ...
  • Page 11  FUNCTION - channel 14 (NOUSED)  RESET - channel 15 EFFECT Remark 128-255 COMPLETE RESET Stay 5 seconds in corresponding area, then begin to reset. 77-127 PAN/TILT RESET 26-76 EFFECTS RESET 0-25 UNUSED RANGE  LAMP CONTROL- channel 16 EFFECT Remark 101-255 LAMP ON...
