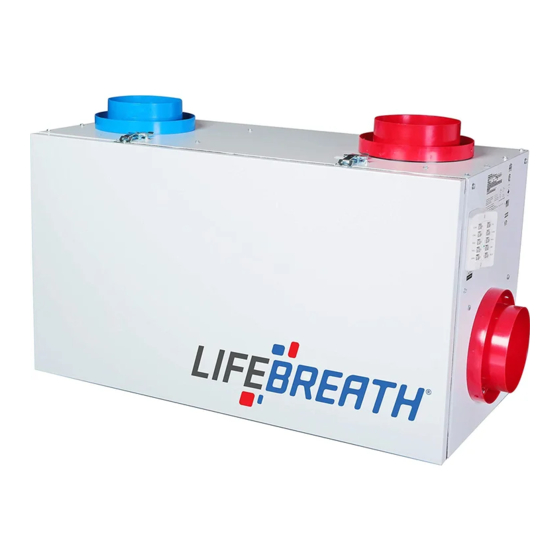

Lifebreath MAX SERIES Homeowner's Manual
  1. Manuals
  2. Brands
  3. Lifebreath Manuals
  4. Control Systems
  5. max series
  6. Homeowner's manual

Lifebreath MAX SERIES Homeowner's Manual

Hide thumbs Also See for MAX SERIES:

Advertisement

Table of Contents

See also: Installation Manual
MAX SERIES
HOMEOWNERS GUIDE
69-MAX-OWNERS 012616
511 McCormick Blvd.
General Info/Tech Support:
1 855. 247 4200
London, ON
Canada
Online:
N5W 4C8
www.lifebreath.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifebreath MAX SERIES

Summary of Contents for Lifebreath MAX SERIES

  • Page 1 MAX SERIES HOMEOWNERS GUIDE 69-MAX-OWNERS 012616 511 McCormick Blvd. General Info/Tech Support: 1 855. 247 4200 London, ON Canada Online: N5W 4C8 www.lifebreath.com...

  • Page 2: Table Of Contents

    Homeowner Information Dealer / Contractor Information Model___________________________________ Dealer_________________________________ Serial Number____________________________ Installer________________________________ Telephone/Contact_______________________ Installation Date_________________________ Register your HRV for warranty at www.lifebreath.com For any warranty information, please contact Airia Brands 511 McCormick Blvd. London ON N5W 4C8 T 1-855-247-4200 F 1-800-494-4185...

  • Page 3: Ventilation Variable Settings

    The modes of operation and speeds are used to adjust your indoor ventilation rate. Experiment with the ventilation levels in your home to evaluate the ideal amount of ventilation to suit your home and personal preferences. Your Lifebreath MAX Series HRV main control has 5 modes of operation and 5 speeds on each mode.

  • Page 4: How The Dehumidistat Works

    Your Lifebreath Digital Control has an adjustable Dehumidistat which can be set to achieve a further dehumidification effect from your HRV. High speed ventilation will be initiated upon exceeding the Dehumidistat set point regardless of the mode and speed of operation.

  • Page 5: Lifebreath Digital Control

    The Lifebreath Digital Control 99-DXPL02 (Included) The Lifebreath Digital Control offers advanced features to control your home's ventilation. Key Features : 5 speed fan setting  Instruction Card Standby setting (fan speed 0)  Electronic Dehumidistat  20/40/60 HIGH speed override button ...

  • Page 6: Timers And Repeater

    Timer will override the operational mode (regardless of the setting) and initiate HIGH fan speed Ventilation. Upon completion of the timer cycle, the HRV will return to your selected operational mode and fan speed setting. Lifebreath 20/40/60 Minute Timer 99-DET01 Initiates high speed ventilation for 20, 40 or 60 minutes.
  • Page 7 Timers (continued) Removable Lifebreath Wireless 20/40/60 Minute Timer Backplate 99-DET02 Initiates high speed ventilation for 20, 40 or 60 minutes. The 20/40/60 minute status lights indicate high speed 20/40/60 Minute operation. Status Lights Wireless Timers have an estimated range of 40' with no obstructions.
  • Page 8 Timers (continued) Lifebreath Wireless Repeater 99-RX02 The Wireless Repeater is used to extend range of the 99- DET02 Wireless Timers. The Repeater plugs directly into a 120V power outlet. The 99-RX02 wirelessly connects to the main control as well as the 99-DET02 Timers.

  • Page 9: Maintenance Routine

    Maintenance Routine 1. Inspect Exterior Hoods at Least Once a Month Make sure exhaust and fresh air supply hoods are not blocked or restricted by leaves, grass, or snow. In winter, it is especially important to make sure snow is not blocking the hoods or that frost has not built up on the wire mesh (bird screen).
  • Page 10 Maintenance Routine Continued 4. Motors — Maintenance Free 5. Drain (condensate) Line - Clean Once a Year Inspect drain line, drain spout and “P” trap for blockage, mold or kinks. Flush with warm soapy water and replace if worn, bent or unable to clean. 6.

  • Page 11: Troubleshooting

    Troubleshooting SOLUTION SYMPTOM CAUSE Poor airflows 1/4 in (6 mm) mesh on outside Clean exterior hoods or vents   hood is plugged Remove and clean filter  Filters plugged Remove and clean core   Core obstructed Check and open grilles ...

  • Page 12: Additional Information

    Additional information can be found at www.lifebreath.com. Warranty Lifebreath MAX Series Heat Recovery Ventilators carry a Lifetime Warranty on the heat recovery core and a 5 year replacement parts warranty. Register for your warranty: www.lifebreath.com or phone 1-855-247-4200 (toll free)
